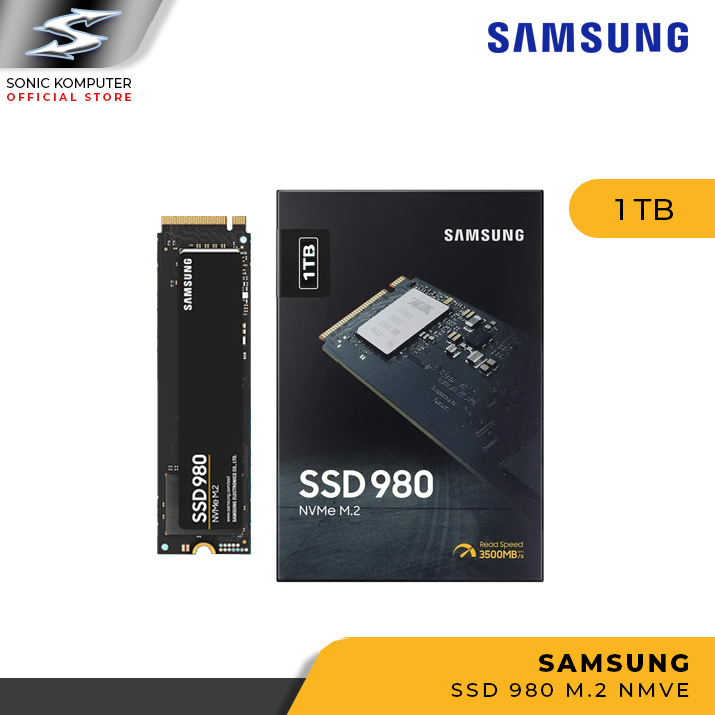

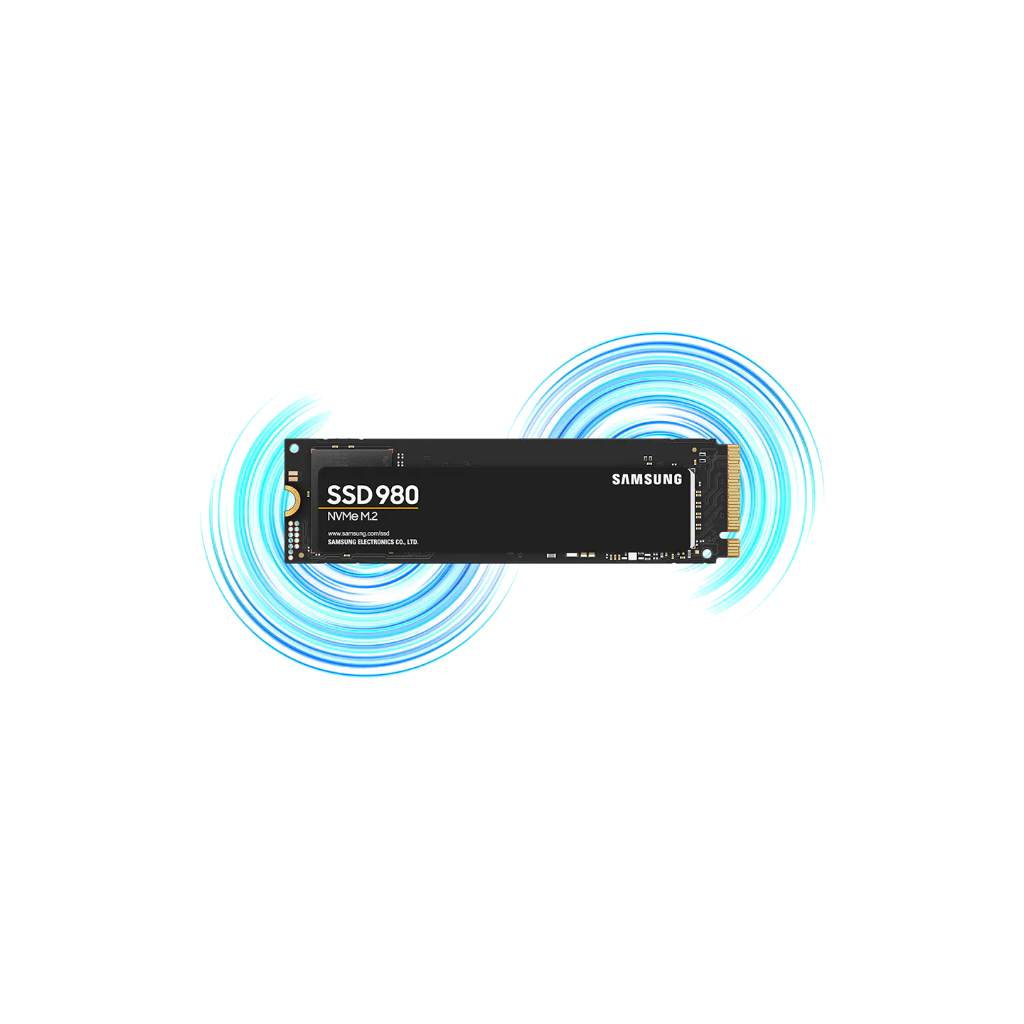

Samsung SSD 980 250GB 500GB 1TB M.2 PCIe NVMe 1.4 Gen3 M2 Internal SSD

Detail Samsung SSD 980 250GB 500GB 1TB M.2 PCIe NVMe 1.4 Gen3 M2 Internal SSD

Mohon konfirmasi terlebih dahulu sebelum melakukan pemesanan
Terima kasih

General Feature

APPLICATION = Client PCs
FORM FACTOR = M.2 (2280)
INTERFACE = PCIe® Gen 3.0 x4, NVMe™ 1.4
DIMENSION (WxHxD) = 80.15 x 22.15 x 2.38 (mm)
WEIGHT = Max 8.0 g
STORAGE MEMORY = Samsung V-NAND 3-bit MLC
CONTROLLER = Samsung In-House Controller
CACHE MEMORY = HMB(Host Memory Buffer)

Special Feature

TRIM SUPPORT = Supported
S.M.A.R.T SUPPORT = Supported
GC (GARBAGE COLLECTION) = Auto Garbage Collection Algorithm
ENCRYPTION SUPPORT =
• AES 256-bit Encryption (Class 0)
• TCG/Opal IEEE1667 (Encrypted drive)
WWN SUPPOR = Not Supported
DEVICE SLEEP MODE SUPPORT = Yes

Performance

SEQUENTIAL READ =
• 250GB: Up to 2,900 MB/s
• 500GB: Up to 3,100 MB/s
• 1TB: Up to 3,500 MB/s
SEQUENTIAL WRITE =
• 250GB: Up to 1,300 MB/s
• 500GB: Up to 2,600 MB/s
• 1TB: Up to 3,000 MB/s
RANDOM READ (4KB, QD32) =
• 250GB: Up to 230,000 IOPS
• 500GB: Up to 400,000 IOPS
• 1TB: Up to 500,000 IOPS
RANDOM WRITE (4KB, QD32) =
• 250GB: Up to 320,000 IOPS
• 500GB: Up to 470,000 IOPS
• 1TB: Up to 480,000 IOPS
RANDOM READ (4KB, QD1) =
• 250GB: Up to 17,000 IOPS
• 500GB: Up to 17,000 IOPS
• 1TB: Up to 17,000 IOPS
RANDOM WRITE (4KB, QD1) =
• 250GB: Up to 53,000 IOPS
• 500GB: Up to 54,000 IOPS
• 1TB: Up to 54,000 IOPS

Environment
AVERAGE POWER CONSUMPTION
(SYSTEM LEVEL)
• 250GB: Average 3.7 W Maximum 5.6 W (Burst mode)
• 500GB: Average 4.3 W Maximum 5.9 W (Burst mode)
• 1TB: Average 4.6 W Maximum 5.3 W (Burst mode)
POWER CONSUMPTION (IDLE) = Max. 45 mW
POWER CONSUMPTION (DEVICE SLEEP) = Max. 5 mW
ALLOWABLE VOLTAGE = 3.3 V ± 5 % Allowable voltage
RELIABILITY (MTBF) = 1.5 Million Hours Reliability
OPERATING TEMPERATURE = 0 - 70 ℃
SHOCK = 1,500 G & 0.5 ms (Half sine)

Gambar produk
