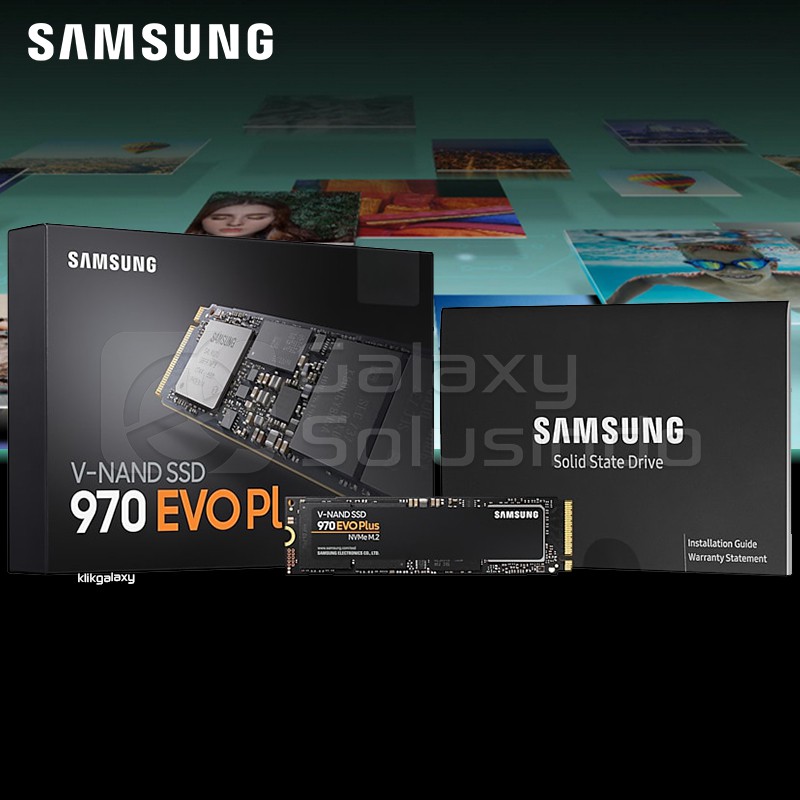

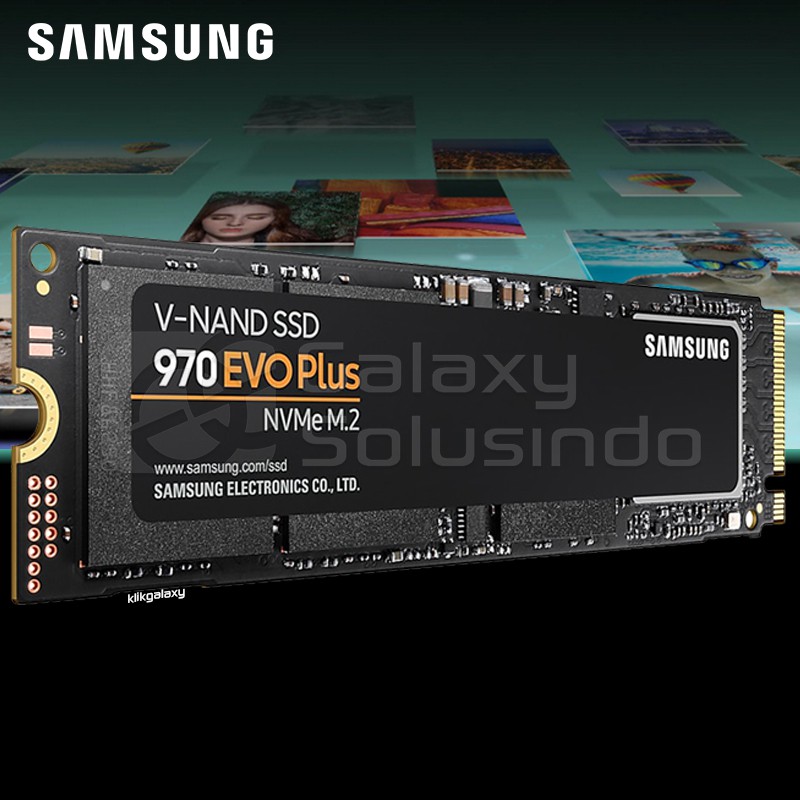

Samsung SSD 970 EVO PLUS NVMe M.2 1TB

Detail Samsung SSD 970 EVO PLUS NVMe M.2 1TB

SPECIFICATION:

Type

Product Type

NVMe SSD

Storage Type

Internal

Interface

PCIe Gen 3.0 x 4, NVMe 1.3

Read/Write Speeds

3,500/3,300 MB/s

Usage Application

Client PCs

Series

970 EVO Plus
Application

Consumer

Yes
Storage

Capacity

1TB
Key Features

Sequential Read Speed

Up to 3,500 MB/s * Performance may vary based on system hardware & configuration

Sequential Write Speed

Up to 3,300 MB/s * Performance may vary based on system hardware & configuration

Random Read Speed

Random Read (4KB, QD32): Up to 600,000 IOPS; Random Read (4KB, QD1): Up to 19,000 IOPS * Performance may vary based on system hardware & configuration

Random Write Speed

Random Write (4KB, QD32): Up to 550,000 IOPS; Random Write (4KB, QD1): Up to 60,000 IOPS * Performance may vary based on system hardware & configuration

Controller

Samsung Phoenix Controller

NAND Flash

Samsung V-NAND 3-bit MLC

Cache Memory

Samsung 1GB Low Power DDR4 SDRAM

Trim Support

Supported

AES Encryption

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

Security

AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)

S.M.A.R.T. Support

Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

WWN Support

Not supported

Device Sleep Mode Support

Yes

Temperature proof

Yes

NVMe

Yes

Gaming SSDs

Yes
General

Average Power Consumption (system level)

* Average: 6 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)

Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration

Voltage

3.3 V ± 5 % Allowable voltage

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)
Environmental Specs

Operating Temperature

0 - 70 ℃ Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)
Form Factor

Product

M.2 (2280)
Dimensions (W x H x D)

Product

3.16" x 0.87" x 0.09"
Weight

Product

0.3 oz.
Software

Management SW

Magician Software for SSD management
Warranty

Product

5-Year Limited Warranty or: 600 TBW Limited Warranty

Gambar produk
