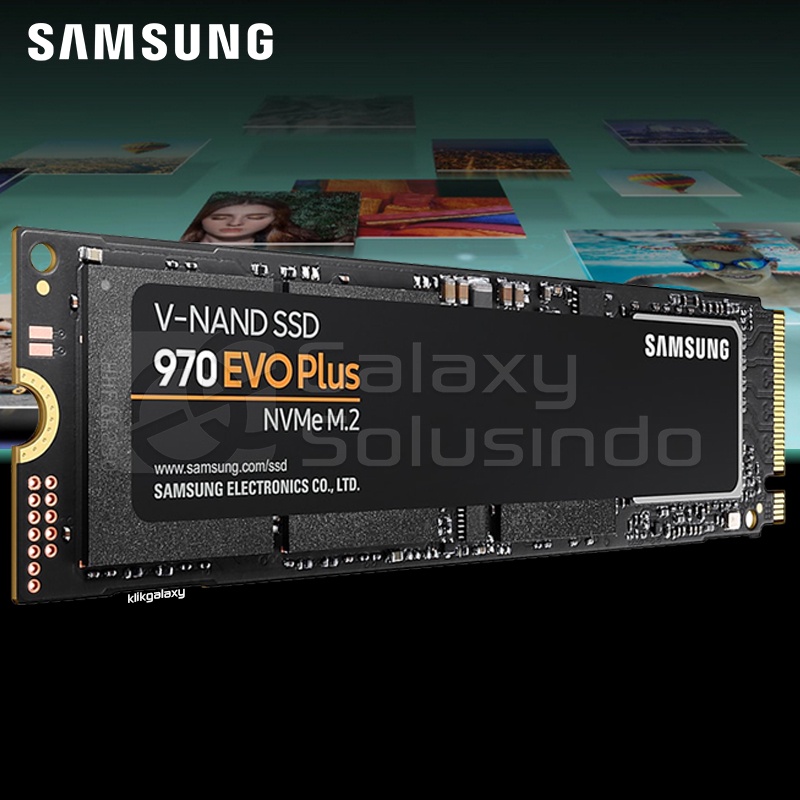

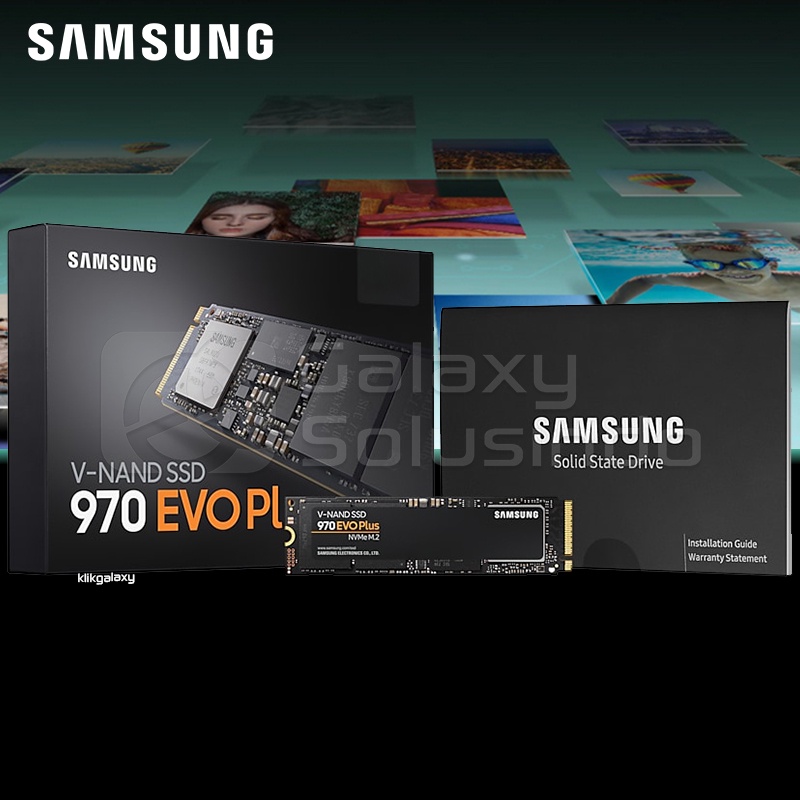

Samsung SSD 970 EVO PLUS NVMe M.2 500GB

Detail Samsung SSD 970 EVO PLUS NVMe M.2 500GB

SPECIFICATION:
General Feature
Application
Client PCs
Capacity
500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor
M.2 (2280)
Interface
PCIe Gen 3.0 x 4, NVMe 1.3
Dimension (WxHxD)
80.15 x 22.15 x 2.38 (mm)
Weight
Max 8.0 g Weight
Storage Memory
Samsung V-NAND 3-bit MLC
Controller
Samsung Phoenix Controller
Cache Memory
Samsung 512MB Low Power DDR4 SDRAM
Special Feature
TRIM Support
Supported
S.M.A.R.T Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support
Not supported
Device Sleep Mode Support
Yes

Performance
Sequential Read
Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
Sequential Write
Up to 2,300 MB/s * Performance may vary based on system hardware & configuration
Random Read (4KB, QD32)
Up to 250,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD32)
Up to 550,000 IOPS * Performance may vary based on system hardware & configuration
Random Read (4KB, QD1)
Up to 17,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD1)
Up to 60,000 IOPS * Performance may vary based on system hardware & configuration

Environment
Average Power Consumption (system level)
* Average: 5 W * Maximum: 8 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage
3.3 V ± 5 % Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Operating Temperature
0 - 70 ℃ Operating Temperature
Shock
1,500 G & 0.5 ms (Half sine)

Accessories
Installation Kit
Not Available

Software
Management SW
Magician Software for SSD management

Warranty
5-Year Limited Warrantyor 150 TBW Limited Warranty
