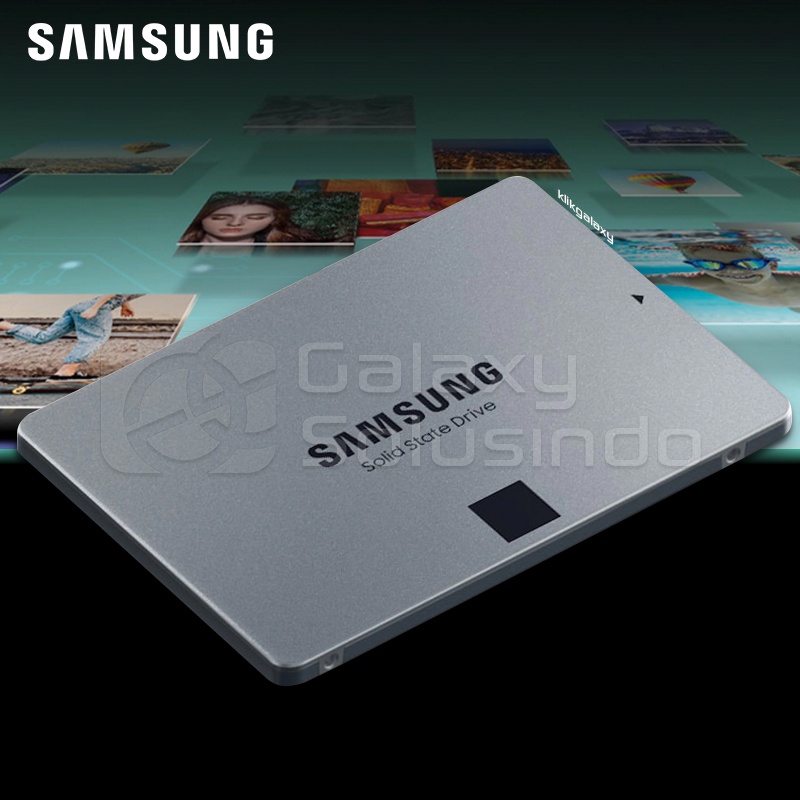

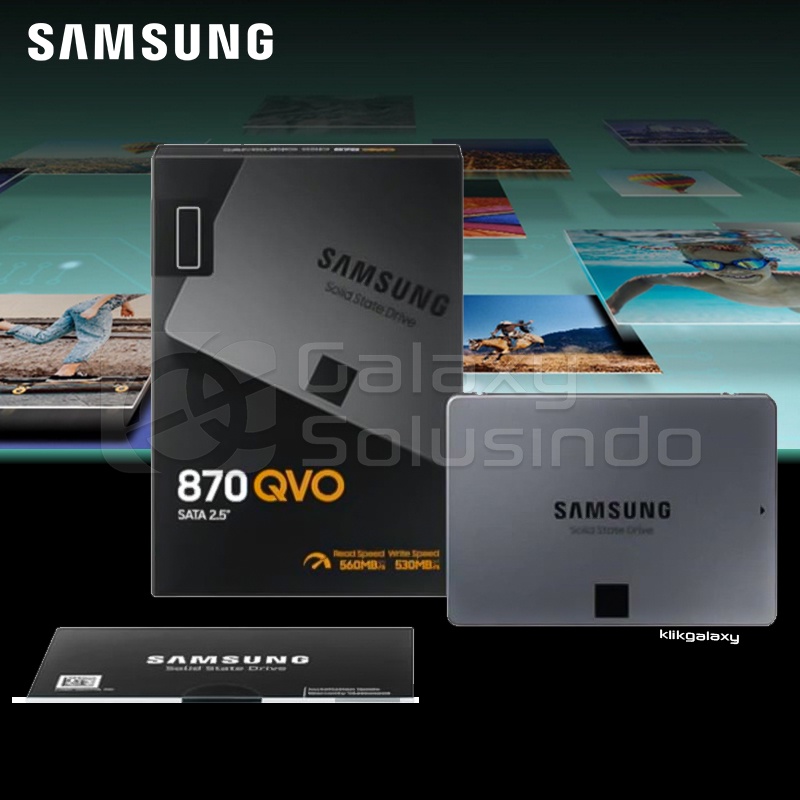

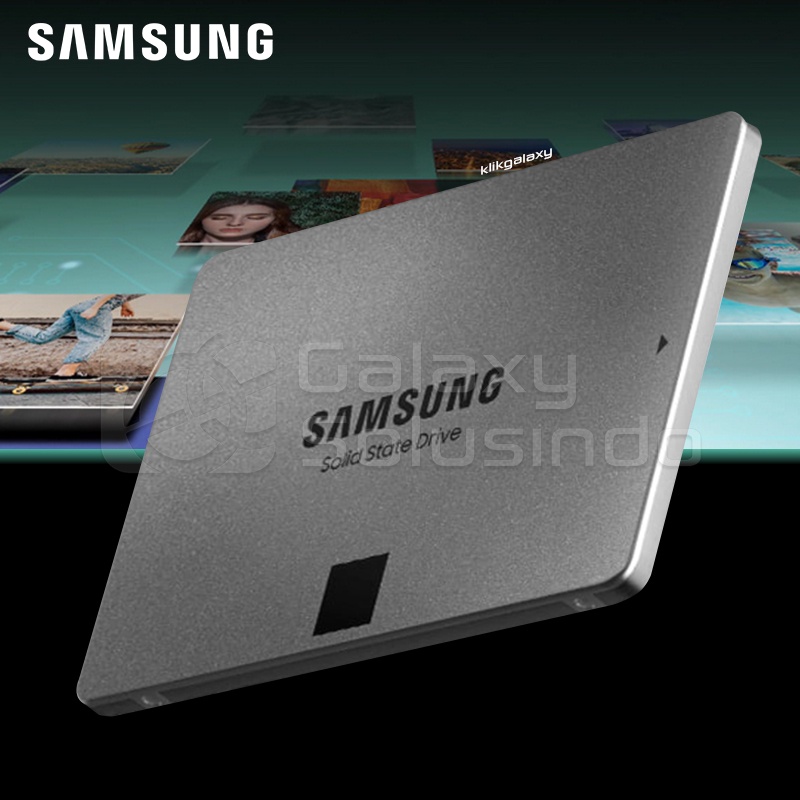

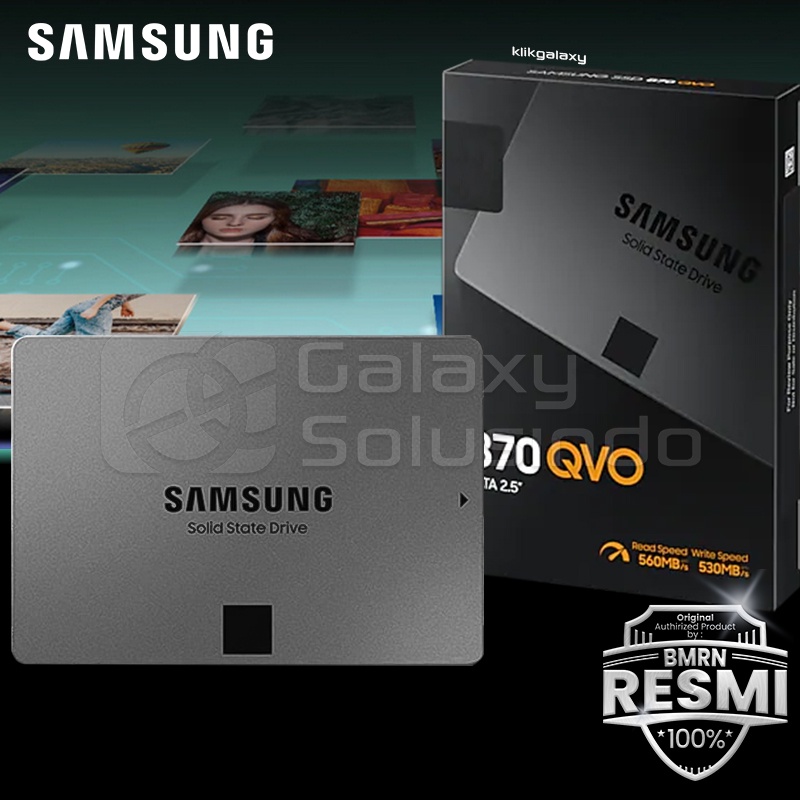

Samsung SSD 870 QVO 2TB

Detail Samsung SSD 870 QVO 2TB

SPECIFICATION:
Model Code (Capacity)1)

MZ 77Q2T0 (2TB)

General Feature

Application

Client PCs
FORM FACTOR

2.5 inch
INTERFACE

SATA 6 Gbps Interface
(compatible with SATA 3 Gbps & 1.5 Gbps interfaces)
DIMENSION (WxHxD)

100 X 69.85 X 6.8 (mm)

WEIGHT
2TB: Apporx. 46.0 g
STORAGE MEMORY

Samsung V-NAND 4bit MLC
CONTROLLER

Samsung MKX Controller

CACHE MEMORY
2TB: Samsung 2GB Low Power DDR4 SDRAM

Special Feature

TRIM Support

TRIM Supported
S.M.A.R.T Support

S.M.A.R.T Supported
GC (GARBAGE COLLECTION)

Auto Garbage Collection Algorithm
ENCRYPTION SUPPORT

AES 256-bit Full Disk Encryption,
TCG/Opal V2.0,
Encrypted Drive (IEEE1667)
WWN SUPPORT

World Wide Name supported
DEVICE SLEEP MODE SUPPORT

Yes

Performance2)

SEQUENTIAL READ

Up to 560 MB/s
SEQUENTIAL WRITE3)

Up to 530 MB/s
RANDOM READ (4KB, QD32)4)

Up to 98,000 IOPS
RANDOM WRITE (4KB, QD32)4)

Up to 88,000 IOPS
RANDOM READ (4KB, QD1)5)

Up to 11,000 IOPS
RANDOM WRITE (4KB, QD1)5)

Up to 35,000 IOPS

Environment

AVERAGE POWER CONSUMPTION (Active)6)
2TB: 2.1 W / 3.0 W (Read/Write)

POWER CONSUMPTION (IDLE)6)
2TB: 30 mW

POWER CONSUMPTION (DEVICE SLEEP)3)
2TB: 4 mW
ALLOWABLE VOLTAGE

5V ± 5% Allowable voltage
Reliability (MTBF)

1.5 Million Hours Reliability
OPERATING TEMPERATURE

0°C to 70°C
SHOCK
1,500 G & 0.5 ms (Half sine)

Accessories
INSTALLATION KIT
N/A

Warranty7)
MZ 77Q2T0 (2 TB)
3 Year or 720 TBW8)

Gambar produk
