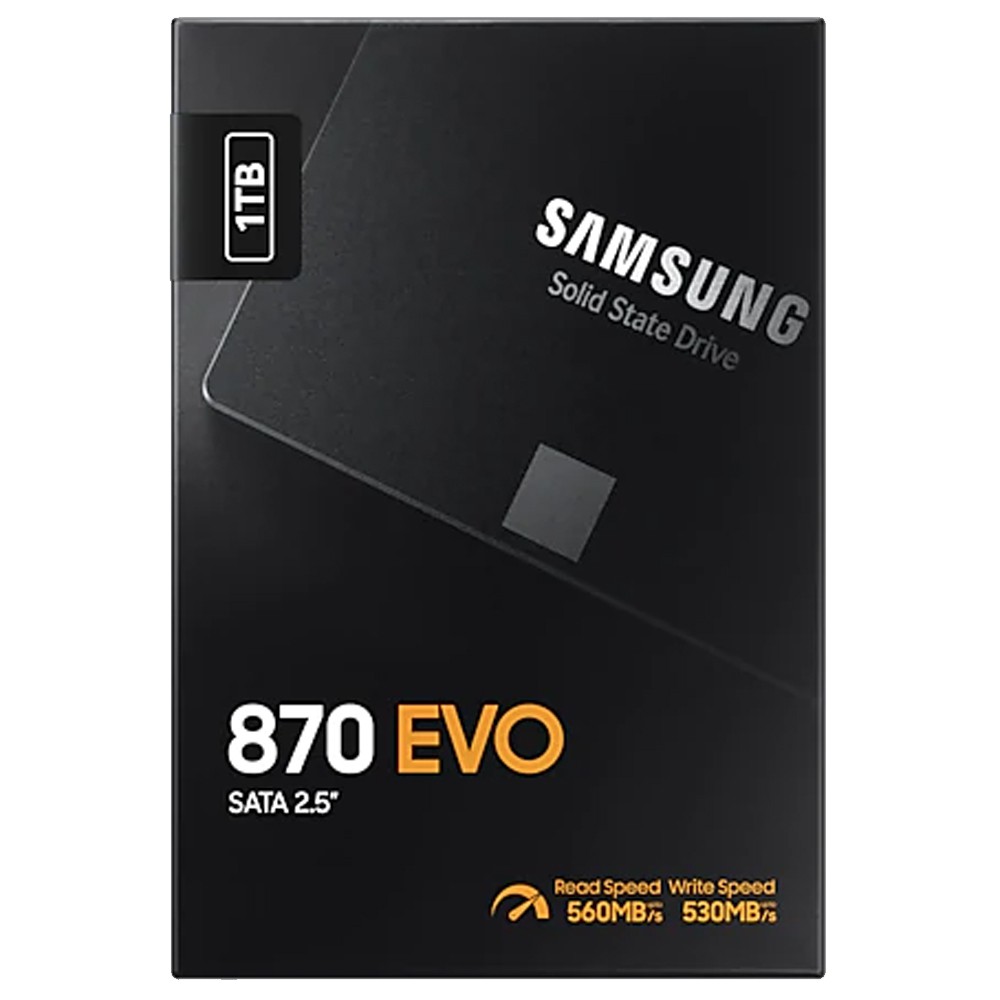

Samsung SSD 870 EVO 1TB

Detail Samsung SSD 870 EVO 1TB

SPECIFICATIONS

Form Factor
2.5 inch

Capacity
1TB

Sequential Read Speed
Up to 560 MB/s

Sequential Write Speed
Up to 530 MB/s

Model Code (Capacity)1)

MZ-77E1T0 (1,000GB)

General Feature

Application

Client PCs
FORM FACTOR

2.5 inch
INTERFACE

SATA 6 Gb/s Interface,
compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
DIMENSION (WxHxD)

100 X 69.85 X 6.8 (mm)
WEIGHT


1TB: Apporx. 45.0g
STORAGE MEMORY

Samsung V-NAND 3bit MLC
CONTROLLER

Samsung MKX Controller
CACHE MEMORY


Samsung 1 GB Low Power DDR4 SDRAM (1,000GB)

Special Feature

TRIM Support

Yes
S.M.A.R.T Support

Yes
GC (GARBAGE COLLECTION)

Auto Garbage Collection Algorithm
ENCRYPTION SUPPORT

AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
WWN SUPPORT

World Wide Name supported
DEVICE SLEEP MODE SUPPORT

Yes

Performance

SEQUENTIAL READ

Up to 560 MB/s
SEQUENTIAL WRITE

Up to 530 MB/s
RANDOM READ (4KB, QD32)

Up to 98,000 IOPS
RANDOM WRITE (4KB, QD32)

Up to 88,000 IOPS
RANDOM READ (4KB, QD1)

Up to 13,000 IOPS
RANDOM WRITE (4KB, QD1)

Up to 36,000 IOPS

Environment

AVERAGE POWER CONSUMPTION
(System Level)


1,000GB: Average: 2.5 W Maximum: 4.0 W (Burst mode)
POWER CONSUMPTION (IDLE)


1TB: Max. 30 mW
ALLOWABLE VOLTAGE

5V ± 5% Allowable voltage
RELIABILITY (MTBF)

1.5 Million Hours Reliability
OPERATING TEMPERATURE

0 - 70 ℃
Shock

1,500 G & 0.5 ms (Half sine)

Accessories

INSTALLATION KIT

N/A

Software

INSTALLATION KIT

Magician Software for SSD management

Warranty

MZ-77E1T0 (1,000GB)

5 Years or 600 TBW
