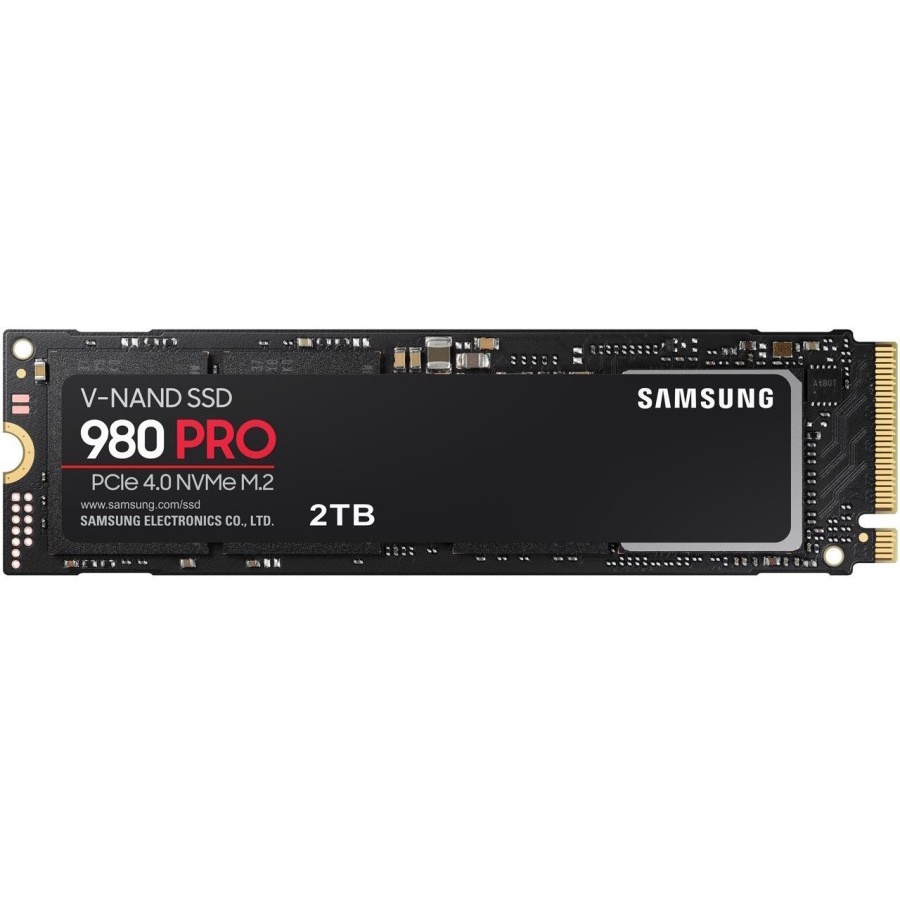

Samsung 980 PRO SSD 2TB NVMe M.2 2280 PCIe Gen4.0

Detail Samsung 980 PRO SSD 2TB NVMe M.2 2280 PCIe Gen4.0

Samsung SSD 980 PRO 2TB PCle 4.0 NVMe M.2 2280
Specification:
Capacity : 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor : M.2 (2280)
Interface : PCIe Gen 4.0 x4, NVMe 1.3c
Dimension (Pack: WxHxD) : 80.15 x 22.15 x 2.38 (mm)
Weight : Max 9.0 g Weight
Storage Memory : Samsung V-NAND 3-bit MLC
Controller : Samsung in-house controller
Cache Memory : Samsung 2GB Low Power DDR4 SDRAM
TRIM SupporT : Supported
S.M.A.R.T Support : Supported
GC (Garbage Collection) : Auto Garbage Collection Algorithm
Encryption Support : AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support : Not supported
Device Sleep Mode Support : Yes

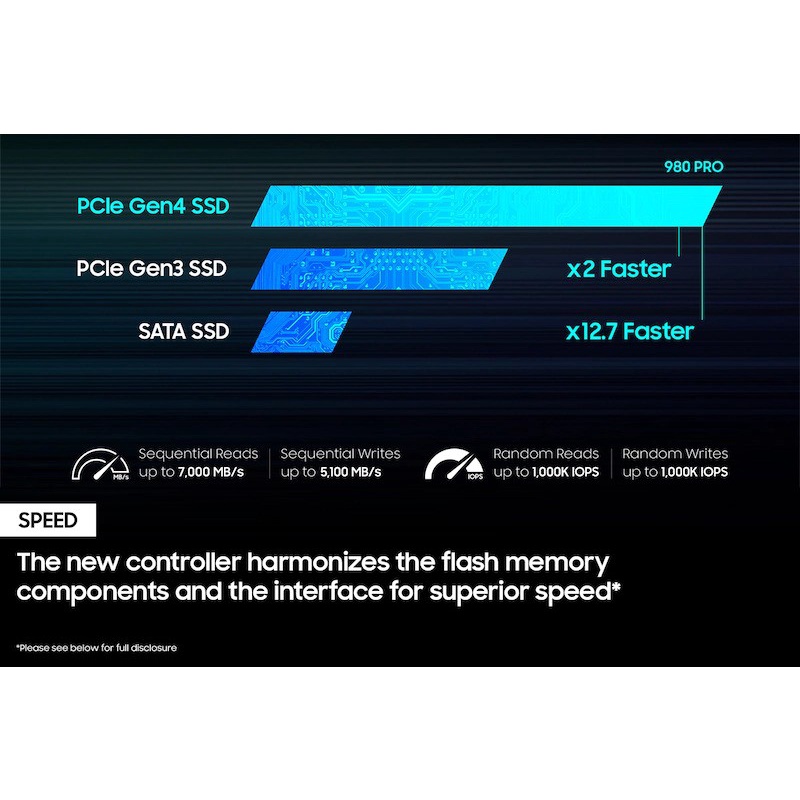

Sequential Read : Up to 7,000 MB/s * Performance may vary based on system hardware & configuration
Sequential Write : Up to 5,100 MB/s * Performance may vary based on system hardware & configuration
Random Read (4KB, QD32) : Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD32) : Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration
Random Read (4KB, QD1) : Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD1) : Up to 60,000 IOPS * Performance may vary based on system hardware & configuration
Average Power Consumption (system level)
*Average: 6.1 W*Maximum: 7.2 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
"Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage : 3.3 V ± 5 % Allowable voltage
Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)
Operating Temperature : 0 - 70 ℃ Operating Temperature
Shock : 1,500 G & 0.5 ms (Half sine)
Installation Kit : Not Available
Management SW : Magician Software for SSD management
