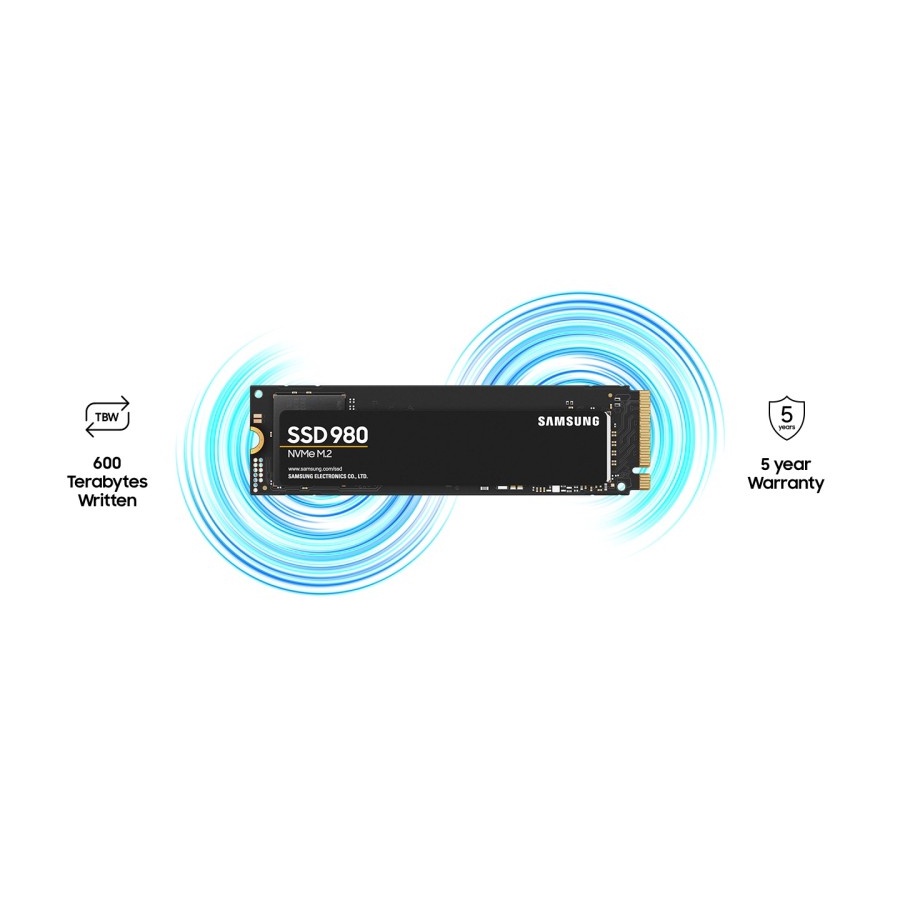

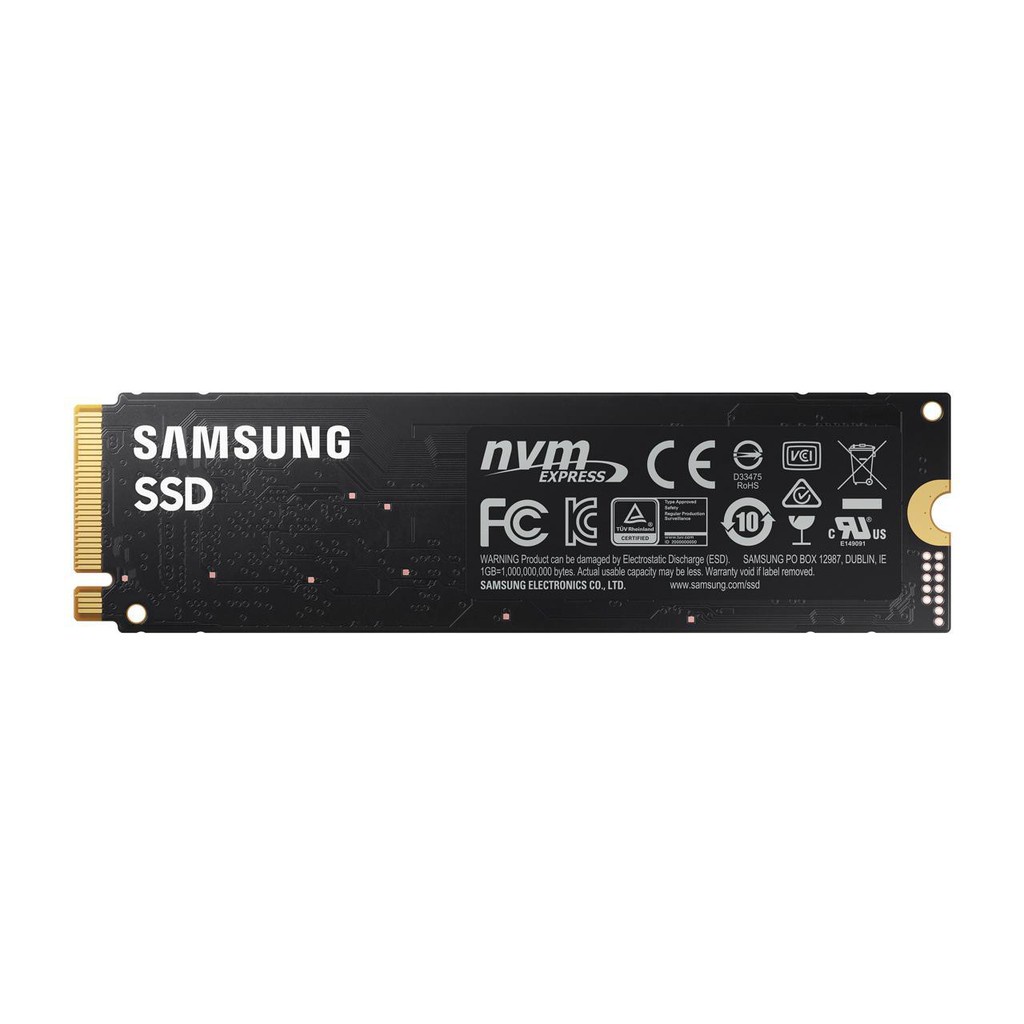

Detail Samsung 980 250GB PCIE 3.0 M.2 NVMe Gen 3 x4 SSD
Specifications :
Category : Samsung 980 NVMe SSD
Capacity : 250GB / 500GB / 1TB
Form Factor : Single-Sided M.2 2280
Interface : PCIe 3.0 x4, NVMe 1.4
Controller : Samsung Pablo
DRAM : None
NAND Flash : Samsung 128L 512Gb TLC
Sequential Read : 2900 MB/s (250GB), 3100 MB/s (500GB), 3500 MB/s (1TB)
Sequential Write : 1300 MB/s (250GB), 2600 MB/s (500GB), 3000 MB/s (1TB)
Max SLC Cache Size : 45 GB (250GB), 122 GB (500GB), 160 GB (1TB)
Random Read
IOPS : QD1 17k (250GB/500GB/1TB)
QD32T16 : 230k ( 250GB) , 400k(500GB), 500k (1tB)
Random Write
IOPS : QD1 53k (250GB), 54k ( 500GB / 1TB)
QD32T16 : 320k (250GB), 470k (500GB), 480k (500GB)
Power Read : 3.7 W (250GB), 4.3 W (500GB), 4.5 W (1TB)
Power Write : 3.2 W (250GB), 4.2 W (500GB), 4.6 W (1TB)
Power Idle : 45 mW
Power Idle (L1.2) : 5 mW
Write Endurance :
150 TBW, 0.3 DWPD (250GB)
300 TBW, 0.3 DWPD (500GB)
600 TBW, 0.3 DWPD (1TB)
Management Software : Samsung Magician
Data Encryption : AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
Warranty : 5 years Limited Warranty
