Saklar Tombol Tekan Momentary LED 12mm 3A / 220V DC untuk Perahu / Mobil

Elektronik > Kelistrikan > Saklar > Saklar Tombol Tekan Momentary LED 12mm 3A / 220V DC untuk Perahu / Mobil
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Saklar Tombol Tekan Momentary LED 12mm 3A / 220V DC untuk Perahu / Mobil

Features:
Great for Ignition Starter, Relay, Horn Button Switch, Critical Lights, Chassis Lamp, Fog Lamps, Door Switch, PC Power Switch or any circuit controls on over 500,000 cycles.
Mounting Hole Size: Φ12mm
Switch Rating: 2A/36VDC
Switch Combination : 1NO1NC
Operation Type: Momentary/ Resetable [Push & Hold ON, Release OFF]
Ring LED can be on all the time or only when switch is on which depends on how you wire it.
High quality metal material & IP67 waterproof protection can be used in wet or dusty enviroment

Specification
Switch Combination : 1NO1NC
Operation Type: Momentary/ Resetable [Push & Hold ON, Release OFF]
Head Shape: Flat
Enclosure Material: Nickel Plated Brass/ Stainless Steel
Lamp Type: Ring Illuminated

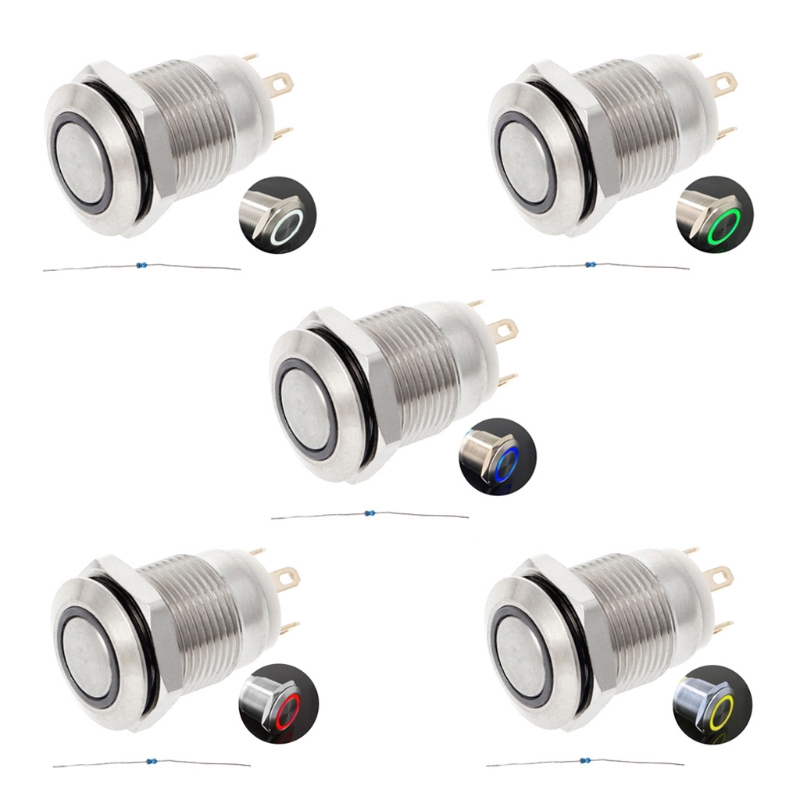

LED Color: White/Blue/Green/Red/Yellow
Switch Rating: 3A/220V DC
LED Voltage: 3V
Protection Level: IP67

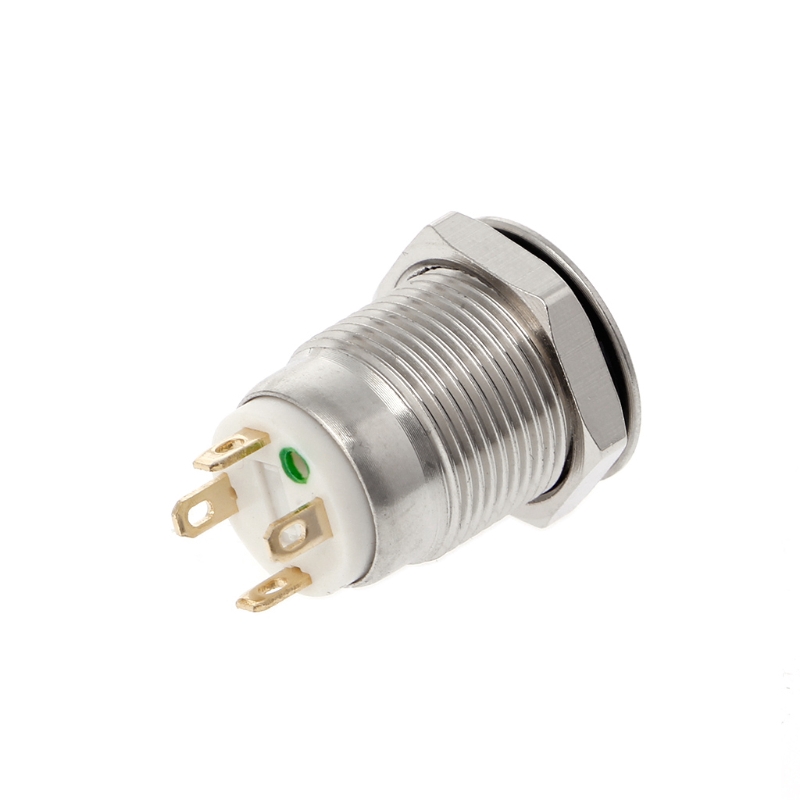

Pins: 4
Operation Pressure: about 4N
Mechanical Life: 500,000 cycles
LED Life: 40,000 hours
Mounting Hole Size: Φ12mm

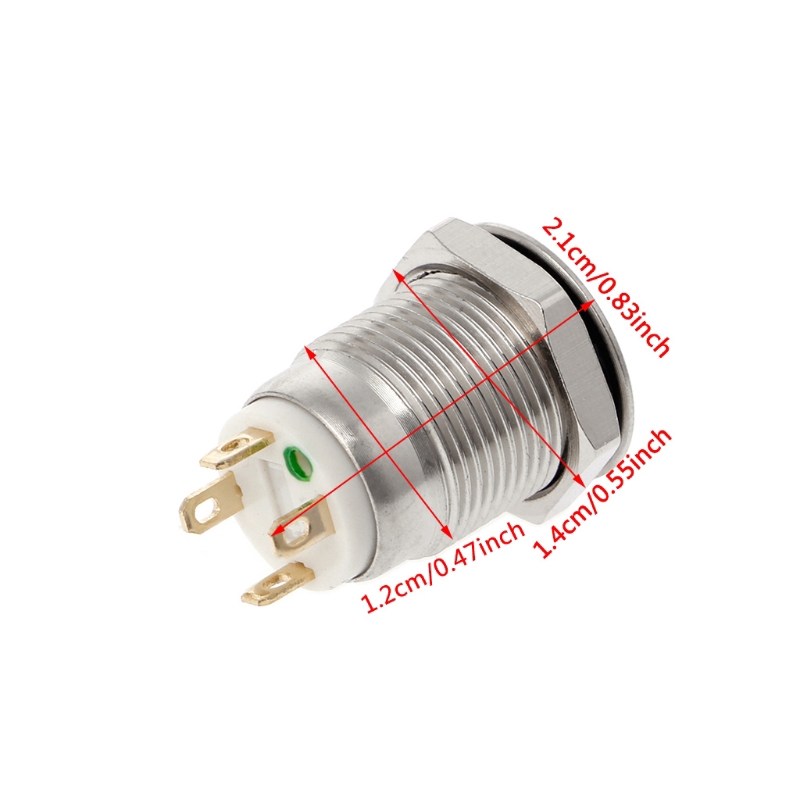

Overall Size: 2.1x1.4/0.83x0.55inch
Quantity: 1 Pc
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Contents:
1 Pc x Momentary Push Button Switch
#12mm #LED #illuminated #Metal #Momentary #Push #Button #Switch #Boat #Car #3A/220V #DC
