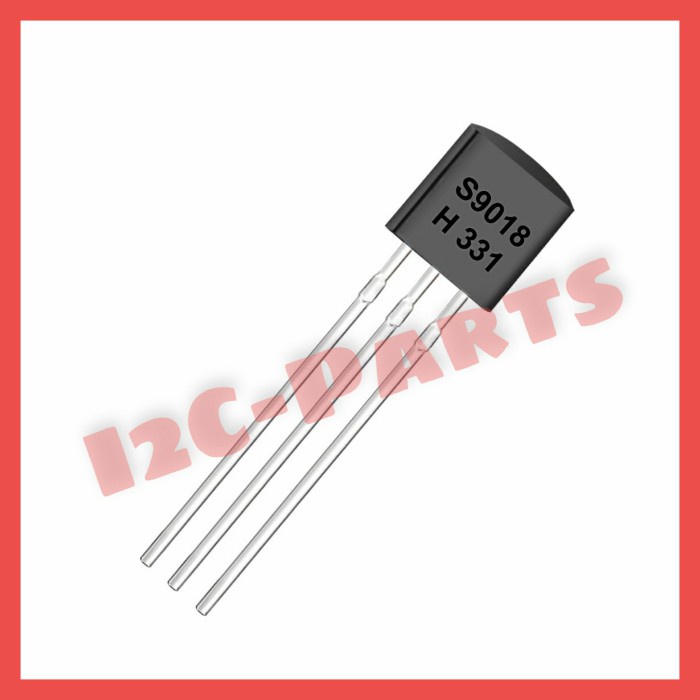

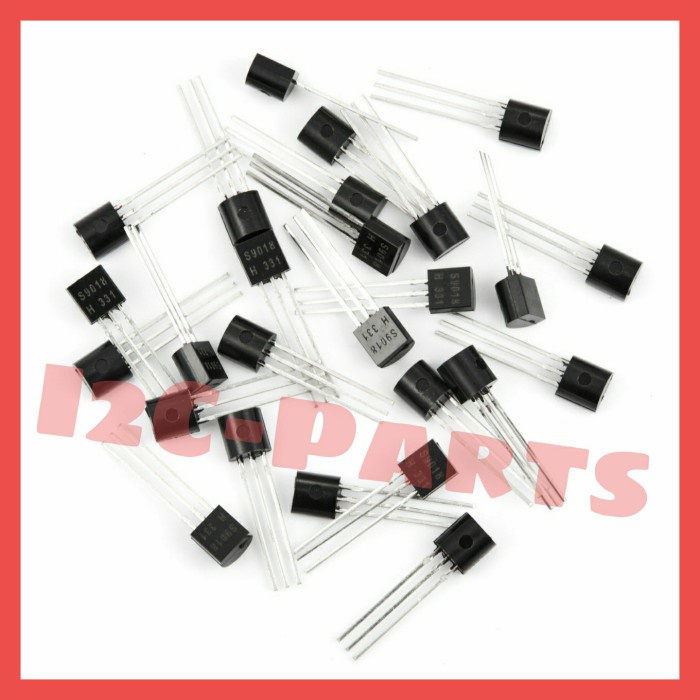

Detail S9018 NPN 9018 TO-92 Epitaxial Silicon Planar Transistor HCGB

Transistor NPN Seri S9018
Transistor Power Amplifier frekuensi tinggi (IF / FM / AM Gain Amplifier)
AM/FM Amplifier, Local Oscillator of
FM/VHF Tuner
High Current Gain Bandwidth Product fT=1.1 GHz (Typ)

Spesification :
BVCBO Collector-Base Breakdown Voltage IC =100A, IE =0 30 V
BVCEO Collector-Emitter Breakdown Voltage IC =1.0mA, IB =0 15 V
BVEBO Emitter-Base Breakdown Voltage IE =100A, IC =0 5 V
ICBO Collector Cut-off Current VCB =12V, IE =0 50 nA
hFE Emitter Cut-off Current VCE =5V, IC =1.0mA 28 100 198
VCE (sat) Collector-Emitter Saturation Voltage IC =10mA, IB =1mA 0.5 V
Cob Output Capacitance VCB =10V, IE =0 || f=1MHz || 1.3 1.7 pF
fT Current Gain Bandwidth Product VCE =5V, IC =5mA 700 1100 MHz

Package : TO-92
1.Emitor (E)
2.Basis (B)
3.Colector (C)
