Ruijie RG-RAP6260(G) AX1800 Wi-Fi 6 Dual Band Gigabit Outdoor include Adaptor POE Original RUijie

Detail Ruijie RG-RAP6260(G) AX1800 Wi-Fi 6 Dual Band Gigabit Outdoor include Adaptor POE Original RUijie

Ruijie RG-RAP6260(G) AX1800 Wi-Fi 6 Dual Band Gigabit Outdoor include Adaptor POE Original RUijie

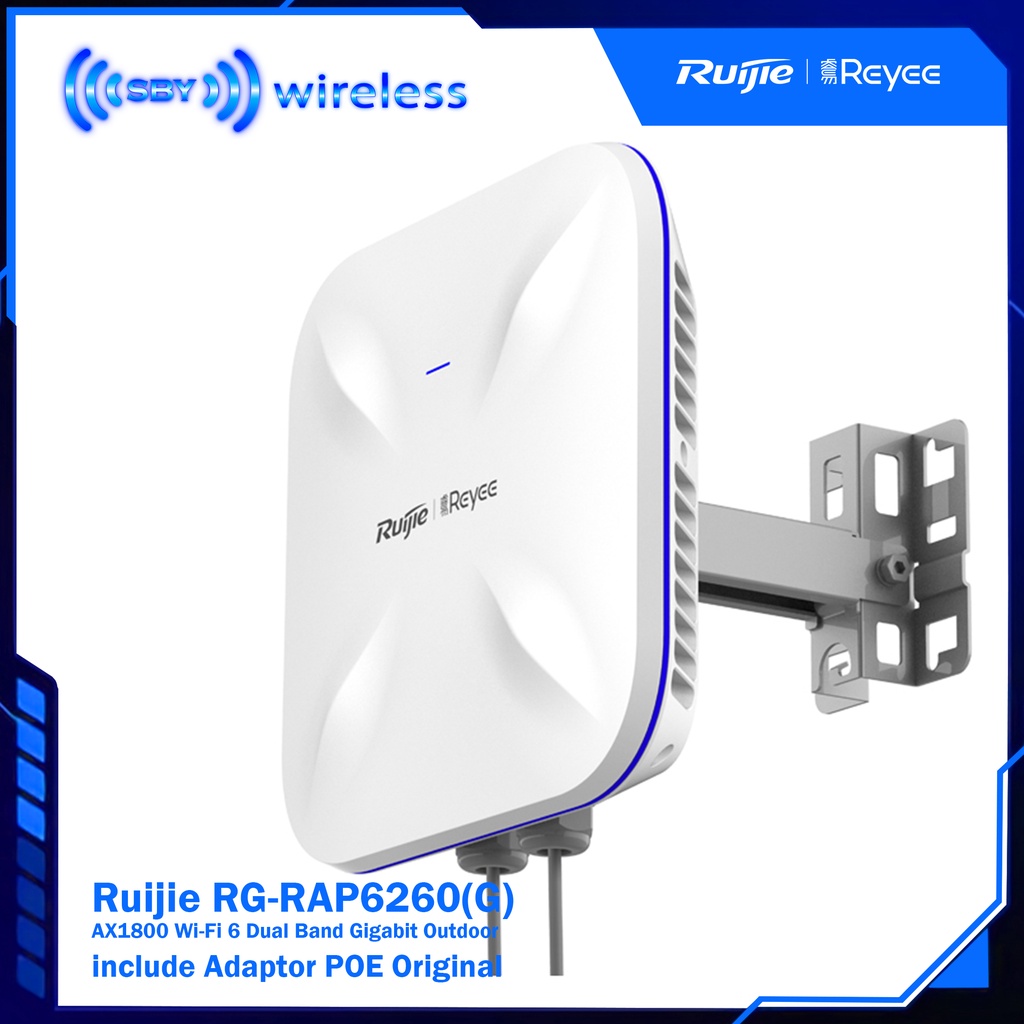

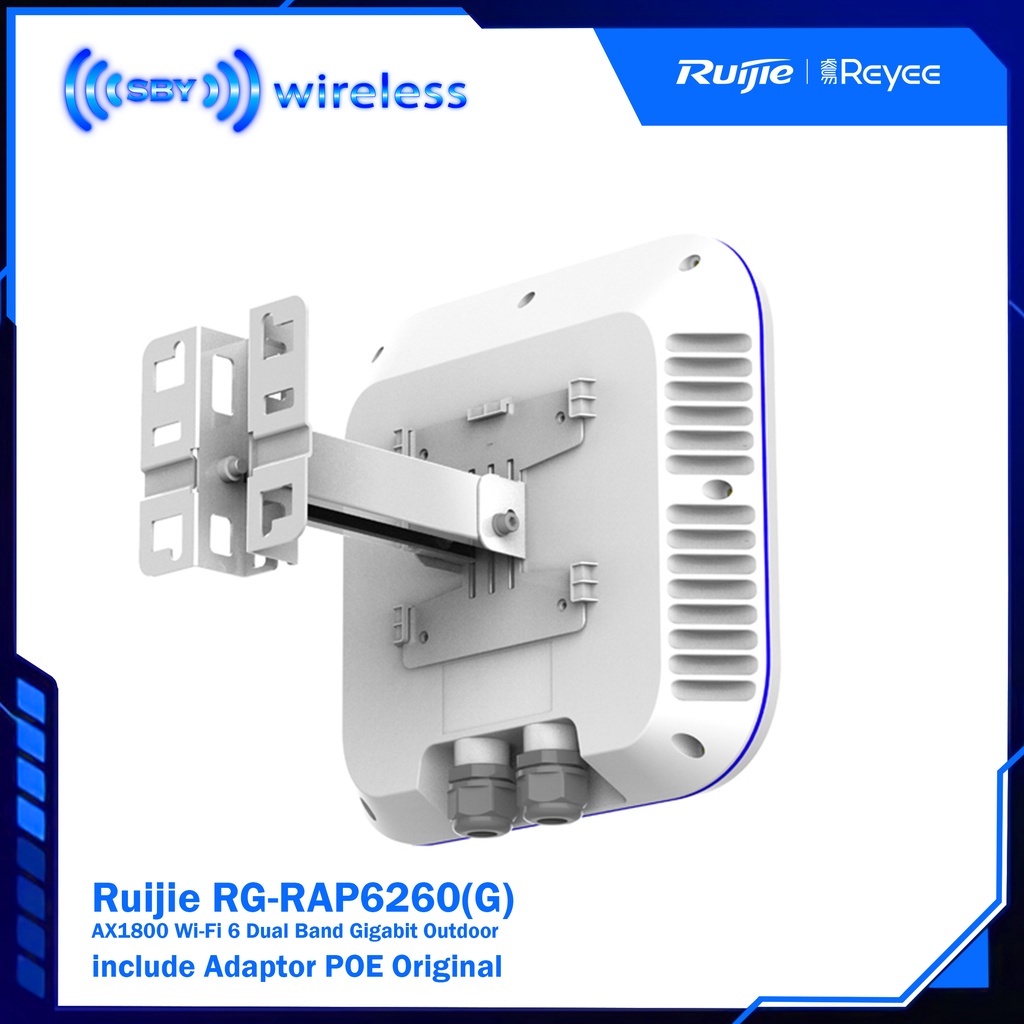

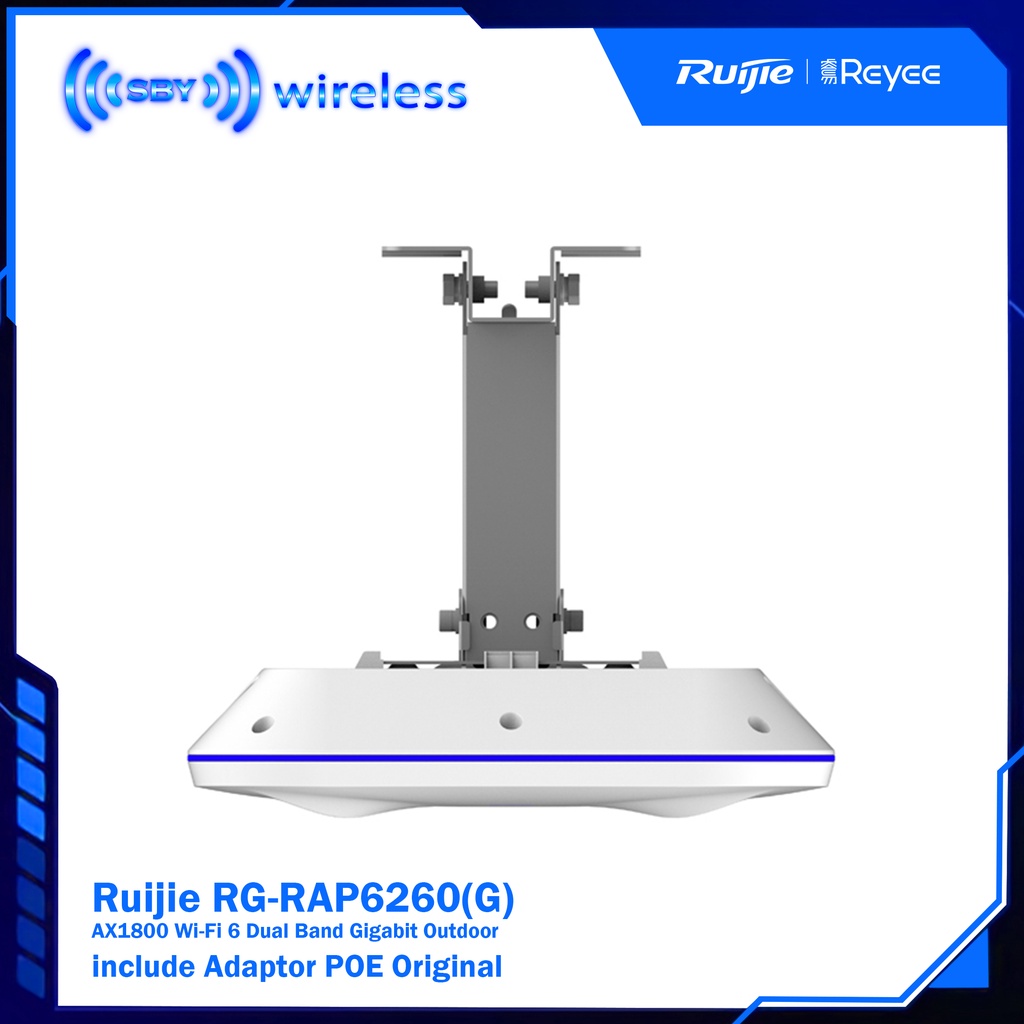

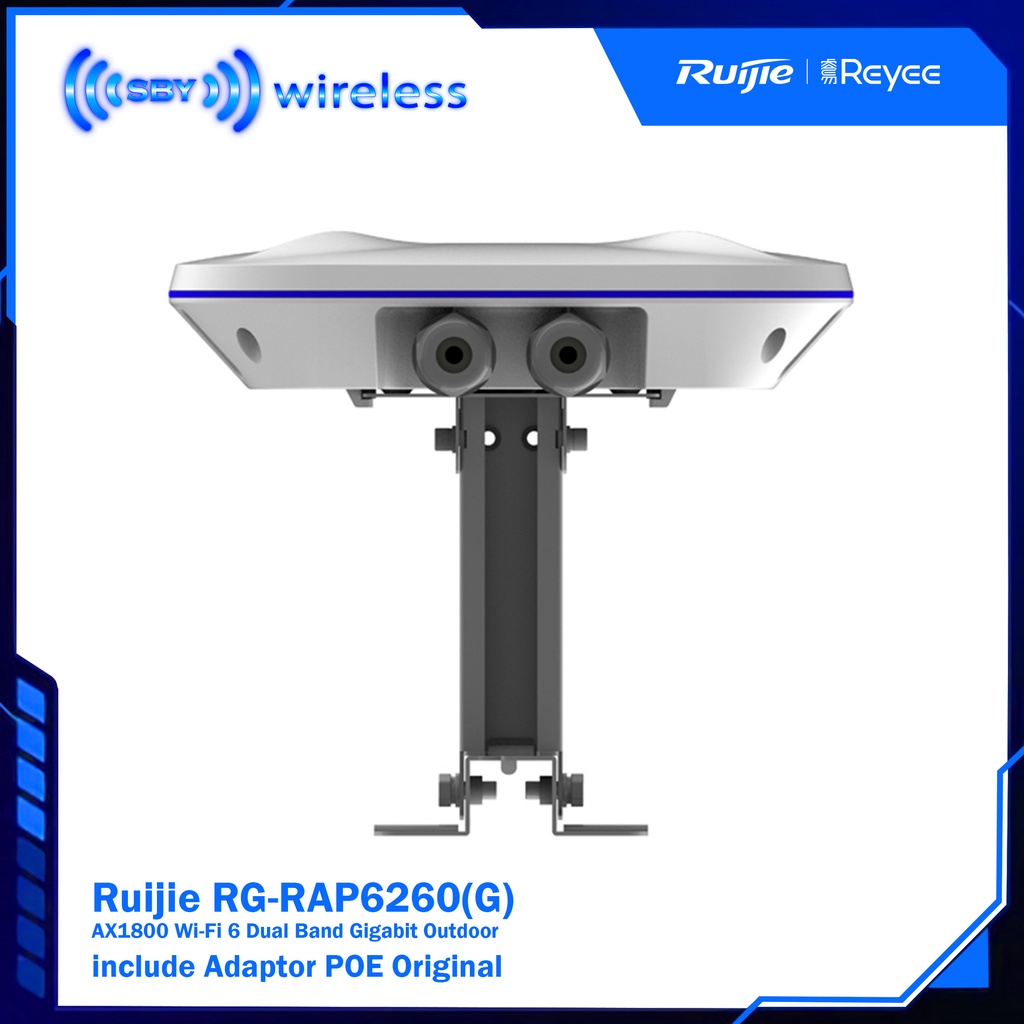

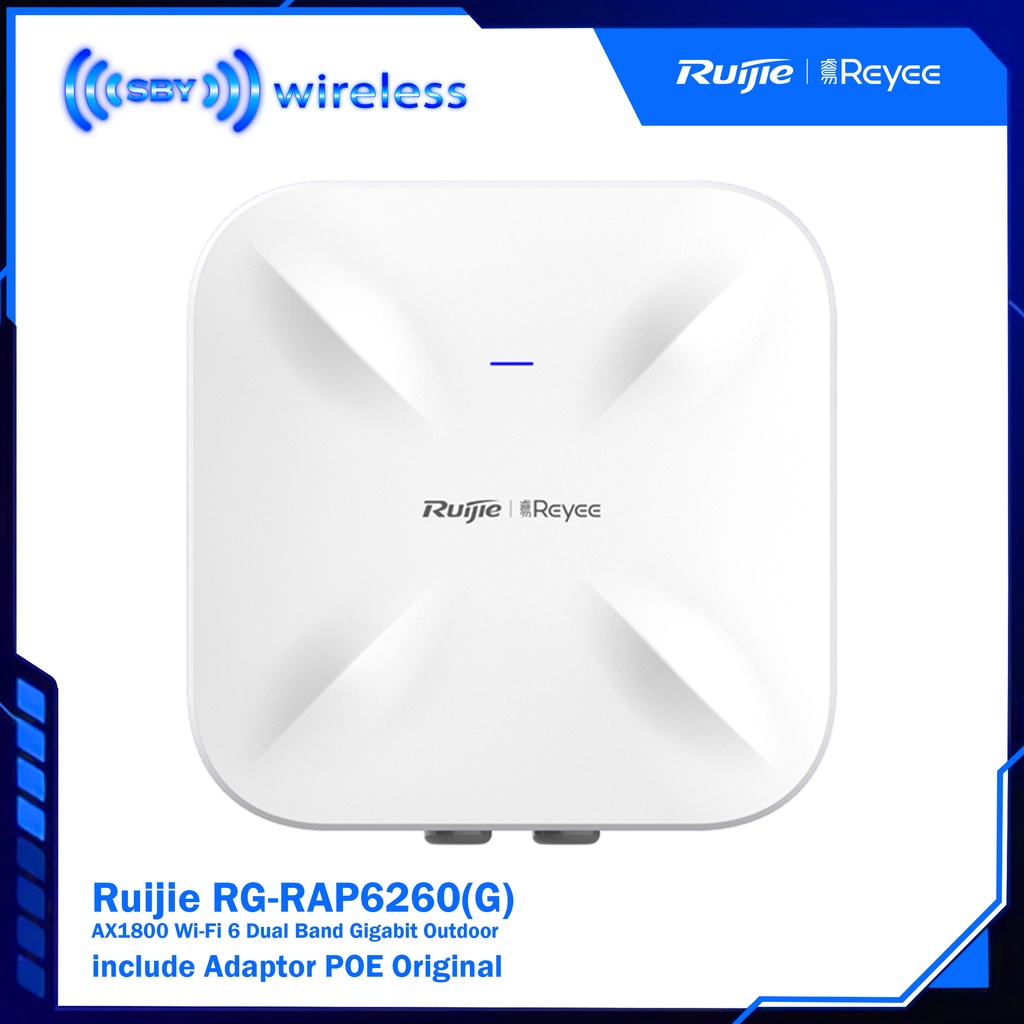

RG-RAP6260(G) is one of the wireless products fully developed by Ruijie Reyee. The device supports 802.3at PoE In power supply. With concurrent 2.4GHz and 5GHz, the AP supports dual-band dual-stream MIMO technology, providing 574Mbps at 2.4G, and 1201Mbps at 5G.

RG-RAP6260(G) supports Reyee Mesh, which allows users easily expand extra Wi-Fi in outdoor place. Less wiring, more relaxing.


Specification Description

Model
RG-RAP6260(G)

Radio
Dual-stream dual-band

Protocol
Concurrent 802.11a/b/g/n/ac/ax

Operating Bands
802.11b/g/n/ac/ax ：2.4G ~ 2.4835GHz
802.11a/n/ac/ax： 5G：5.150～5.350GHz，5.725～5. (country specific)

Antenna
Internal antennas (2.4G: 4dBi，5G: 6dBi)

Spatial Streams
2.4G 2x2MIMO 5G 2x2MIMO

Modulation
DBPSK/DQPSK/CCK(DSSS)/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM

Adjustable Power
1dBm

Dimensions
298mm×298mm×65mm (excluding mounting kits)

Service Ports
1 10/100/1000 Base-T Ethernet port supports PoE IN；
1 100/1000 Base-X SFP Port

LED Indicator
Single indicator (Blue light)

Bluetooth
Support

Installation
Ceiling/Wall-Mountable

WLAN
Maximum number of clients: 512
Recommended number of clients: 100
Up to 8 SSID
Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation

Security
Support PSK authentication
Support static blacklist and whitelist
Support WPA（TKIP）,WPA2（AES）,WPA-PSK data encryption

Routing
Support static IP address, DHCP, PPPoE Dial

Management and Maintenance
Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud APP
Support local management with web
Support remote management with Ruijie Noc Cloud platform

Platform Management Features
Automatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform
