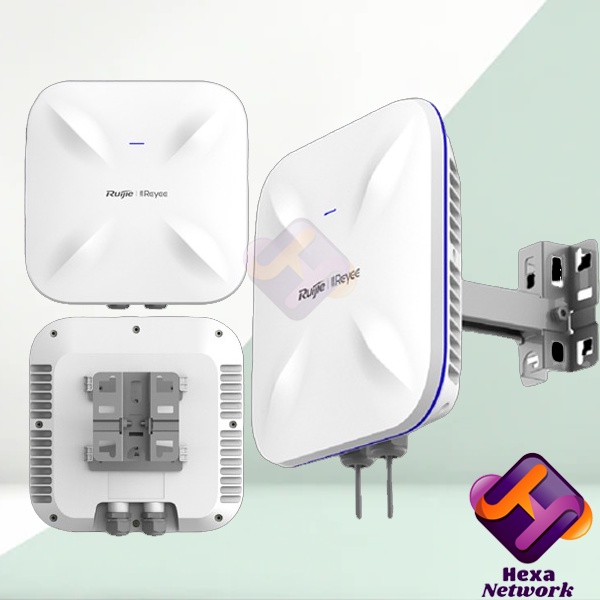

Ruijie RG-RAP6260(G) AX1800 Wi-Fi 6 Dual Band G Outdoor Access Point

Merek: Ruijie | Lihat selengkapnya produk Komputer & Aksesoris dari Ruijie
Komputer & Aksesoris > Komponen Network > Komponen Network Lainnya > Ruijie RG-RAP6260(G) AX1800 Wi-Fi 6 Dual Band G Outdoor Access Point
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Hexa NetworkLihat semua produk Komputer & Aksesoris oleh Hexa Network
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Ruijie RG-RAP6260(G) AX1800 Wi-Fi 6 Dual Band G Outdoor Access Point

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

RG-RAP6260(G) is one of the wireless products fully developed by Ruijie Reyee. The device supports 802.3at PoE In power supply. With concurrent 2.4GHz and 5GHz, the AP supports dual-band dual-stream MIMO technology, providing 574Mbps at 2.4G, and 1201Mbps at 5G.

RG-RAP6260(G) applies for IP68 protection on the outer shell design, which is suitable in the outdoor environment and voids the influence from the extreme condition. The device meets the demanding requirements, such as able to perform under ultra-cold and humid weather. This reduces the difficulty of installation and maintenance. RG-RAP6260(G) supports Power over Ethernet remote mode, which is highly suitable for many scenarios such as education, government, medical, finance, business.

Model

RG-RAP6260(G)

Radio

Dual-stream dual-band

Protocol

Concurrent 802.11a/b/g/n/ac/ax

Operating Bands

802.11b/g/n/ac/ax ：2.4G ~ 2.4835GHz

802.11a/n/ac/ax： 5G：5.150～5.350GHz，5.725～5. (country specific)

Antenna

Internal antennas (2.4G: 4dBi，5G: 6dBi)

Spatial Streams

2.4G 2x2MIMO 5G 2x2MIMO

Max Throughput

Up to 575Mbps at 2.4G

Up to 1200Mbps at 5G

Totally 1775Mbps per AP

Modulation

DBPSK/DQPSK/CCK(DSSS)/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM

Receive Sensitivity

11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps)

11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps）

11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15

11ac HT20：-83dBm（MCS0）, -57dBm（MCS9）

11ac HT40：-79dBm（MCS0）, -57dBm（MCS9）

11ac HT80：-76dBm（MCS0）, -51dBm（MCS9）

11ax：HE80：-82dBm（MCS0）, -57dBm（MCS9）,-52dBm（MCS11）

Maximum Output Power of the Transmitter

(Single Stream)

2.4GHz(2.4~2.4835GHz)：26dBm

5GHz(5.150~5.250GHz,5.725~5.850GHz)：25dBm

（country-specific，comply with local laws）

Adjustable Power

1dBm

Dimensions

298mm×298mm×65mm (excluding mounting kits)

Weight

≤1.35kg (excluding mounting kits)

Service Ports

1 10/100/1000 Base-T Ethernet port supports PoE IN；

1 100/1000 Base-X SFP Port

Management Port

N/A

LED Indicato
