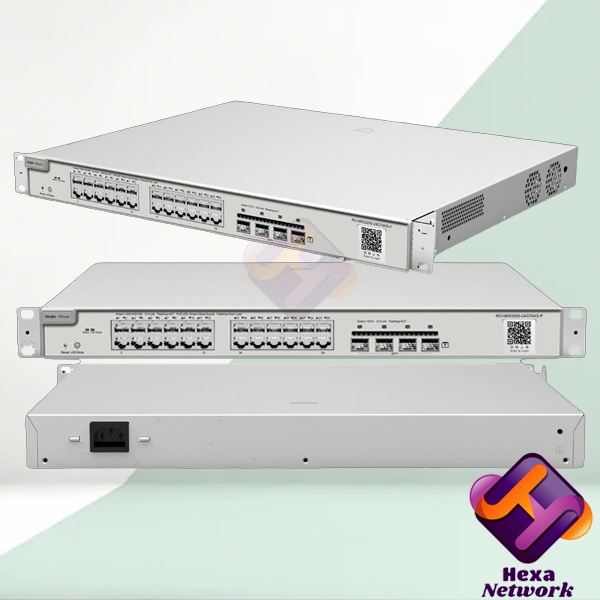

Detail RUIJIE RG-NBS3200-24GT4XS 24 Port Gigabit L2 Managed Switch with SFP+
RUIJIE RG-NBS3200-24GT4XS 24 Port Gigabit L2 Managed Switch with SFP+
"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"
RG-NBS3200-24GT4XS-P
24 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply
Switching capacity 336Gbps
Packet forwarding rate 96Mpps
MAC address
Support static MAC address, MAC address filtering
MAC address table size
16K
Number of VLANs
4094
Link aggregation
Support
Port mirroring
Many-to-one mirroring
Spanning tree
STP, RSTP
LLDP
Support
IP routing
N/A
ACL
IP standard ACL
MAC extended ACL
IP extended ACL
Port ACL for Layer 2 ports (physical port / AP)
QoS
Port-based speed limit (ingress/egress)
Security
Port protection
Hardware CPP
Management
Web management, Ruijie Cloud or Ruijie Cloud app management
DHCP
DHCP snooping
EEE
Support
Physical specifications
Dimensions
440x207.5x43.6mm
Ruijie RG-NBS3200 Series Switches are the next-generation high-performance, high-security and multi-service Layer 2 Ethernetswitches with gigabit and 10-gigabit ports. Adopting an efficient hardware architecture design and equipped with Ruijie's OpenWRT operating system, this switch series provides larger MAC address table size, faster hardware processing performance, and moreconvenient operating experience.RG-NBS3200 series provides gigabit and 10-gigabit uplink ports. Every switch of this series offers 4 fixed 10G fiber ports with high-performance uplink capability. RG-NBS3200 series switches provide comprehensive end-to-end QoS as well as flexible and rich security settings for small and medium-sized networks at an extremely high price-performance ratio to meet the needs of high-speed, secure and smart enterprise networks.
