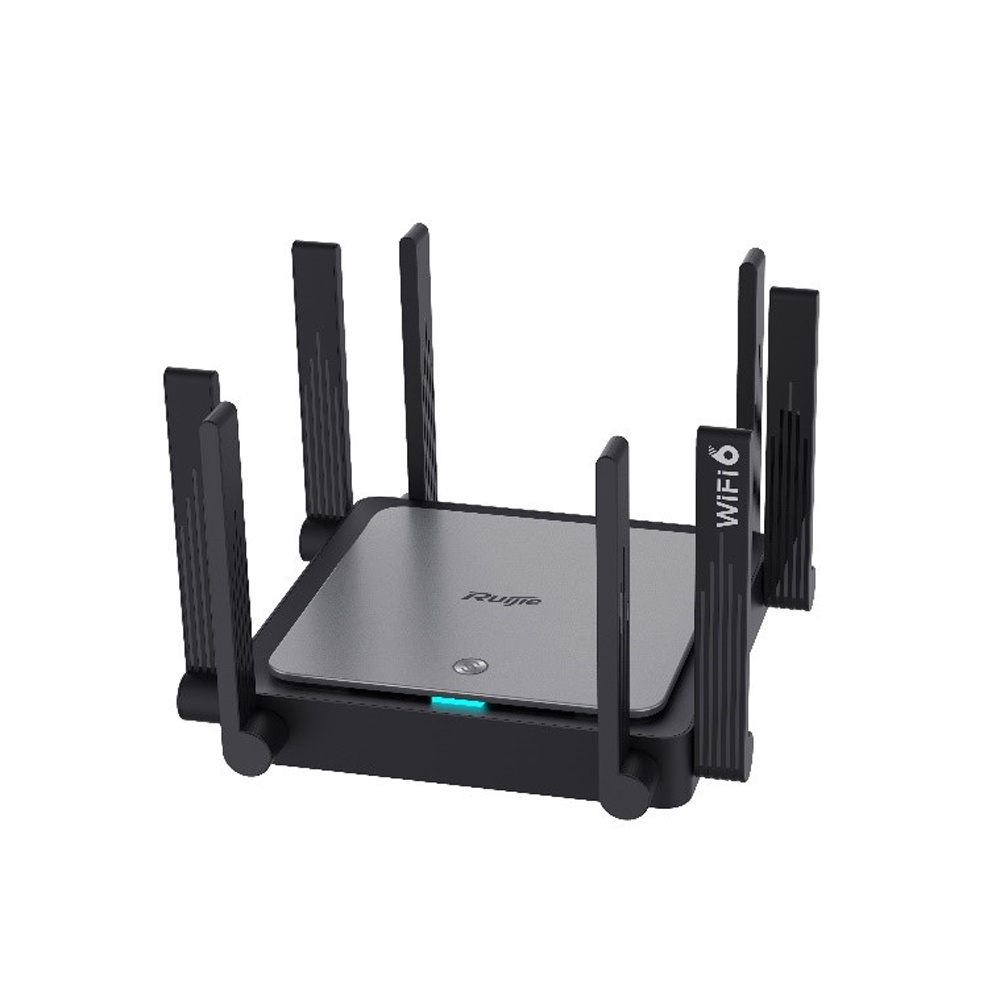

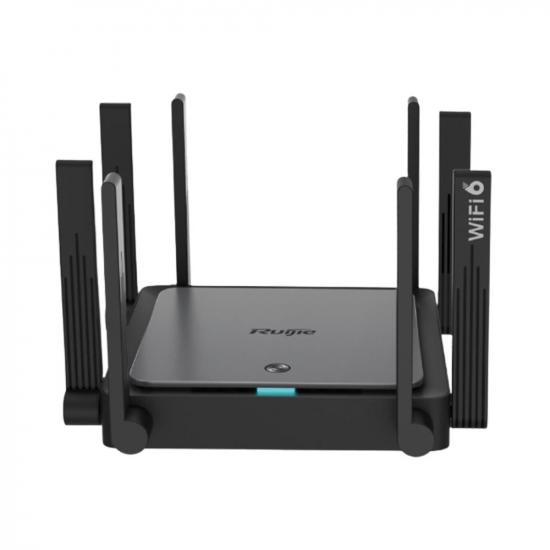

RUIJIE RG-EW3200GX PRO 3200M Wi-Fi 6 Dual-band Gigabit Mesh Router

Detail RUIJIE RG-EW3200GX PRO 3200M Wi-Fi 6 Dual-band Gigabit Mesh Router

Hardware Specifications

Model


RG-EW3200GX PRO

Wireless Parameters


2.4 GHz, 4×4, maximum rate of 800Mbps

5 GHz, 4×4, maximum rate of 2400Mbps

8 external non-detachable omnidirectional antennes

802.11a/b/g/n/ac/ax and DL/UL MU-MIMO

Independent 2.4 GHz and 5 GHz modules and dual-band mode

Wi-Fi channel:

2.4GHz :2.4G~2.4835GHz

5GHz ：5.150~5.250GHz，5.250~5.350H，5.470~5.725GH，5.725~5.850GHz

Beamforming, OFDMA, and BSS color technologies

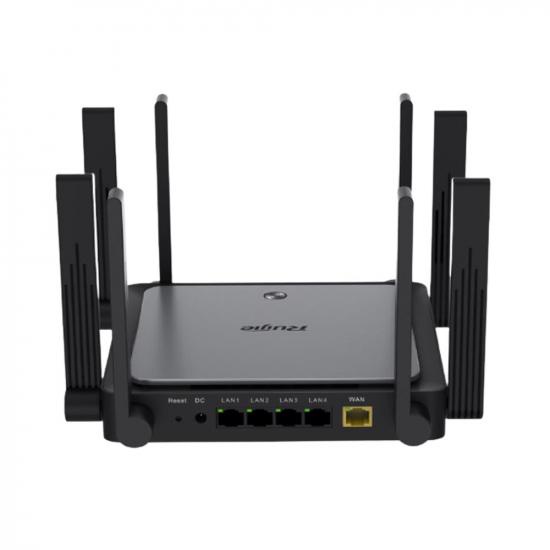

Ports


One 10/100/1000M WAN port (Auto MDI/MDIX)

Four 10/100/1000M LAN ports (Auto MDI/MDIX)

Buttons


One Reyee Mesh button (front)

One system reset button (rear)

One power On/OFF button

Indicator


One Reyee Mesh LED indicator

One system LED indicator

Physical


Dimensions (W × D × H): 190 mm × 190 mm × 41 mm (antennas not included)

Weight: 1.3 kg (packages not included)

Power Supply


Power specifications: DC 12 V, 2A

Maximum power: < 24 W

Certification


CE

Operating Environment


Operating temperature: –10℃ to +45℃

Storage temperature: –40℃ to +70℃

Operating humidity: 5% to 95% (non-condensing)

Storage humidity: 5% to 95% (non-condensing)



Software Specifications

Model


RG-EW3200GX PRO

Main features


PPPoE, DHCP, static IP address for network connection

Acquisition of PPPoE accounts from old routers

Dual-band mode

Priority to 5G

Wireless Transmission Power adjustment

Automatic channel adjustment

Guest Wi-Fi

Rate limiting for terminal IP addresses

Static DHCP address

Virtual server

DDNS

DMZ

UPnP

Network security


WPA-PSK/WPA2-PSK encryption

SSID hiding

Wi-Fi squatter prevention (Blacklist)

Network access control

IP & MAC Binding

Firewall

Advanced features


Reyee Mesh: Supported by EW Series Routers. Enables Mix & Match, Self-Healing, One-click mesh, etc;

Wireless roaming;

Hardware NAT;

One-click network optimization;

Issue diagnosis;

Remote maintenance on the cloud;

Auto and manual software upgrade on the cloud;

Silent upgrade of cloud software;

Parent Control (base on time limit、MAC limit)

Management modes


Local web pages (support PC and mobile terminal)

Ruijie Cloud App: iOS edition and Android edition
