Detail RUIJIE RG-EW1200G PRO 1300M Dual-band Gigabit Wireless Router Specification:
Wireless specifications
2.4GHz 2*2: maximum rate 400Mbps; 5GHz 2*2: maximum rate 867Mbps
Antenna: External 6dBi non-removable omnidirectional antennas
Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO
Frequency band: Independent 2.4GHz and 5GHz modules, supporting dual frequency integration
Support beamforming
Wi-Fi channel:
2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel: 36,40,44,48,149,153,157,161,165
Ports
1 10/100/1000M WAN port(Auto MDI/MDIX)
3 10/100/1000M LAN ports(Auto MDI/MDIX)
1 blue system LED indicator, 4 network port LED indicators
1 device pairing/factory reset button
1 power input interface
Physical specifications
Dimensions:220x140x36mm (W×D×H, excluding antennas)
Weight:0.98kg(entire equipment including packaging)
Power supply
Power specification: DC12V 1.5A
Maximum power: <14W
Certification
CCC,SRRC
Operating environment
Operating temperature: 0-45℃
Storage temperature: -40-70℃
Operating humidity: 5%-95%RH (non-condensing)
Storage humidity: 5%-95%RH (non-condensing)
Main features
Routing mode: PPPoE / DHCP / static IP; relay mode: wired relay / wireless relay
Obtain PPPoE account from the old router
Wi-Fi dual-band separation/ integration
Guest Wi-Fi; smart home Wi-Fi; wireless network isolation
Static DHCP address
Virtual server: port mapping, DMZ, etc.
DDNS: Oray
UPnP
Network security
Wireless security: WPA-PSK/WPA2-PSK encryption
ARP protection: IP/MAC binding
SSID hiding
Preventing rogue devices (Blacklist/whitelist)
Internet access control
Advanced features
Reyee Mesh: Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices
Wi-Fi optimization: Wi-Fi roaming, 5G priority, acceleration mode, channel adjustment, power adjustment, roaming sensitivity adjustment
Bandwidth management: hardware NAT, intelligent bandwidth allocation
Auto network inspection, fault diagnosis
Software upgrade: Automatic & manual cloud software upgrade
Management mode
Local web page
Cloud management: MACC cloud platform
Ruijie Cloud app: iOS version, Android version

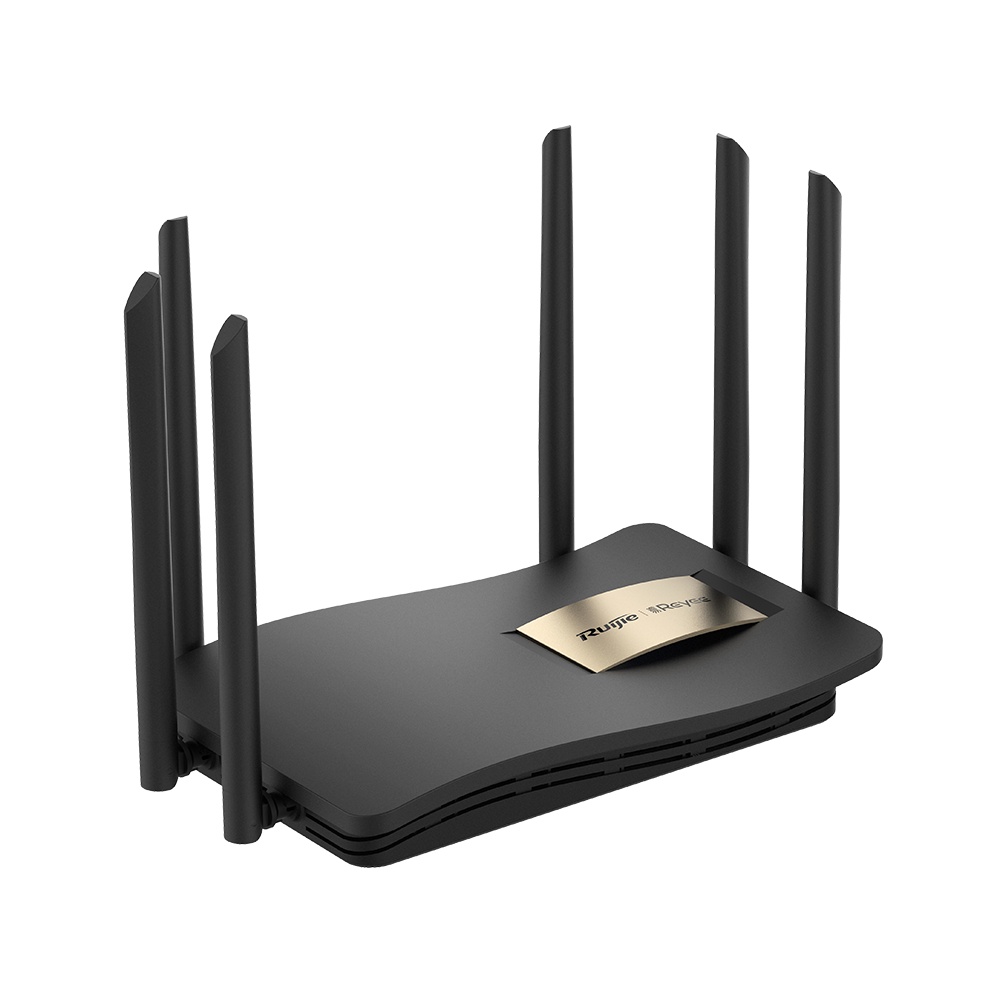

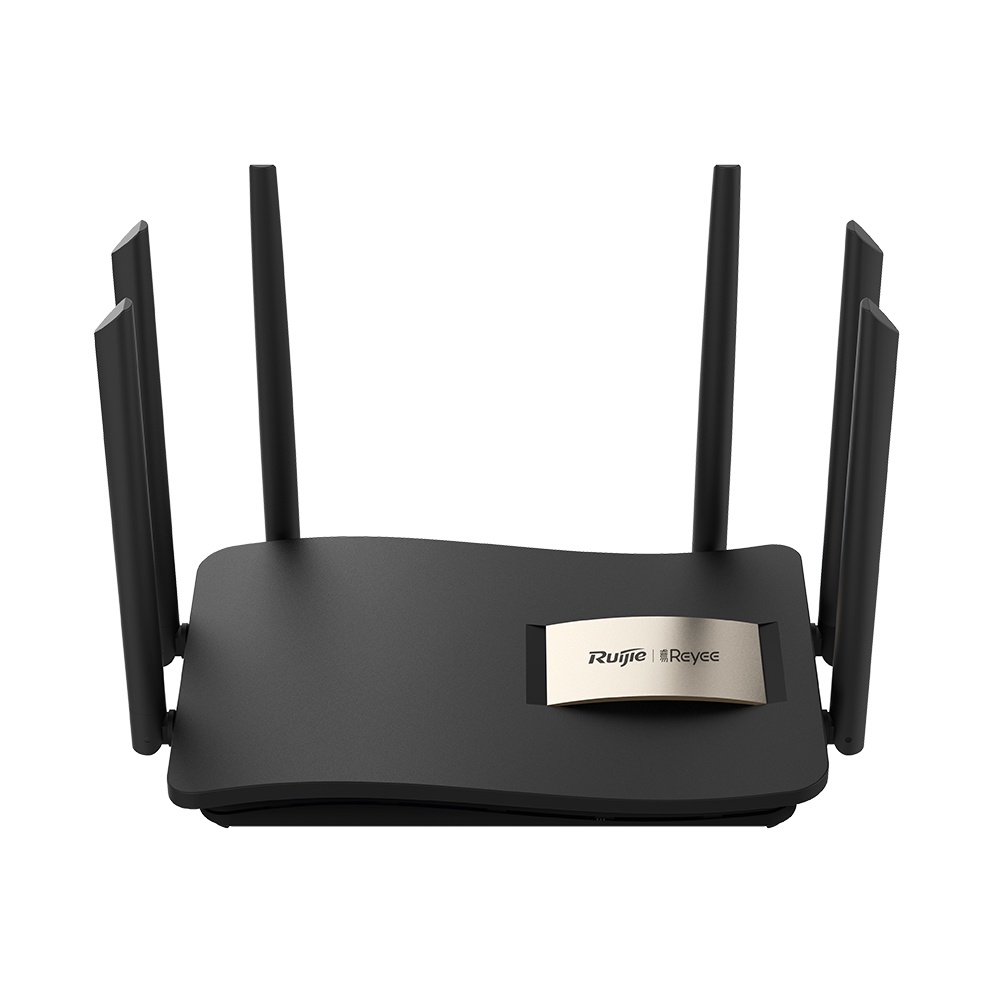

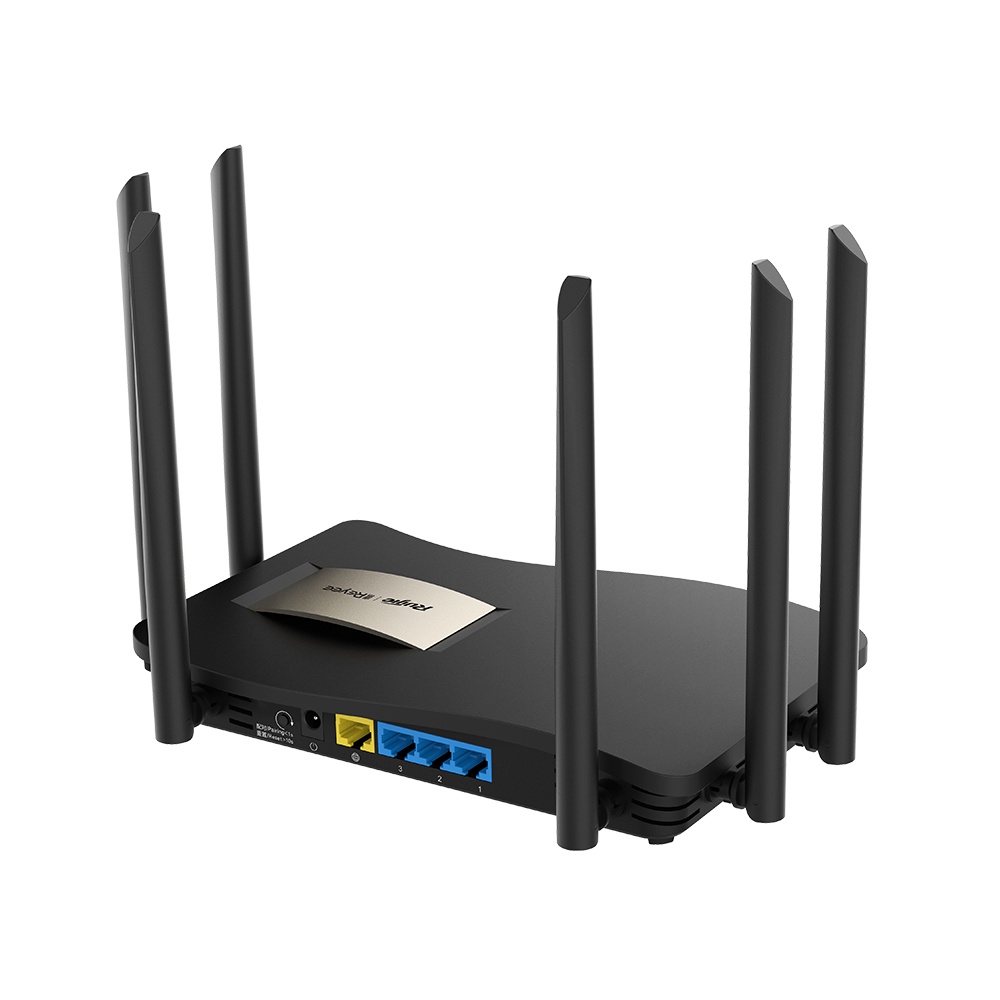

Gambar produk RUIJIE RG-EW1200G PRO 1300M Dual-band Gigabit Wireless Router RUIJIE RG-EW1200G PRO 1300M Dual-band Gigabit Wireless Router RUIJIE RG-EW1200G PRO 1300M Dual-band Gigabit Wireless Router
