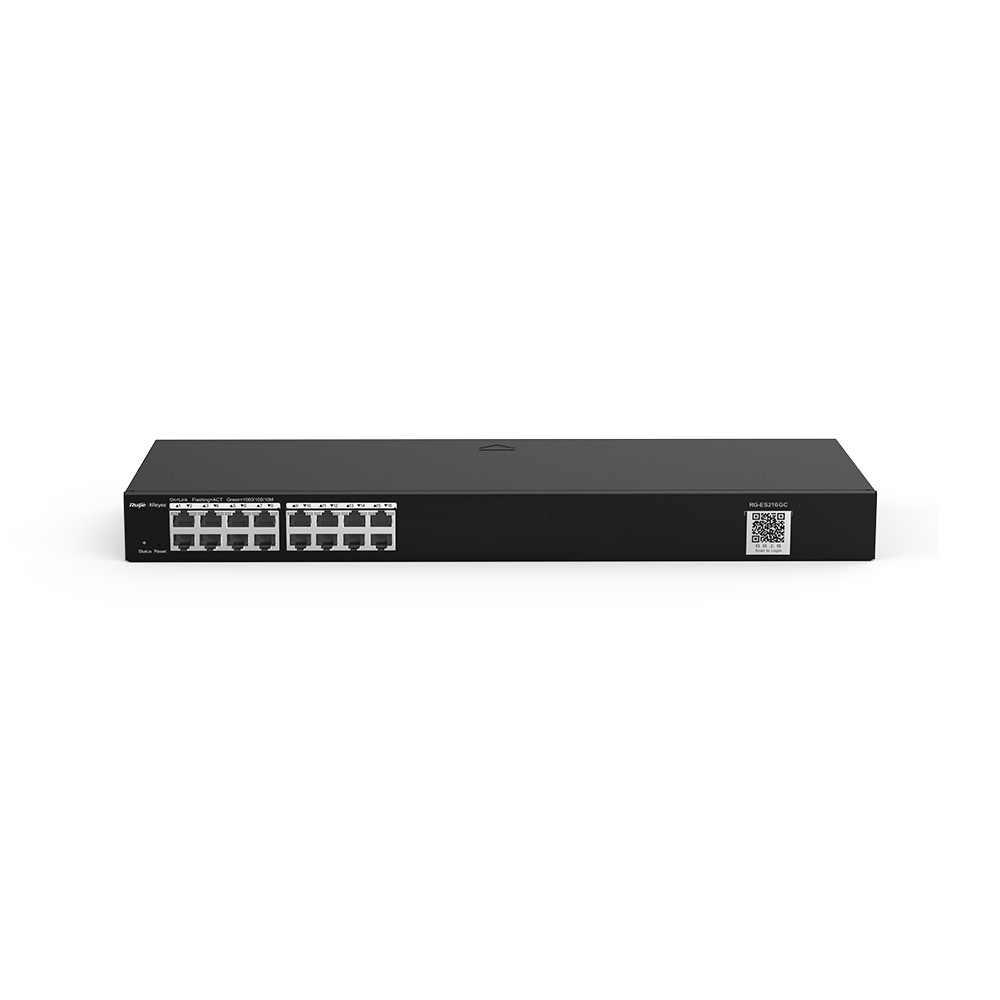

RUIJIE RG-ES216GC Cloud Managed L2 Non-PoE Switches for IP Surveillance

Detail RUIJIE RG-ES216GC Cloud Managed L2 Non-PoE Switches for IP Surveillance

Specification :

Model
RG-ES216GC

Switching capacity
32Gbps

Switching Cache
4.1Mbit

Package forwarding rate
23.8Mpps

Ports
16 10/100/1000 Base-T ports

PoE Standard
N/A

PoE Power Budget
N/A

Speed / Duplex mode
Auto / Half / Full duplex Speed auto / 10/ 100 /1000

MAC address
8K

Maximum Number of VLANs
16

Allowed VLAN ID
1 ~ 4094

Port-based VLAN
Support

Flow Control
Support

Loop Protection
Support

Unknown Unicast Suppression
Support

Multicast / Broadcast Storm Suppression
Support

Mirroring
Many-to-One Mirroring

Port Isolation
Support

Cable Testing
Support

ICMP Ping
Support

DNS
DNS Client

Telnet
Support

MACC
Support

Port Surge
Common mode: 4KV

Electrostatic Discharge
Air discharge: 6KV
Contact discharge: 4KV

Power Consumption
≤ 12W

Power supply
Built-in power supply

Model

Specifications
RG-ES216GC

Dimensions (W x D x H)
440 mm x 165mm x 44mm

Weight
2.7kg (with package)

MTBF
>200K

Operating temperature
0 to 40°C

Storage temperature
-40~70ºC

Operating humidity
10% to 90% RH

Storage humidity
5% to 95% RH

Operating Altitude
-500 ~ 5000 meters

FAN
Fanless

Management
Support management and configuration through web management interface, MACC cloud platform and mobile app

Safety Standard Ground Resistance
GB4943-2011, EN 62638-1

EMC
GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035
