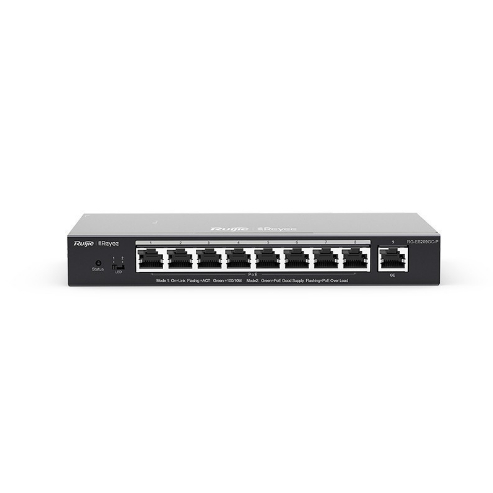

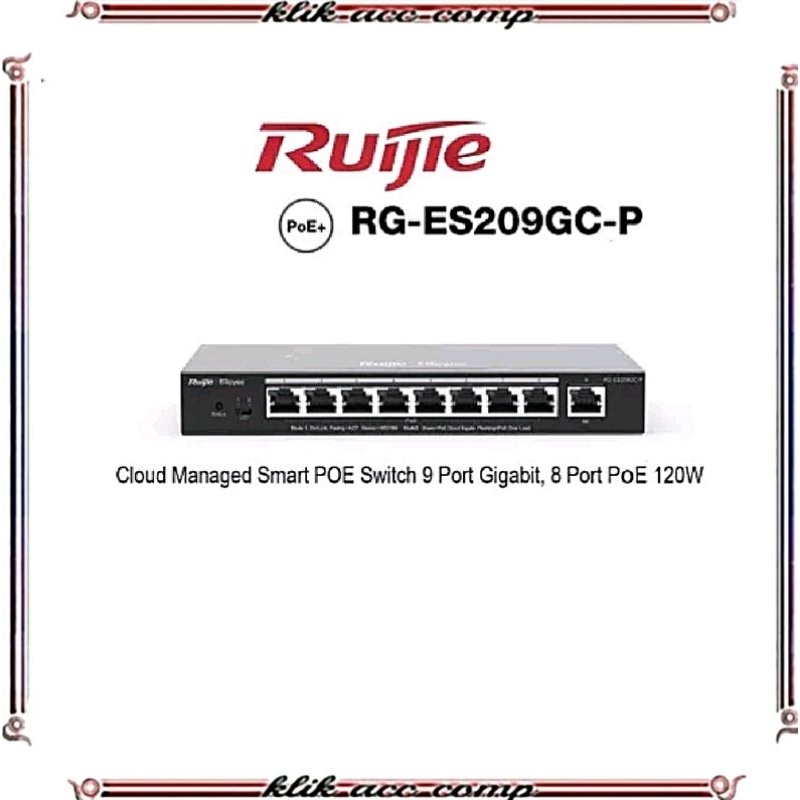

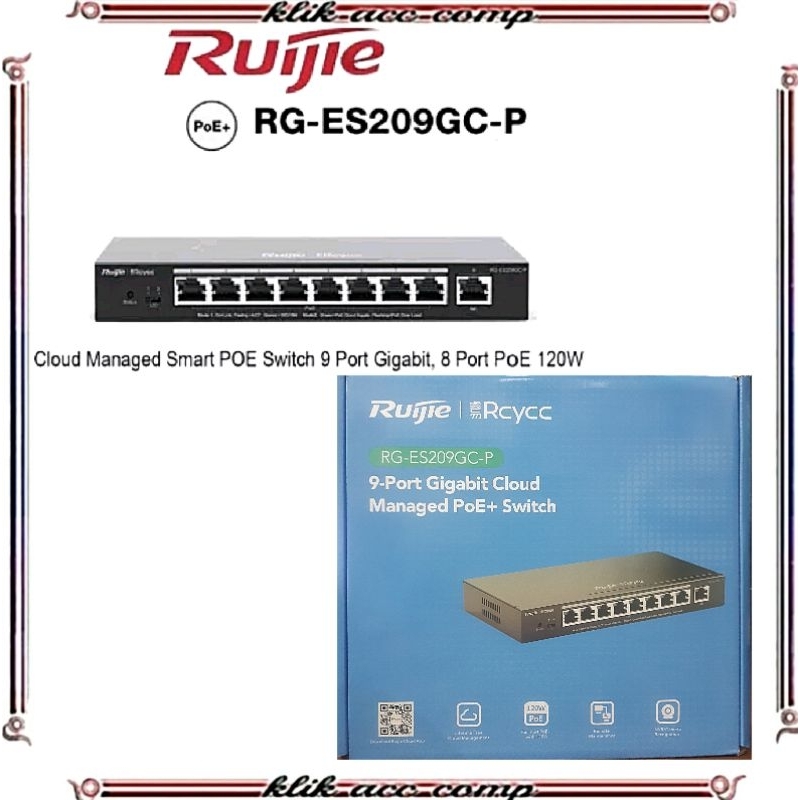

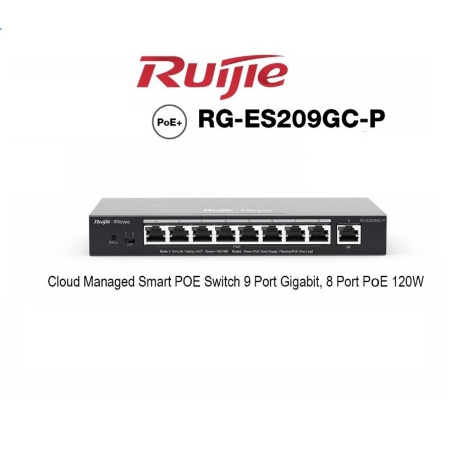

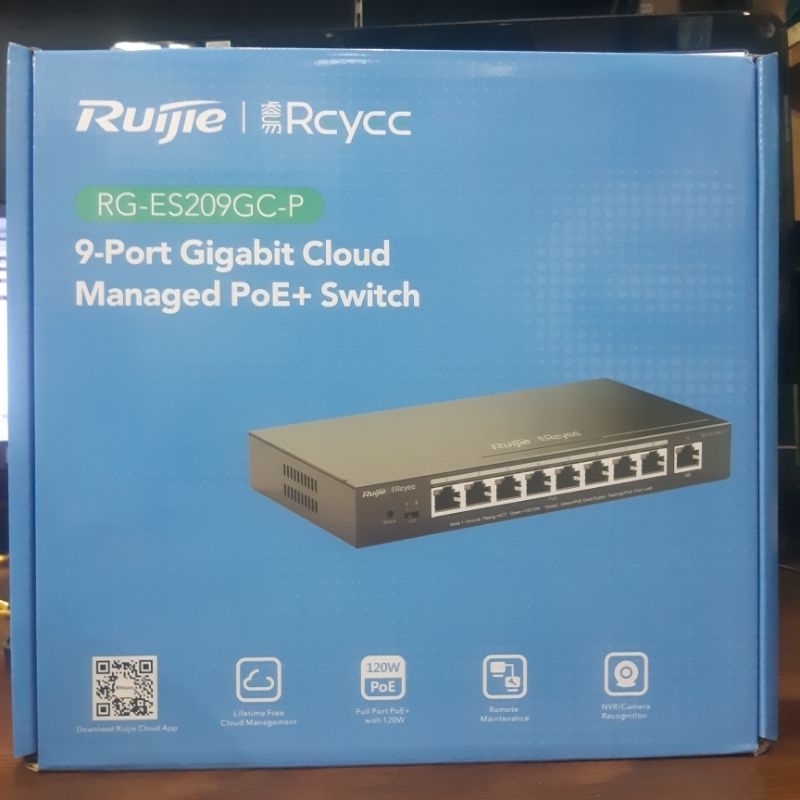

Ruijie RG-ES209GC-P , Cloud Managed 9 Port Gigabit PoE+ Switch 120W

Merek: Ruijie | Lihat selengkapnya produk Komputer & Aksesoris dari Ruijie
Komputer & Aksesoris > Komponen Network > Switch Internet & PoE > Ruijie RG-ES209GC-P , Cloud Managed 9 Port Gigabit PoE+ Switch 120W
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Ruijie RG-ES209GC-P , Cloud Managed 9 Port Gigabit PoE+ Switch 120W

Ruijie RG-ES209GC-P , Cloud Managed 9 Port Gigabit PoE+ Switch 120W

Ruijie Reyee smart surveillance switches offer a variety of port options to meet the needs of video surveillance networks of different scales. Ruijie Reyee smart surveillance switches support full-power PoE output to ensure that all cameras can be powered simultaneously when connected to the switch at maximum capacity. In addition, Ruijie Real-easy Series smart surveillance switches provide simple and easy-to-use management features while offering plug and play with default factory configuration, which can quickly locate the surveillance network faults, initiate PoE port restart, perform VLAN configuration, etc. Ruijie Cloud app and Ruijie Cloud platform remote management is also supported, making the operation and maintenance of the surveillance network easier and more convenient, while reducing operation and maintenance costs.

Hardware specifications
Ports: 8 10/100/1000 Base-T ports (PoE/PoE+), 1 10/100/1000 Base-T port
Maximum output power per PoE port: 30W
Maximum PoE output power per switch: 120W
Switching capacity: 18Gbps
Packet forwarding rate: 13.392Mpps
Surge protection Common mode: 4KV
Electrostatic discharge Air discharge: 6KV
Contact discharge: 4KV
Power consumption: ≤60W
Power supply: External power adapter
Dimensions (W x D x H): 202*108*28mm
MTBF: >200K
Operating environment
Operating temperature: 0 to 40°C
Storage temperature: -40~70ºC
Operating humidity: 10% to 90% RH
Storage humidity: 5% to 95% RH
Software features
MAC capacity: 4K
Static MAC address: 16
VLAN: Support 802.1Q VLAN
Port management: Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off
Security: Support broadcast storm suppression, port speed limit, port isolation
L2 features: Support port mirroring, loop protection, cable detection
Management: Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app
