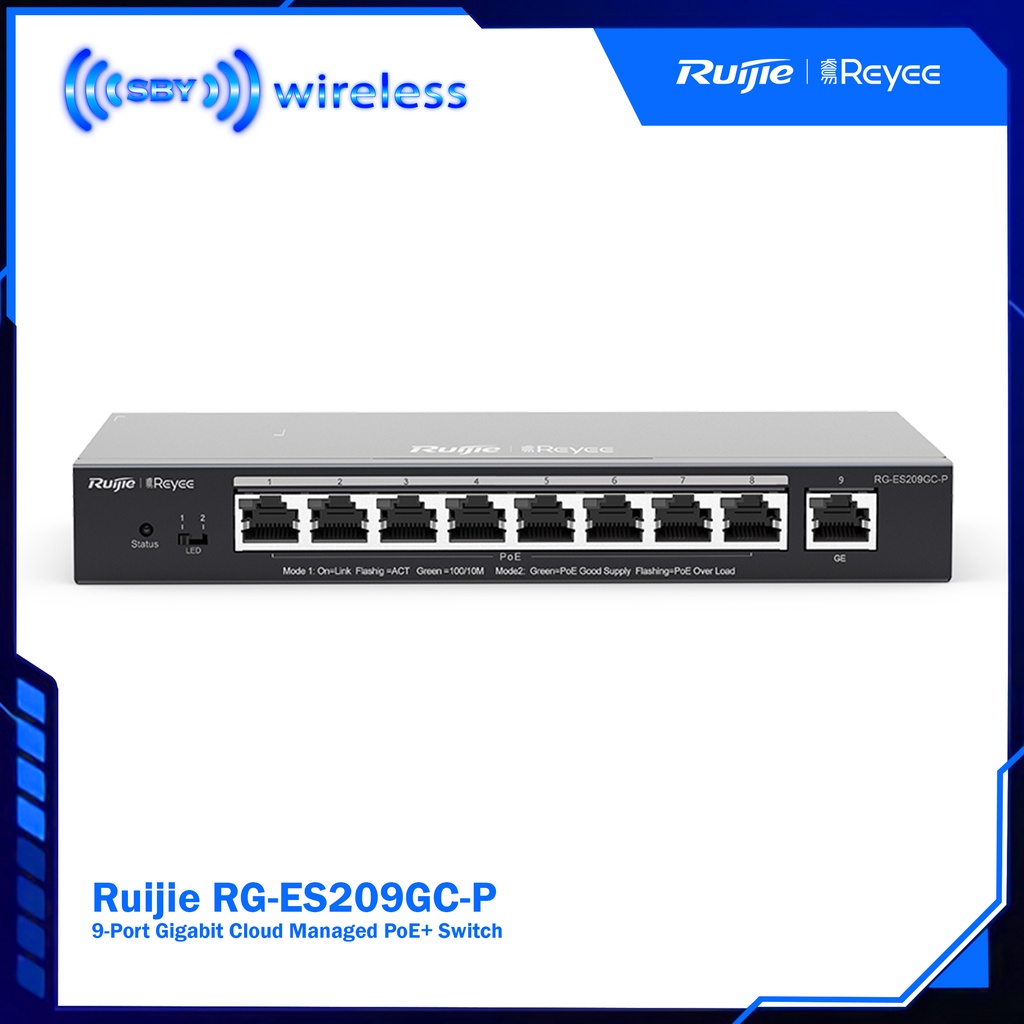

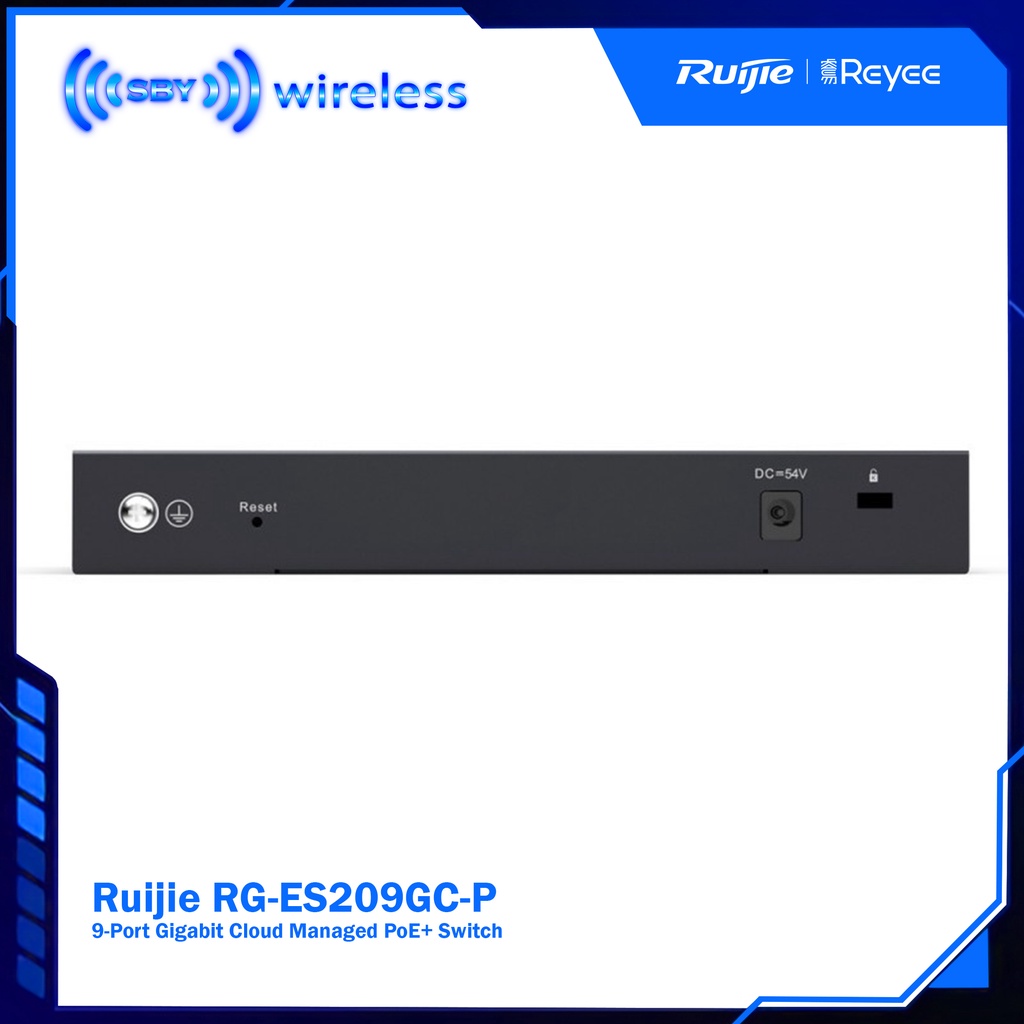

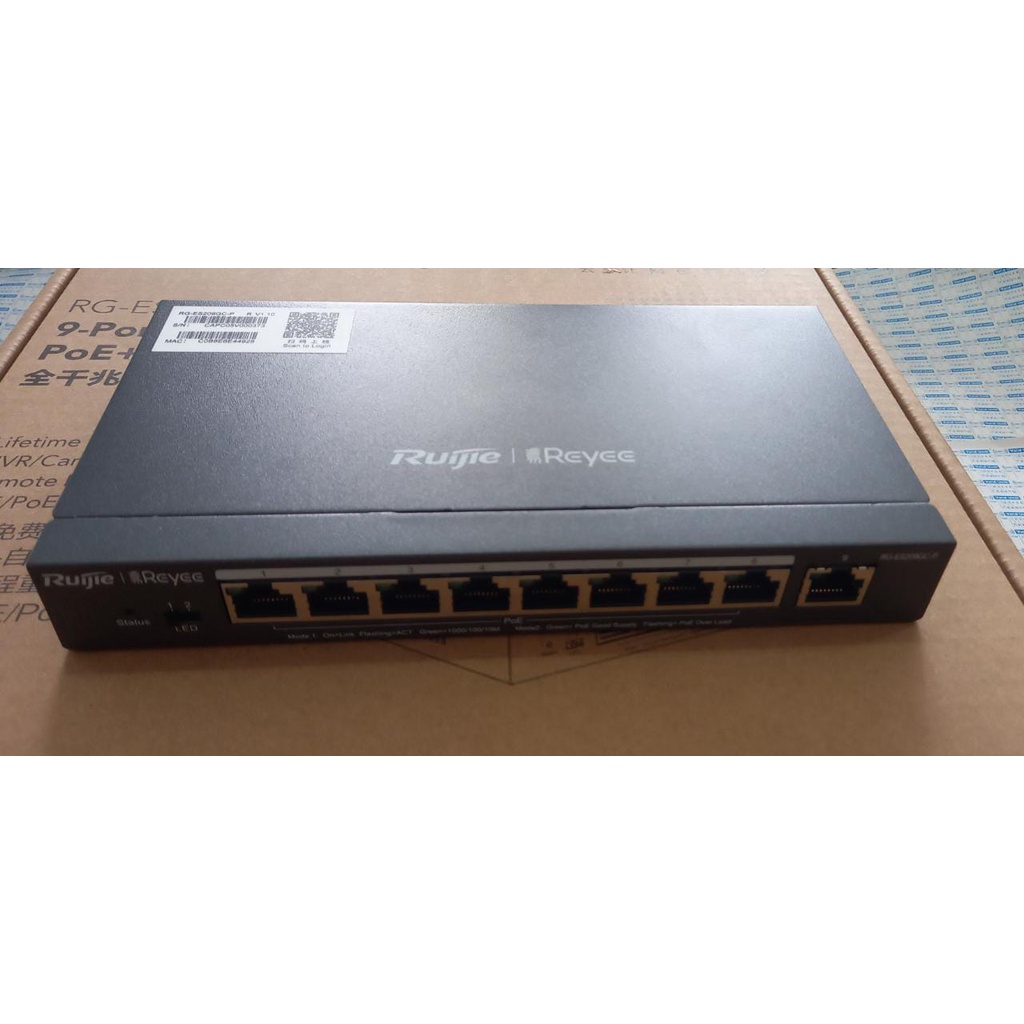

Ruijie RG-ES209GC-P 9-Port Gigabit Cloud Managed PoE+ Switch

Detail Ruijie RG-ES209GC-P 9-Port Gigabit Cloud Managed PoE+ Switch

Switching capacity 18Gbps

Switching Cache 1.5Mbit

Package forwarding rate 13.392Mpps

Ports 8 10/100/1000 Base-T ports (PoE/PoE+)
1 10/100/1000 Base-T uplink port

PoE Standard IEEE 802.3at / 802.af

PoE Power Budget 120W

Speed / Duplex mode Auto / Half / Full duplex Speed auto / 10/ 100 /1000

MAC address 4K

Maximum Number of VLANs 16

Allowed VLAN ID 1 ~ 4094

Port-based VLAN Support

Flow Control Support

Loop Protection Support

Unknown Unicast Suppression Support

Multicast / Broadcast Storm Suppression Support

Mirroring Many-to-One Mirroring

Port Isolation Support

Cable Testing Support

ICMP Ping Support

DNS DNS Client

Telnet Support

MACC Support

Port Surge Common mode: 4KV

Electrostatic Discharge Air discharge: 6KV

Contact discharge: 4KV

Power Consumption ≤ 130W

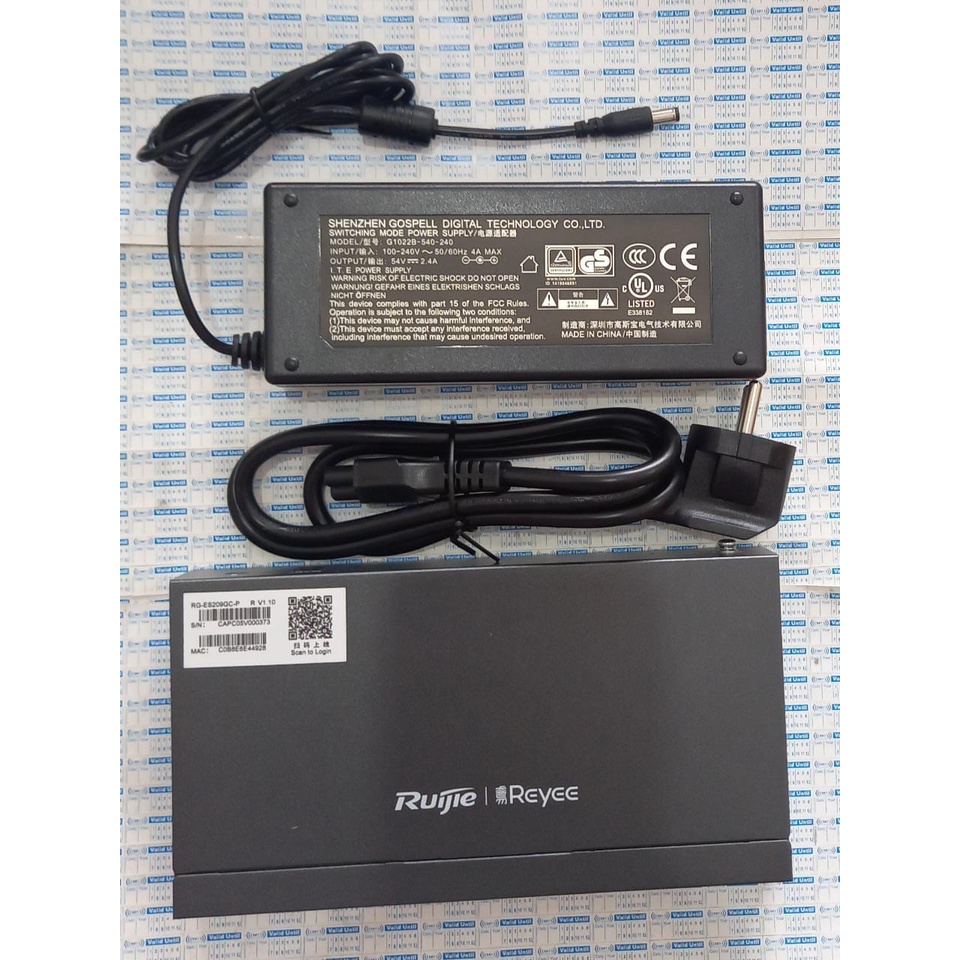

Power supply External power adapter
100-240V

Dimensions (W x D x H) 202*108*28mm

Weight 1.3 kg (with package)

MTBF >200K

Operating temperature 0 to 40°C

Storage temperature -40~70ºC

Operating humidity 10% to 90% RH

Storage humidity 5% to 95% RH

Operating Altitude -500 ~ 5000 meters

FAN Fanless

Management Support management and configuration through web management interface, MACC cloud platform and mobile app

Safety Standard Ground Resistance GB4943-2011, EN 62638-1

EMC GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035
