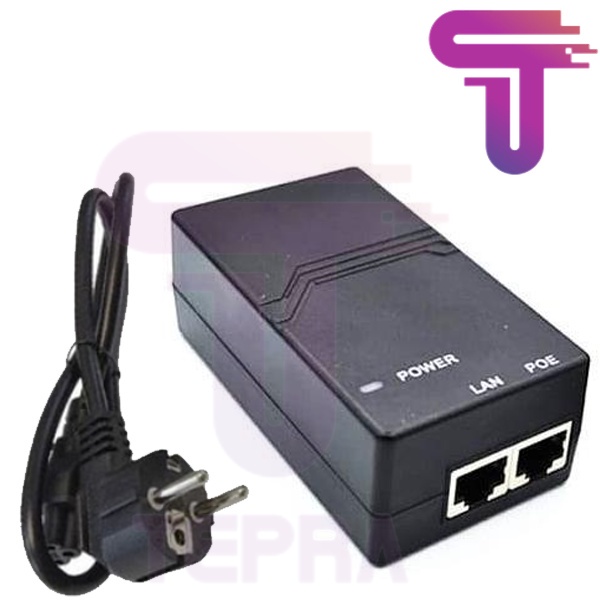

Ruijie RG-E-120(GE) PoE Adapter Gigabit PoE Injector

Detail Ruijie RG-E-120(GE) PoE Adapter Gigabit PoE Injector

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Ruijie RG-E-120(GE) Power Injector is designed to power remote management products such as wireless access points, SOHO switches, IP phones, webcams and so on. The Power Injector, compliants with IEEE 802.3af standard, are PSE adapters supporting such products with PoE (Power over Ethernet) power supply. All the RJ45 ports on the Power Injector support auto MDI/MDIX cable recognition and the power injectors sustain power transmission via cable for up to 100m, enabling flexible deployment of powered devices (PDs). The Ruijie RG-E-120(GE) Power Injector provides excellent short circuit protection and enables intelligent automated PD recognition. The Power Injector detects if the connected device is a PD to eliminate all the possible harms a PSE appliance would cause to a non-PoE device. The modern and exquisite Ruijie Power Injecter offers maximized investment cost savings and are an ideal for an extensive range of network settings such as large-scale campus, enterprise, public hotspots, sports stadium, etc.

RG-E-120(GE)

Ports

10/100/1000 Mbps Copper port (RJ-45)

10/100/1000 Mbps PoE Copper port (RJ-45)

Power

Output Power Voltage: 50V DC

Output Port Power: 15.4W

Dimensions
(W x H x L) (mm)

53 x 32.5 x 140

Weight

200g

Temperature

Operating Temperature: 0°C to 45°C

Storage Temperature: -30°C to 85°C

Humidity

Operating Humidity: 5% to 90% (non-condensing)

Storage Humidity: 5% to 95% (non-condensing)

Altitude

Operating Altitude: 0 to 3048m

Regulatory Compliance

IEEE 802.3af_x000B_RoHS Compliant, WEEE Compliant, CE

MTBF

>100,000 hours @25°C

Electromagnetic Emission & Immunity Safety Approval

FCC Part 15, EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI, UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1
