Ruijie RG AP820 L V2 Wireless Access Point

Merek: Ruijie | Lihat selengkapnya produk Komputer & Aksesoris dari Ruijie
Komputer & Aksesoris > Komponen Network > Modem & Router Wireless > Ruijie RG AP820 L V2 Wireless Access Point
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:kusuma komputerLihat semua produk Komputer & Aksesoris oleh kusuma komputer
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Ruijie RG AP820 L V2 Wireless Access Point

kami menjual barang original bergaransi resmi
Harga dan stok bisa berubah setiap saat tanpa pemberitahuan sebelumnya
Silahkan chat dahulu untuk cek Stok Barang

klaim garansi juga bisa kita bantu

yang mau nambah bubble wrap silahkan klik link ini
https://shopee.co.id/bubble-wrap-i.225428636.5255998882?position=0

Radio
Dual-radio dual-band：
Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO
Radio 2: 5G 11ax: 2x2 MIMO
Protocol
Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac
Operating Bands
802.11b/g/n/ax ：2.4G ~ 2.483GHz
802.11a/n/ac/ax ： 5.150～5.350GHz，5.47～5.725GHz，5.725～5.850GHz (vary depending on different countries)
Spatial Streams
Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz
Max Throughput
Maximum throughput (5G+5G mode) per AP: 2.4Gbps
Radio1：5G low band 1.2Gbps
Radio2：5G high band 1.2Gbps
2.4G+5G operation mode, maximum throughput per AP: 1.775Gbps
Radio1：2.4G 0.574Gbps
Radio2：5G 1.2Gbps
Modulation
OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps
DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps
MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM
OFDMA (up to 1024-QAM)
Receiver Sensitivity
11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps）
11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps）
11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15）
11ac HT20：-88dBm（MCS0）, -63dBm（MCS9）
11ac HT40：-85dBm（MCS0）, -60dBm（MCS9）
11ac HT80：-82dBm（MCS0）, -57dBm（MCS9）
11ax HT80：-82dBm（MCS0）, -57dBm（MCS9）, -52dBm（MCS11）
Antenna
Integrated antenna design
Antenna Gain
2.4G: 3dBi
5G: 3dBi
Service Ports
1 10/100/1000M Ethernet ports, PoE In
Management Port
1 console port
Reset Button
Support
Anti-theft Lock
Support
LED Indicator
1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access)
Transmit Power
≤100mw（20dBm） (vary depending on different countries)
Adjustable Power
1dBm
Power Supply
Local power supply (DC 48V/1A) （DC Power adapters should be purchased from third-party vendors separately if needed）
PoE (802.3af) – full spectrum operation
Power Consumption
＜12.95W

Gambar produk

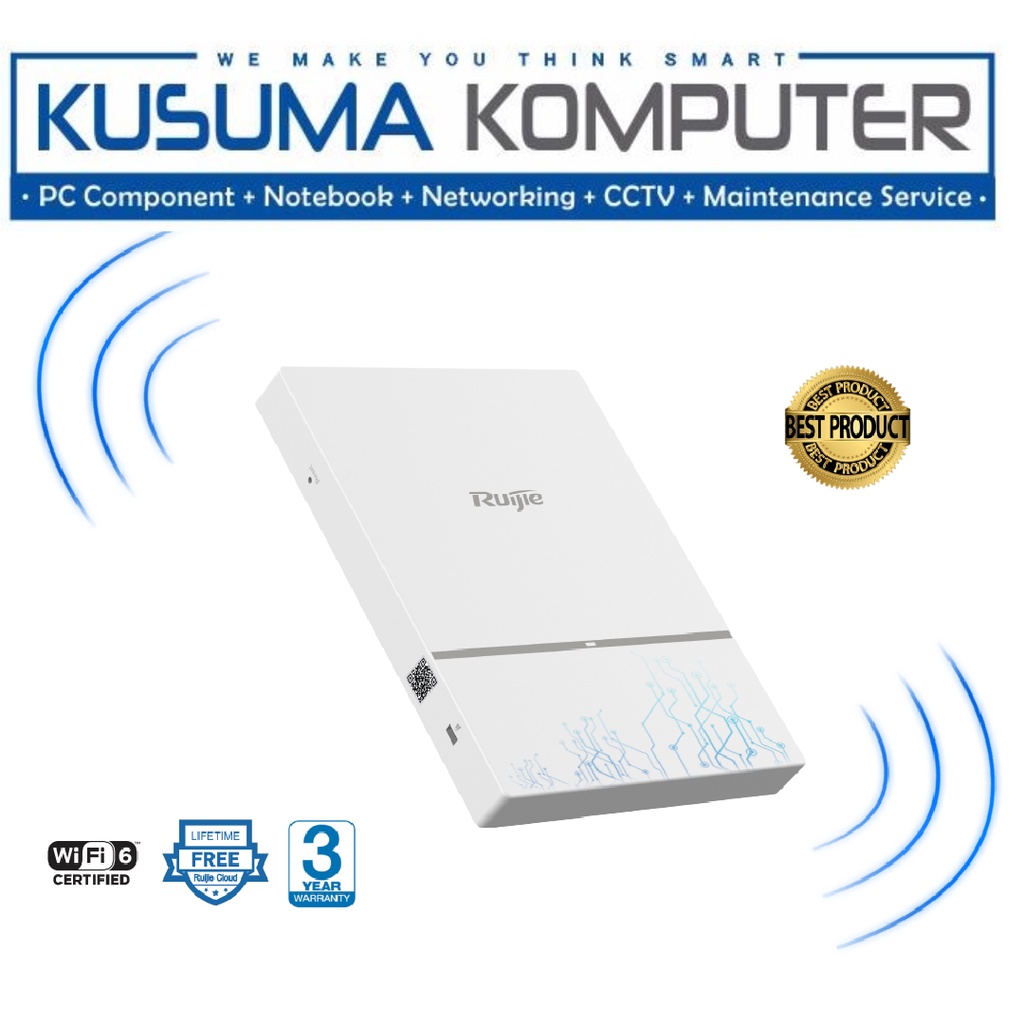

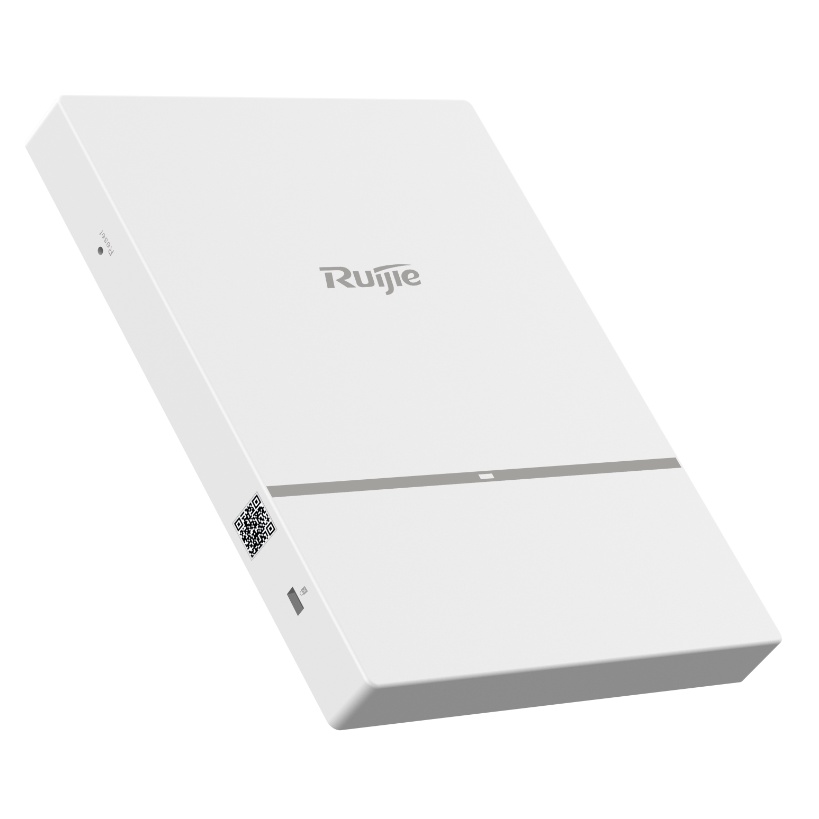

Ruijie RG AP820 L V2 Wireless Access Point
Ruijie RG AP820 L V2 Wireless Access Point
Ruijie RG AP820 L V2 Wireless Access Point
Ruijie RG AP820 L V2 Wireless Access Point
Lihat lebih banyak informasi produk
