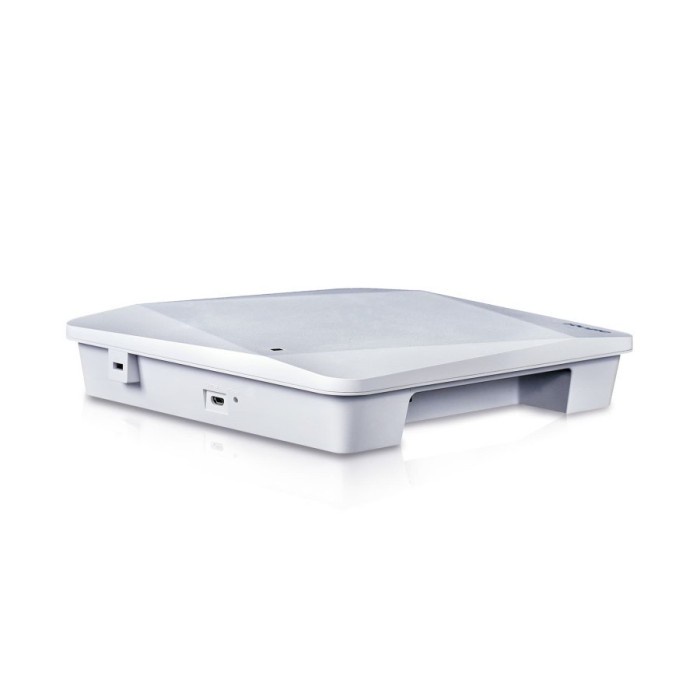

RUIJIE RG-AP720-L Wireless Ceiling Wave 2 MU-MIMO Indoor Access Point

Detail RUIJIE RG-AP720-L Wireless Ceiling Wave 2 MU-MIMO Indoor Access Point

SPECIFICATION :

Model


Ruijie AP720-L

Model


Ruijie AP720-L

Target Deployment


Retail Chain Store, Small & Medium-sized Business Office, Boutique Hotel

Type


Indoor Ceiling/Wall-mounting

Basic Spec


Radio


Concurrent Dual-band

Protocol


802.11a/b/g/n/ac

Wave2

Operating Bands


802.11b/g/n: 2.4GHz to 2.483GHz



802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)

Antenna


Built-in Omni-directional Antenna

Antenna Gain


2.4G: 3dBi

5G: 3dBi

Max Throughput


Maximum throughput of 2.4G: 300Mbps

Maximum throughput of 5G: 867Mbps

Maximum throughput per AP: 1167Mbps

Modulation


OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps

DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps

MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM

Receiver Sensitivity


11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps）

11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps）

11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15）

11ac HT20：-88dBm（MCS0）, -63dBm（MCS9）

11ac HT40：-85dBm（MCS0）, -60dBm（MCS9）

11ac HT80：-82dBm（MCS0）, -57dBm（MCS9）

Spatial Streams


2x2

Maximum Transmit Power


100mW

IP Rating


IP41

Ports


1 10/100/1000BASE-T Ethernet uplink

Port LAN1 supports PoE

1 Console Port

Power


Power Supply

(DC Power adapters should be purchased from third-party vendors separately if needed.)


local power supply (DC 5V/3A)

PoE (802.3af）

Power Consumption


<12.95W

WLAN


Maximum clients per AP


256

BSSID capacity


32

Remote Intelligent Perception Technology (RIPT)


Support

Intelligent load balancing based on the number of users or traffic


Support

STA control


Support

Bandwidth control


Support

Preference for 5GHz (band select)


Support




Band Steering (5G Priority)


Support

Security


PSK, Web, 802.1x authentication


Support

PPSK authentication


Support

Data encryption


WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)

PEAP authentication


Support

User isolation


Support

Rogue AP detection and countermeasure


Support

RADIUS


Support

Wireless Intrusion Detection System(WIDS)


Support

Wireless Intrusion Prevention System (WIPS)


Support

Routing


IPv4 address


Static IP address or DHCP reservation

IPv6 address


Manual or automatic configuration

Multicast


Multicast to unicast conversion

Management and Maintenance


Network management


SNMP v1/v2C/v3, Telnet, TFTP, Web management

Cloud AC management


Support

FAT/FIT switching


Support

External Characteristics


Lock


Support

LED Indicators


1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode)

Relevant Standard


Wi-Fi Alliance Certification


Support

Radio Standard


EN300 328

EN301 893

EMC Standard


GB9254

EN301 489-1

EN301 489-17

EN 55032

EN 61000

EN 55035

Safety Standard
