RUIJIE REYEE RG-RAP2260(G) Wi-Fi 6 Dual Band Ceiling Mount Access Point

Detail RUIJIE REYEE RG-RAP2260(G) Wi-Fi 6 Dual Band Ceiling Mount Access Point

SPECIFICATION:

Model


RG-RAP2260(G)

Hardware Specifications

Radio


Dual-stream dual-band

Protocol


Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n

Operating Bands


802.11b/g/n/ax ：2.4G ~ 2.4835GHz

802.11a/n/ac/ax ： 5G：5.150～5.350GHz，5.725～5.850GHz (country specific)

Antenna


Internal antennas(2.4G: 3dBi，5G: 3dBi)

Spatial Streams


2.4G 2x2MIMO 5G 2x2MIMO

Max Throughput


Up to 574Mbps at 2.4G

Up to 1201Mbps at 5G

1.775Gbp per AP

Modulation


OFDM：

BPSK@6/9Mbps，QPSK@12/18Mbps，16QAM@24Mbps，64QAM@48/54Mbps

DSSS：

DBPSK@1Mbps，DQPSK@2Mbps，

and CCK@5.5/11Mbps

MIMO-OFDM：

BPSK，QPSK，16QAM ，64QAM，256QAM and1024QAM

OFDMA

Receive Sensitivity


11b：

-96dBm(1Mbps)，

-93dBm(5Mbps)，

-89dBm(11Mbps)



11a/g：

-91dBm(6Mbps)，

-85dBm(24Mbps)，

-80dBm(36Mbps)，

-74dBm(54Mbps)



11n：

-90dBm(MCS0)，

-70dBm(MCS7)，

-89dBm(MCS8)，

-68dBm(MCS15)



11ac：

20MHz：-88dBm(MCS0), -63dBm(MCS9)

40MHz：-85dBm(MCS0), -60dBm(MCS9)

80MHz：-85dBm(MCS0), -60dBm(MCS9)



Wi-Fi 6：

80MHz：-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11)

Maximum output power of the transmitter
(single stream)


2.4GHz(2.4~2.4835GHz)：23dBm

5GHz(5.150~5.250GHz,5.725~5.850GHz)：23dBm

(country-specific，comply with local laws)

Adjustable Power


1dBm

Dimensions


194mm×194mm×35mm (excluding mounting kits)

Weight


0.56kg (excluding mounting kits)

Service Ports


2 10/100/1000M Base-T Ethernet ports, PoE/LAN1 port supports PoE

Management Port


NA

LED Indicator


Single indicator (green light)

Power Supply


Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory), 802.3at PoE (Warning：802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier)

Power Consumption


≤ 15.3W

Environment


Operating temperature: 0°C～40°C

Storage temperature: -40°C～70°C

Operating humidity: 5％～95％

(non-condensing)

Storage humidity: 5％～95％

(non-condensing)

Installation


Ceiling/wall-mountable

Safety Standard


GB4943, IEC 62368-1

EMC Standard


GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035

Vibration Standard


IEC61373

Radio Standard


EN300 328, EN301 893

MTBF


>400000H

Software Features

Operating Mode


AP mode and routing mode

WLAN


Maximum number of clients: 512

Recommended number of clients: 100

Up to 8 SSIDs

Support SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit

Support Layer 2 user isolation

Roaming


Support Layer 2 and Layer 3 roaming

Security


Support PSK authentication

Support static blacklist and whitelist

Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

Support Black List / White List：

Maximum 256 rules per SSID

Maximum 1024 rules per AP

Routing


Support static IP address, DHCP, PPPoE Dial Up

Management and maintenance


Support unified networking of all network equipment

Support loca

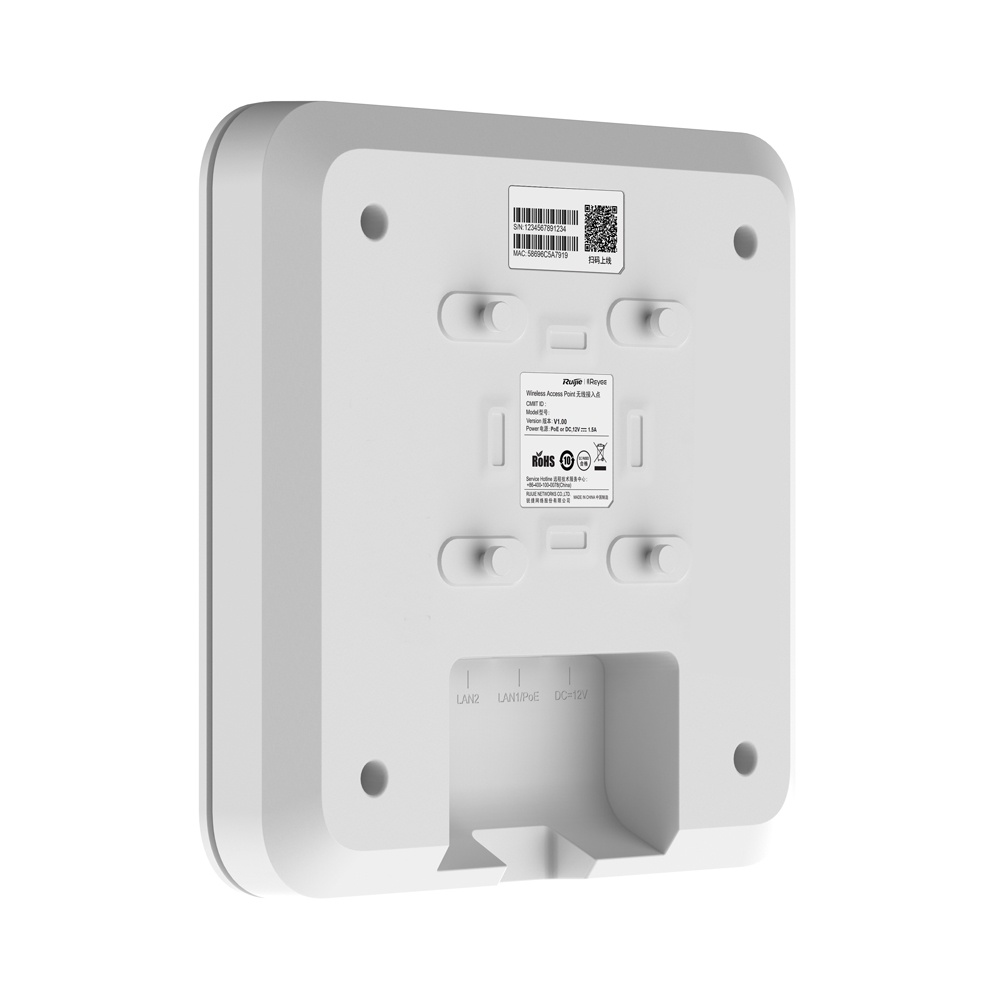

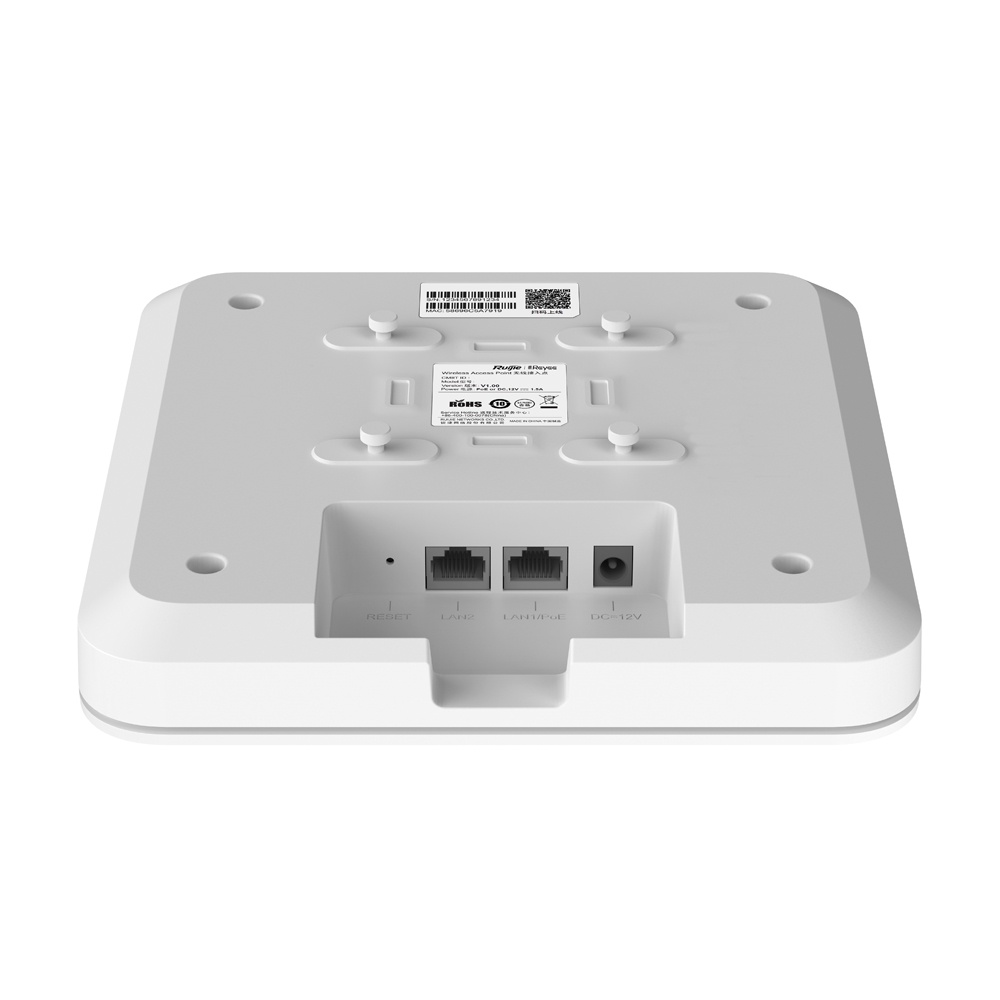

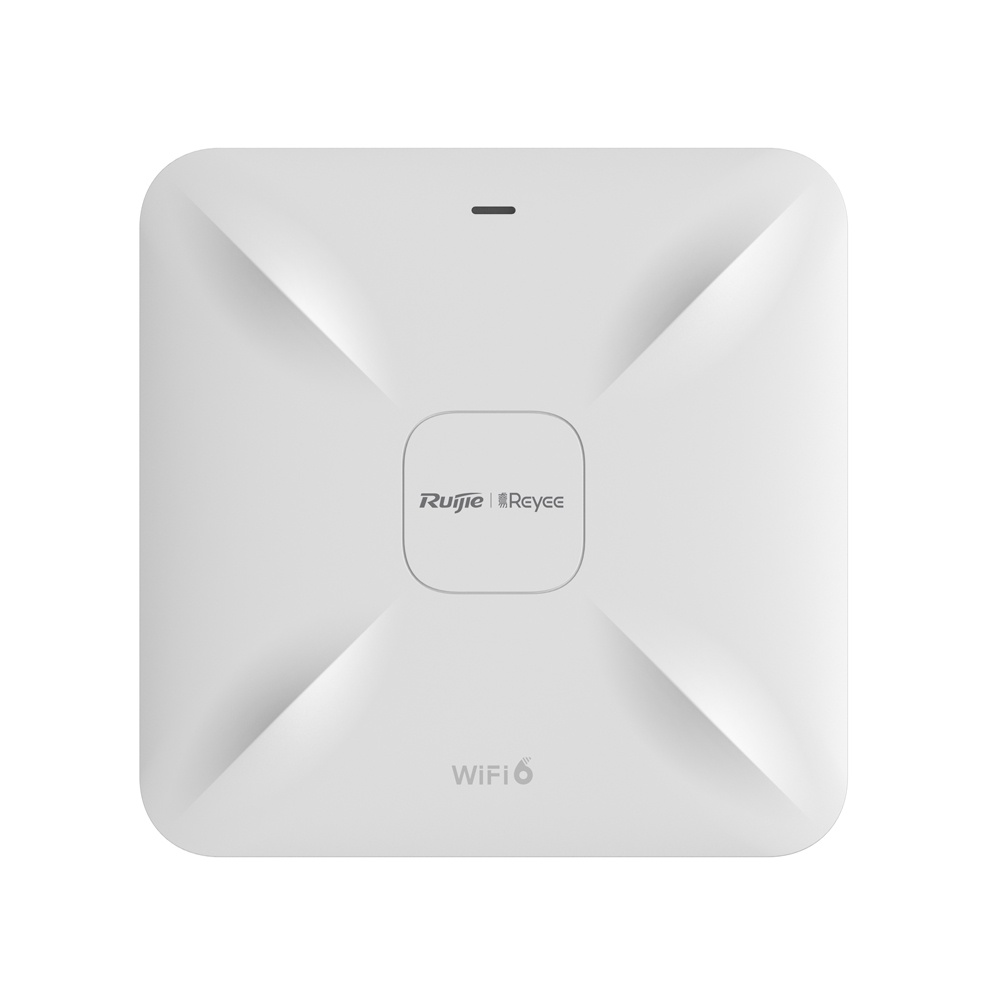

Gambar produk
