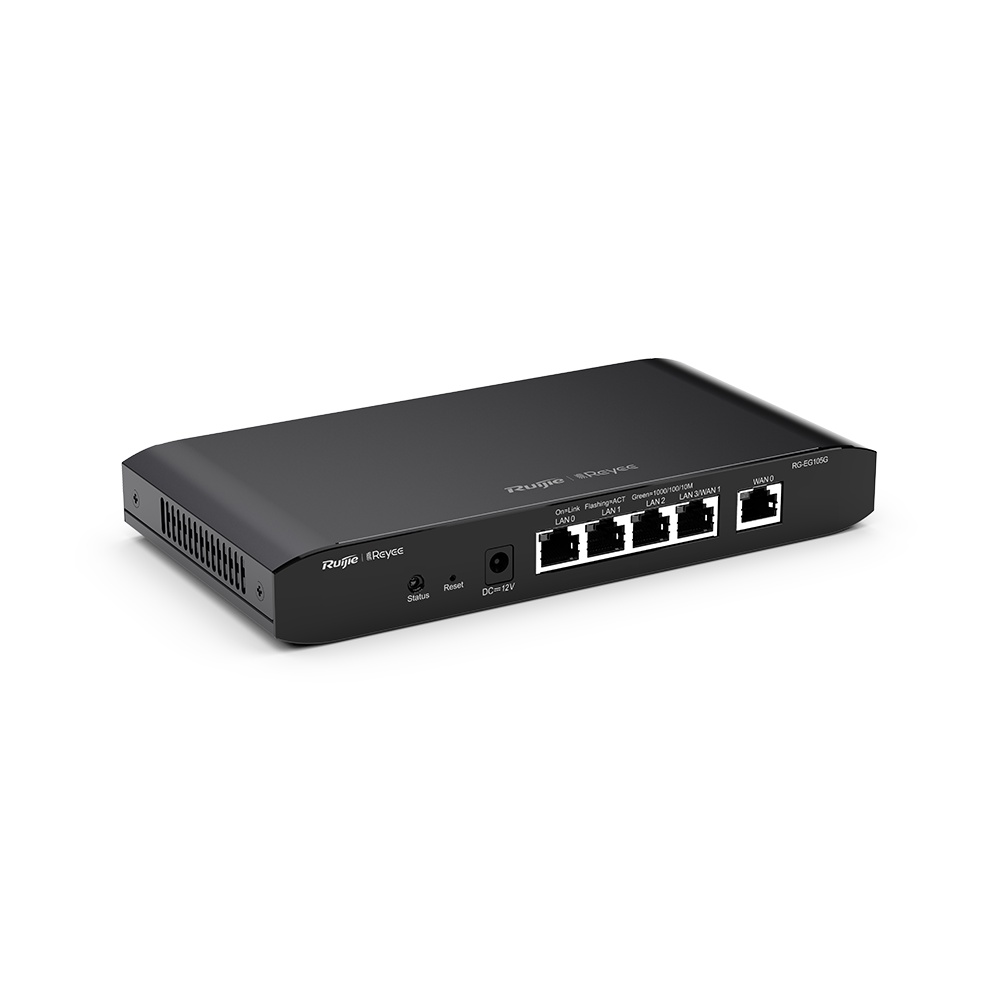

RUIJIE REYEE RG-EG105G 5 Port Gigabit Cloud Managed Router

Detail RUIJIE REYEE RG-EG105G 5 Port Gigabit Cloud Managed Router

SPECIFICATION :

Model


RG-EG105G

Basic specifications

Fixed ports


5 10/100/1000M Base-T ports，supporting up to 2 WAN ports

（Default: 1 WAN port，4 LAN ports

LAN3 can be switched to WAN1 port）

RAM


128MB

Flash


16MB

Maximum number of clients


Up to 100 concurrent clients

Local power supply


Support 220V AC local power supply

Power consumption


<6W

Basic network features

Network access


PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers

Routing


Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams

Security


ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping

Other protocols


DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS

Gateway

Application recognition


Built-in self-developed application signature database to identify applications

Support free upgrades

Flow control


Support custom flow control policies, IP-based automatic bandwidth assignment

Traffic audit


Real-time traffic audit, IP traffic visualization

Behavior management


Time-based and IP policy-based access control, website filtering

VPN


IPsec VPN (8 tunnels) server and client, L2TP, PPTP

Authentication


Marketing authentication: WiFiDog (SMS authentication and one-click authentication)

Local authentication: password authentication, QR code authentication, voucher authentication

Wireless management

Management capacity


In AC mode, the maximum management capacity is 300

In gateway mode, the maximum management capacity is 32

AP management


Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist

Roaming


Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track

Switch management

Management capacity


Maximum manageable cloud managed switches: 128

Port management


Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search

Status display


Port statistics, monitoring information, cable detection, VLAN configuration, MAC list

Upgrademanagement


Per-device upgrade, batch upgrade

Value added features

Featured solutions


Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution

Management


Eweb and Ruijie Cloud

Physical specifications

Dimensions


206.5×108.5×28 (mm)

Weight


0.84kg

Temperature


Operating temperature: 0 ~ 40 ℃

Storage temperature: -10 ℃ ~ 70
