Ruijie Reyee RG AP720L Wireless Access Point

Detail Ruijie Reyee RG AP720L Wireless Access Point

HARAP MEMASTIKAN STOK TERLEBIH DAHULU SEBELUM MELAKUKAN TRANSAKSI

Untuk pengiriman ke luar kota, Wajib tambahkan packing untuk keamanan pengiriman dengan link berikut ini,
untuk dus :
https://shopee.co.id/PACKING-KARDUS-i.75752086.11869241633?sp_atk=ccda4f9e-a299-446e-adbd-275a77480277
Buble wrap :
https://shopee.co.id/PACKING-BUBBLE-WARP-BUNGKUS-BARANG-ANTI-SHOCK-i.75752086.13345605923?sp_atk=8ddf707c-bf89-41ab-93ab-fe05fadd109a


Model : Ruijie AP720-L
Target Deployment : Retail Chain Store, Small & Medium-sized Business Office, Boutique Hotel
Type : Indoor Ceiling/Wall-mounting
Radio : Concurrent Dual-band
Protocol : 802.11a/b/g/n/ac Wave2
Operating Bands :
• 802.11b/g/n: 2.4GHz to 2.483GHz
• 802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)

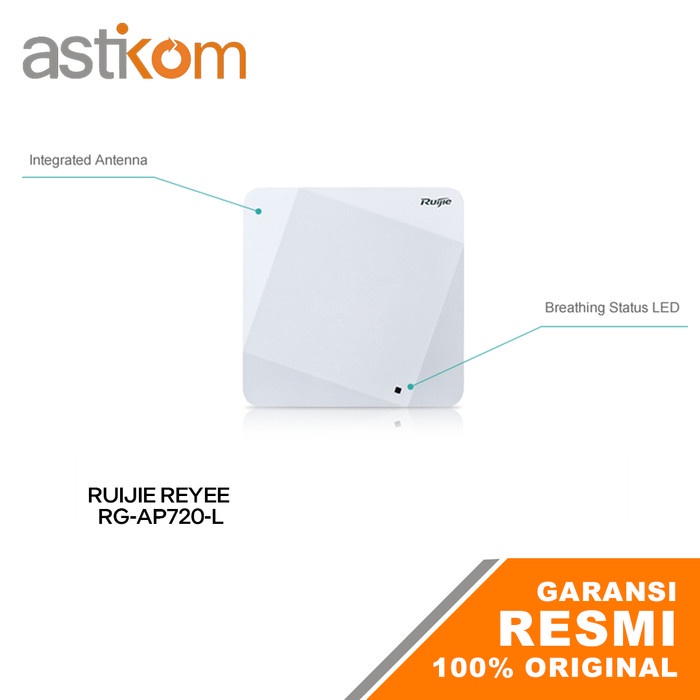

Antenna : Built-in Omni-directional Antenna
Antenna Gain :
• 2.4G: 3dBi
• 5G: 3dBi
Max Throughput :
• Maximum throughput of 2.4G: 300Mbps
• Maximum throughput of 5G: 867Mbps
• Maximum throughput per AP: 1167Mbps
Modulation :
• OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps
• DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps
• MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM
Receiver Sensitivity :
• 11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps）
• 11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps）
• 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15）
• 11ac HT20：-88dBm（MCS0）, -63dBm（MCS9）
• 11ac HT40：-85dBm（MCS0）, -60dBm（MCS9）
• 11ac HT80：-82dBm（MCS0）, -57dBm（MCS9
Spatial Streams : 2x2
Maximum Transmit Power : 100mW
IP Rating : IP41
Ports : 1 10/100/1000BASE-T Ethernet uplink Port LAN1 supports PoE 1 Console Port
Power Supply : (DC Power adapters should be purchased from third-party vendors separately if needed.)
• local power supply (DC 5V/3A) PoE (802.3af)
Power Consumption : <12.95W

Gambar produk
