RTC DS3231+ IC AT24C32 Real Time Clock Module for Arduino include battery

Detail RTC DS3231+ IC AT24C32 Real Time Clock Module for Arduino include battery

Spesifikasi:
1. Size: 38mm x 22mm x 14mm
2. Operating voltage: 3.3V - 5.5 V
3. Clock chip: high-precision clock chip DS3231
4. Clock Accuracy: 0-40 range, the accuracy 2ppm, the error was about 1 minute
5. Calendar alarm clock with two Programmable square-wave output
7. Real time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation.tduino
8. Chip temperature sensor comes with an accuracy of 3
9. Memory chips: AT24C32 (storage capacity 4KB)
10. IIC bus interface, the maximum transmission speed of 400KHz (working voltage of 5V)
11. Can be cascaded with other IIC device, 24C32 addresses can be shorted A0/A1/A2 modify default address is 0x57
12. Bonus Baterai CR2032

Kelengkapan:
1 module RTC DS3231 + EEPROM 24C32 (4KB)
1 baterai CR2032

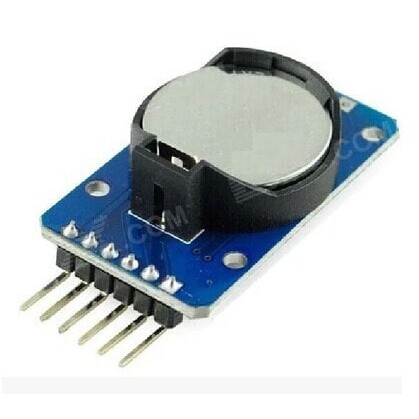

Gambar produk
