Router Tenda AC10 V3 AC1200 Smart Dual-Band WiFi Smart Wireless Router

Detail Router Tenda AC10 V3 AC1200 Smart Dual-Band WiFi Smart Wireless Router

AC10 offers dual-band Gigabit wireless with all-new 802.11ac Wave 2.0 standard. Its powerful 1GHz CPU provide the best performance in both 2.4GHz and 5GHz. The 5GHz band works at up to 867Mbps, while the 2.4GHz frequency tops 300Mbps, serving an incredible combined bandwidth of 1167Mbps.With 1 GHz CPU made with 28 nm process, AC10 manifests excellent capacity on data processing and energy conservation. It works well with optical fiber with bandwidth ranging from 50 M, 100 M, 200 M to even 1000 M, allowing you to enjoy smooth HD videos and games.

Standard & Protokol
IEEE802.3, IEEE802.3u, IEEE802.3ab

Antarmuka
1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports

Antena
4*6dBi external antennas

Tombol
1*WPS/Reset button

Daya Listrik
Input：AC 100-240V~50/60Hz, 0.4A
Output：DC 9V⎓1A

Ukuran
8.66 * 5.57 * 1.93 in (220*141.5*49mm)(W*D*H)

LED
Sys*1,WAN*1, LAN*1,WiFi/WPS*1

Standard Nirkabel
IEEE 802.11ac wave2/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz

Laju
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps

Frekuensi
Simultaneous dual-band 2.4 & 5GHz

Daya Transmit
CE:
<20dBm(2.4G)
<23dBm(5G)
FCC:<30dBm

Fitur dasar
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO

Keamanan Nirkabel
WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security : Enable /Disable

Jenis Koneksi Internet
PPPoE, Dynamic IP, Static IP
Support automatic access detection
Supports broadband account automatic transfer

Mode Operasi
Wireless Router Mode
AP Mode
Universal Repeater mode
WISP Mode

Server DHCP
DHCP Server
DHCP Client List
DHCP Reservation

Server Virtual
Port Forwaring
DMZ Host
UPnP

Keamanan
Client Filter（supports black list and white list）
Parental Control（supports black list and white list）
Remote Web Management

Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet

DDNS
Support DynDNS, 88ip

VPN
IPsec pass-through
PPTP pass-through
L2TP pass-through

Special Features
PPPoE Username/password Clone Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App

Perangkat Lunak Lain
Broadband management MAC address clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade from local

Suhu
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.

Kelembapan
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.

Sertifikasi
CE/FCC/RoHS

EIRP Power (Max.)
2.400-2.4835GHz: 19.95dBm (EIRP)
5.150-5.250GHz: 22.90dBm (EIRP)

Isi Paket:
- Wireless Router*1
- Gigabit Ethernet Cable*1
- Power Adapter*1
- Installation Guide*1

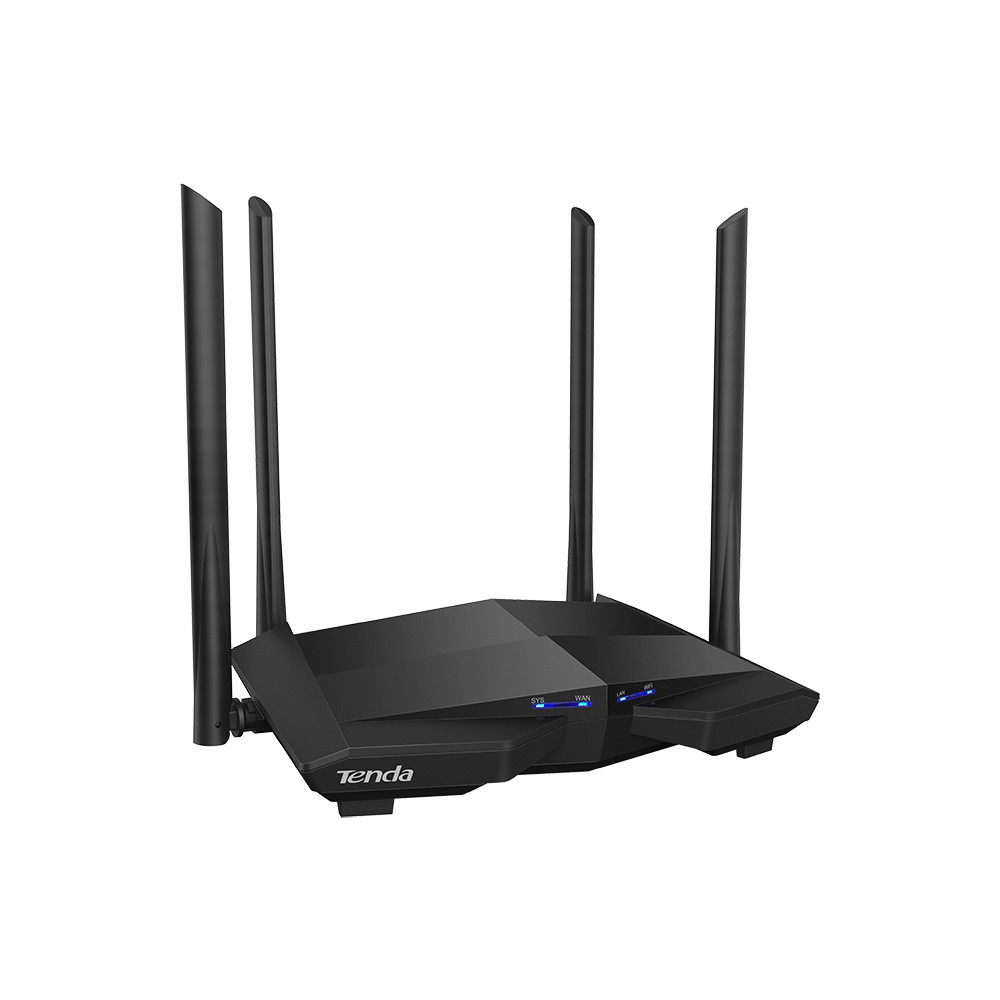

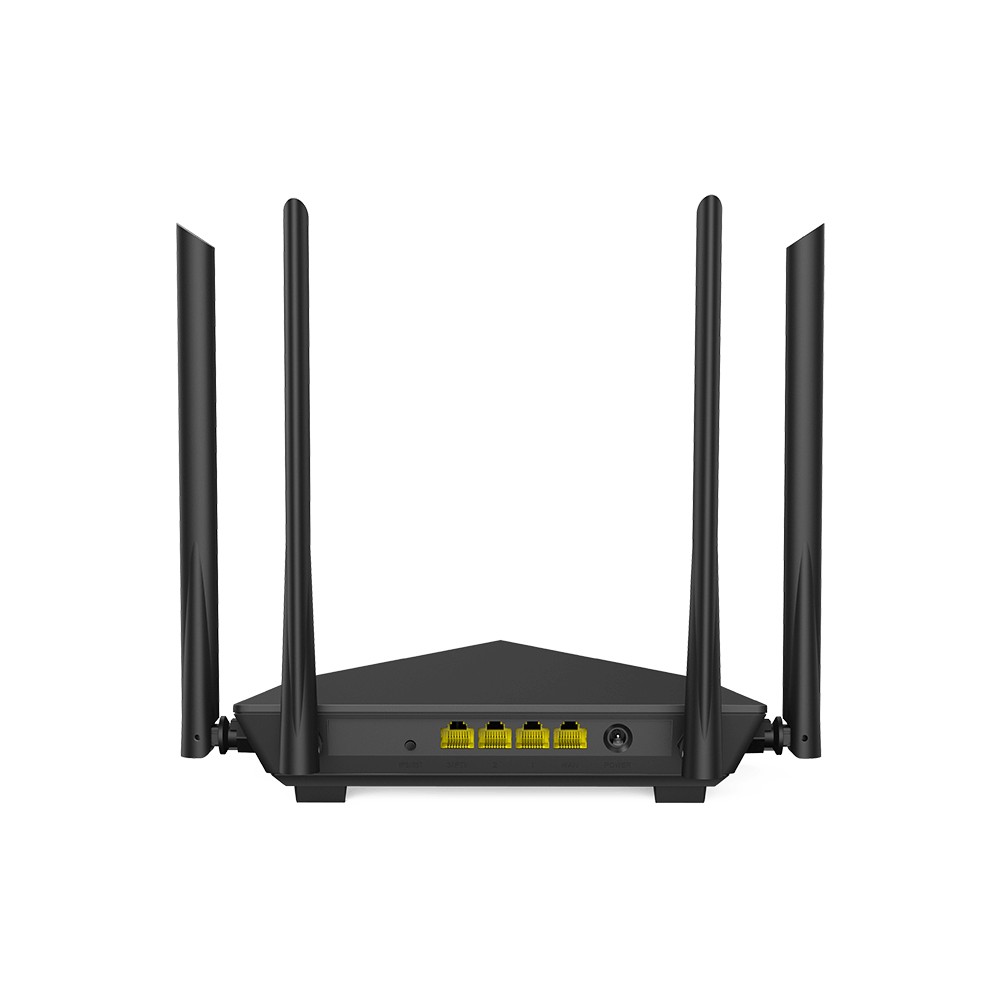

Gambar produk
