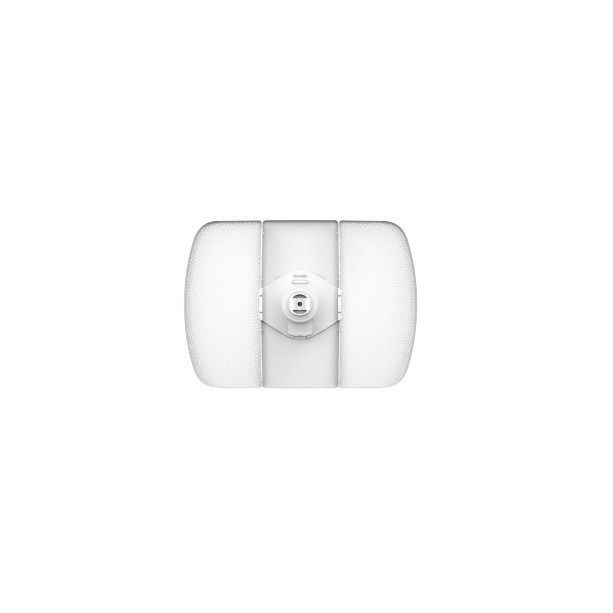

ROUTER AKSESPOINT OUTDOOR TENDA O9 5GHz 11ac 23dBi Gigabit Outdoor CPE

Detail ROUTER AKSESPOINT OUTDOOR TENDA O9 5GHz 11ac 23dBi Gigabit Outdoor CPE

Product Information
Model
O9
Dimension
391.5*280*223mm
Deployment
Pole Mount
Application Scenarios
PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Hardware
Frequency Range
5GHz
Compliant Standards
IEEE 802.11a/n/ac
Maximum Wireless Rate
867Mbps
Interfaces
1*10/100/1000Mbps Ethernet Port
Antenna Polarization
Dual Polarization
Antennas Gain
23dBi
Antenna Beamwidth
Horizontal: 10° Vertical: 10°
GND
/
Reset Button
1*Reset Button
Power Consumption
7.5W
Waterproof Level
IP65
LED Indicator
PoE/LAN,LED1,LED2,LED3
Power Method
24V0.5A Passive PoE
Lightning Protection
6000V
Passive PoE
Passive power over ethenet via PoE/LAN (+4,5pins
-7,8pins )
Voltage range: 21-25V DC
Reception Sensitivity
11a 6Mbps -96dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -65dBm±1.5dBm
Software
TDMA
Support
Operating mode
AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio
Support
SSID Hidden
Support
Wireless Client isolation
Support
SSID Isolation
Support
Channel Bandwidth
20/40/80MHz
Channel Shift
Support
Wireless Access Control
Support
Weak Signal Client Limitation
Support
Transmission Power
Adjustable power by 1dBm
WMM Capable
Support
APSD Capable
Support
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent Bridge
Support
VLAN Tagging for SSID
Support
DHCP Server
Support
VPN Pass-Through
PPTP,L2TP
Remote Web access
Support
Schedule Reboot
Support
Page Timeout
Support
Ping Watchdog
Support
Dyndns
noip, dyndns.org
Network Diagnoses
Ping, Traceroute, Signal Scan
Time and Date Setting
Support
Firmware upgrade
Support
Backup/Restore Configuration
Support
Username Managerment
Support
System Logs
Support
Managed By Controller
PC Software CPE Assistant
Others
Package Contents
1*5GHz 11ac 23dBi Gigabit Outdoor CPE O9
1*PoE Power Adapter
1*Power cord
1*Quick Installation Guide
Operation Temperature
-30℃ ~ 60℃
Storage Temperature
-40℃ ~ 70℃
Operating Humidity
10%~90% non-condensing
Storage Humidity
10%~90% non-condensing
Default login IP
192.168.2.1
Default Login Username
admin
Default Login Password
admin
Certification
FCC/CE/RoHS
