Detail ROUTER 4G SIMCARD ALL OPERATOR TP LINK MR 100
HARDWARE FEATURES Interface 1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot Button WPS/Reset Button External Power Supply(EU) 9V/0.85A Dimensions ( W x D x H ) 6.06×4.49×1.42 in ( 154×114×36 mm) Antenna 2 Detachable External 4G LTE Antennas WIRELESS FEATURES Wireless Standards IEEE 802.11b/g/n Frequency 2.4 GHz Signal Rate 300 Mbps Reception Sensitivity 11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -68 dBm Transmit Power < 20 dBm (2.4 GHz) Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics WAN Failover Yes Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions Network Type 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) SOFTWARE FEATURES Security IPv4 SPI Firewall, IP and MAC Address Binding Operating Modes 3G/4G Router, Wireless Router WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) Management Local Management, Remote Management DHCP Server, DHCP Client List, Address Reservation Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS DynDns, NO-IP Protocols IPv4, IPv6 Guest Network 2.4 GHz Guest Network Administration Upgrade Firmware, Factory Default, System Log, Diagnostic Tools OTHERS Certification CE, RoHS Package Contents 300 Mbps Wireless N 4G LTE TL-MR100 Power Adapter RJ45 Ethernet Cable Quick Installation Guide Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Micro SIM Card Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

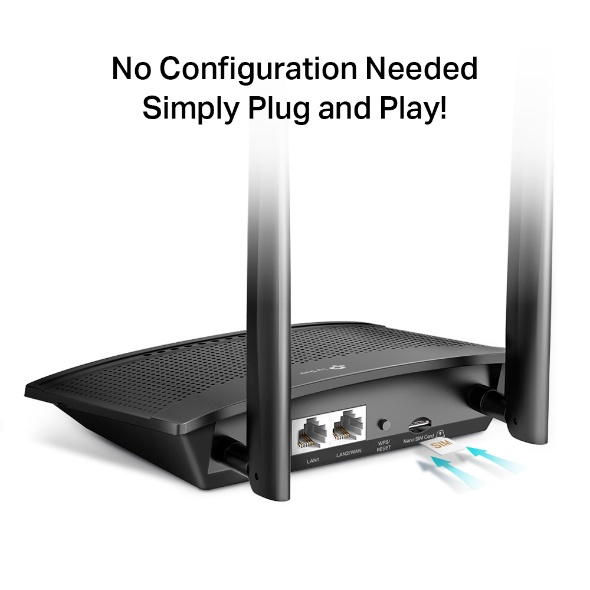

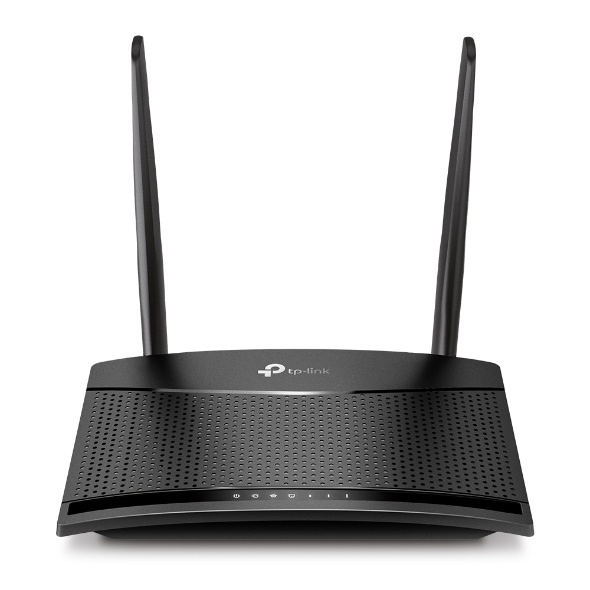

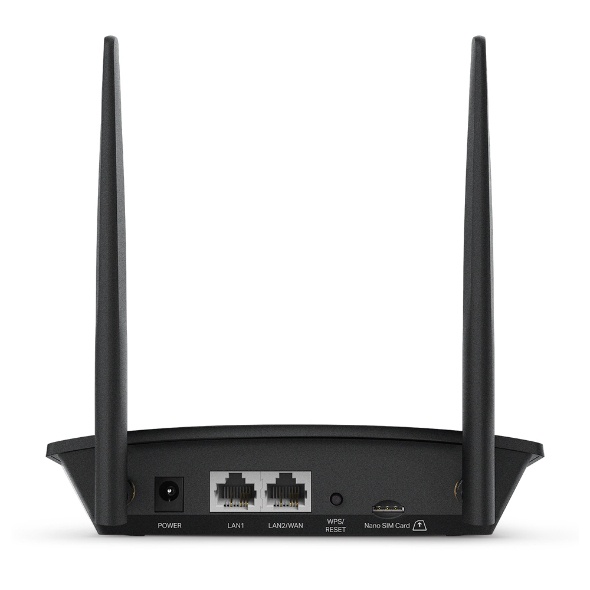

Gambar produk
ROUTER 4G SIMCARD ALL OPERATOR TP LINK MR 100ROUTER 4G SIMCARD ALL OPERATOR TP LINK MR 100ROUTER 4G SIMCARD ALL OPERATOR TP LINK MR 100ROUTER 4G SIMCARD ALL OPERATOR TP LINK MR 100
