Rotary Wire Stripper Coaxial Cable RG-58 59 RG6 Pengupas Kabel CCTV

Detail Rotary Wire Stripper Coaxial Cable RG-58 59 RG6 Pengupas Kabel CCTV

JUAL : Rotary Wire Stripper Coaxial Cable RG-58 59 RG6 Pengupas Kabel CCTV

Suitable for stripping the following cables : Coaxial (CCTV) Cable RG-58, RG59, RG62, RG6

Features :

Adjustable blade depth for varying coax cable diameters.
Self-regulating stripping method.
Pre-set strip lengths for most common strip lengths.
Clear cable illustration on top of Coaxial cable stripper for cable placement and embossed arrow for spin direction.
High-performance coaxial cable stripper with strong ergonomic design.

Spec :

Model : MT-332
Color : Grey
Material : Plastic ABS + tool steel
Size : 10 cm x 3.5 cm x 2 cm

Operating Instructions:

Stripping Length: This tool strips cables of three different lengths: 6mm (RG6 - 5C2V), 8mm (RG-58 - 3C2V), and 9mm (RG-59/62 - 4C2V)

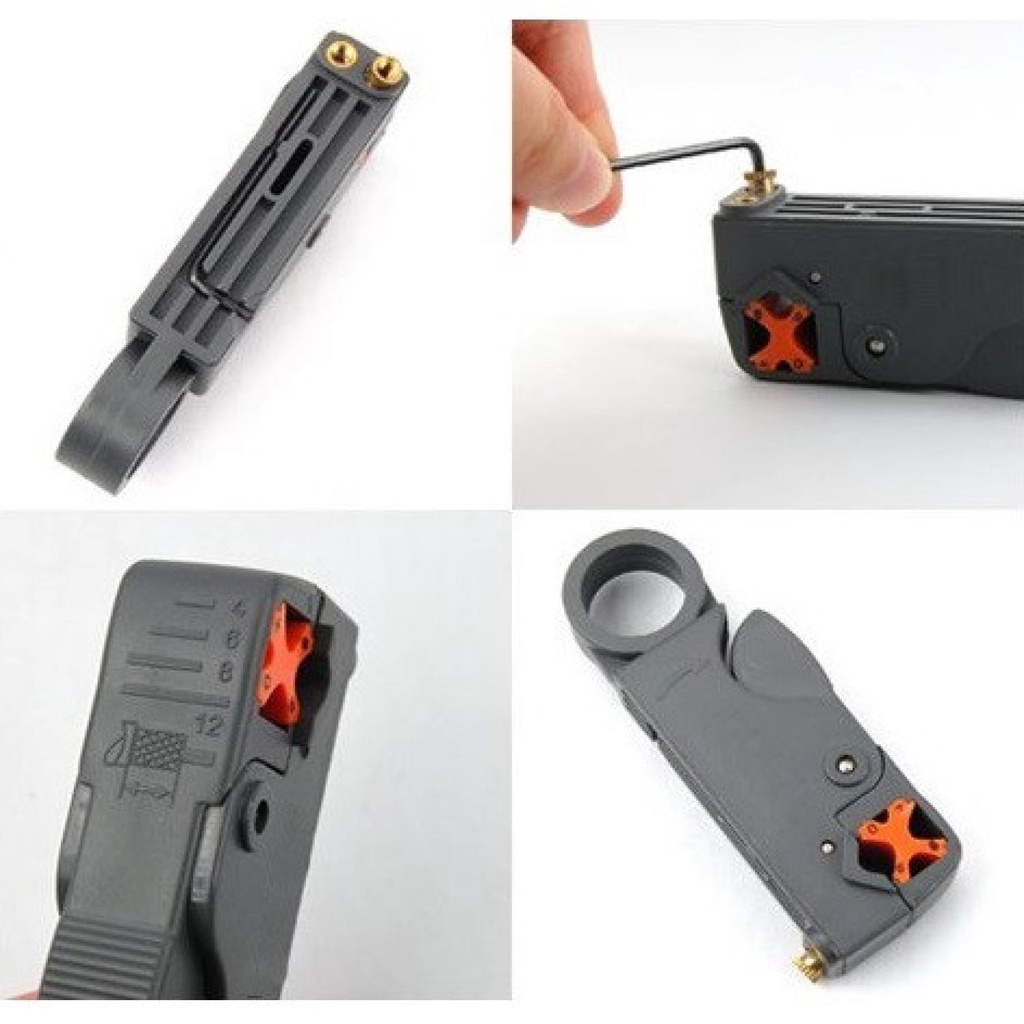

Blade's Depth Adjustment: remove the hex wrench stored underneath the tool and insert it into the blade's depth adjuster located at the bottom of the same tool. Rotate the hex wrench clockwise to cut smaller cables, counterclockwise for larger cables. Repeat the same operation for the other blade.

Stripping Procedures:

Use the tip of hex wrench to push the V-block out of the housing.
Align the desired value (6, 8, 9 or D) to the triangle and push the V-block back inside its housing.
Press the knurled portion of the tool to open stripping jaws.
Insert the cable through the V-block until it rests on the V-shaped cable support.
Release the knurled portion of the tool to close the jaws.
Insert your index finger into the tool's ring and turn the the tool clockwise 1-4 times.
Open jaws and remove the stripped cable.

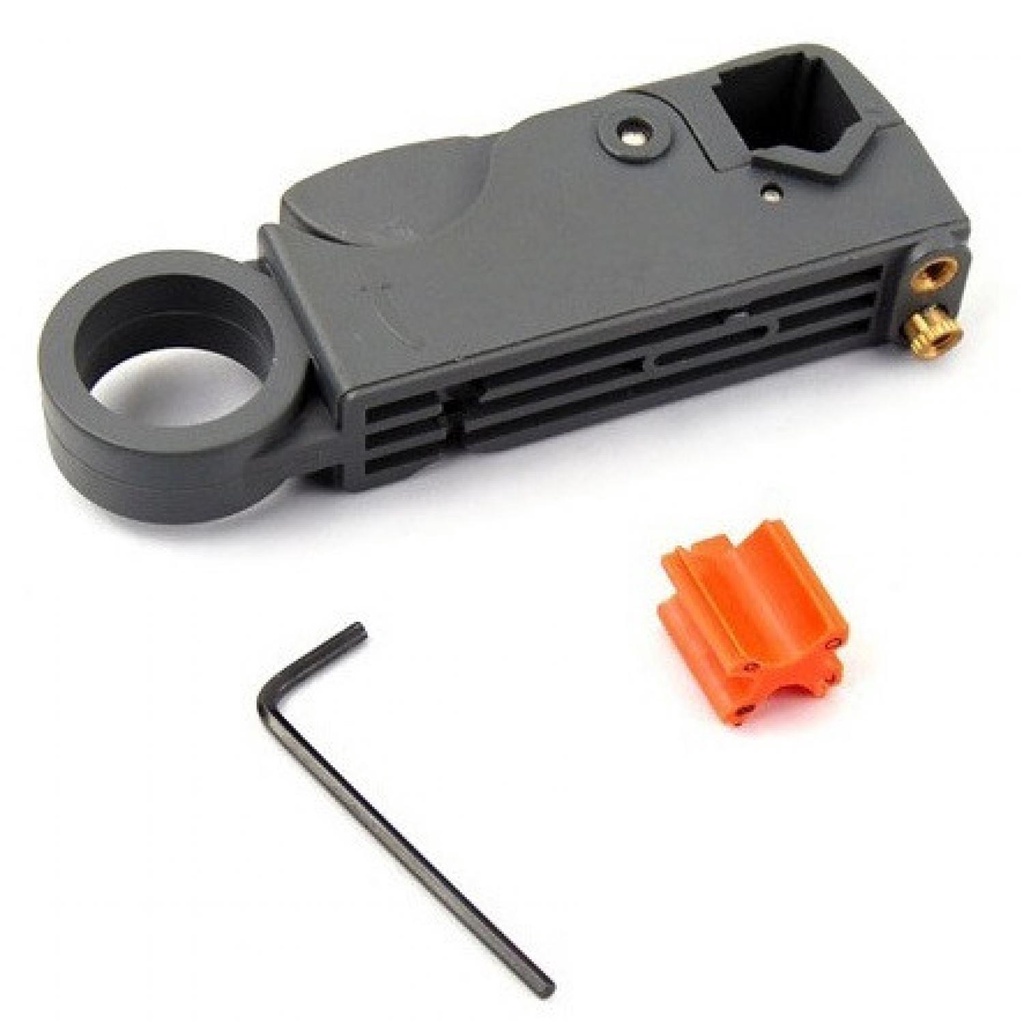

Isi Paket :

1 x Wire / Cable Stripper 332
1 x kunci L untuk adjust jarak antara blade

Gambar produk
