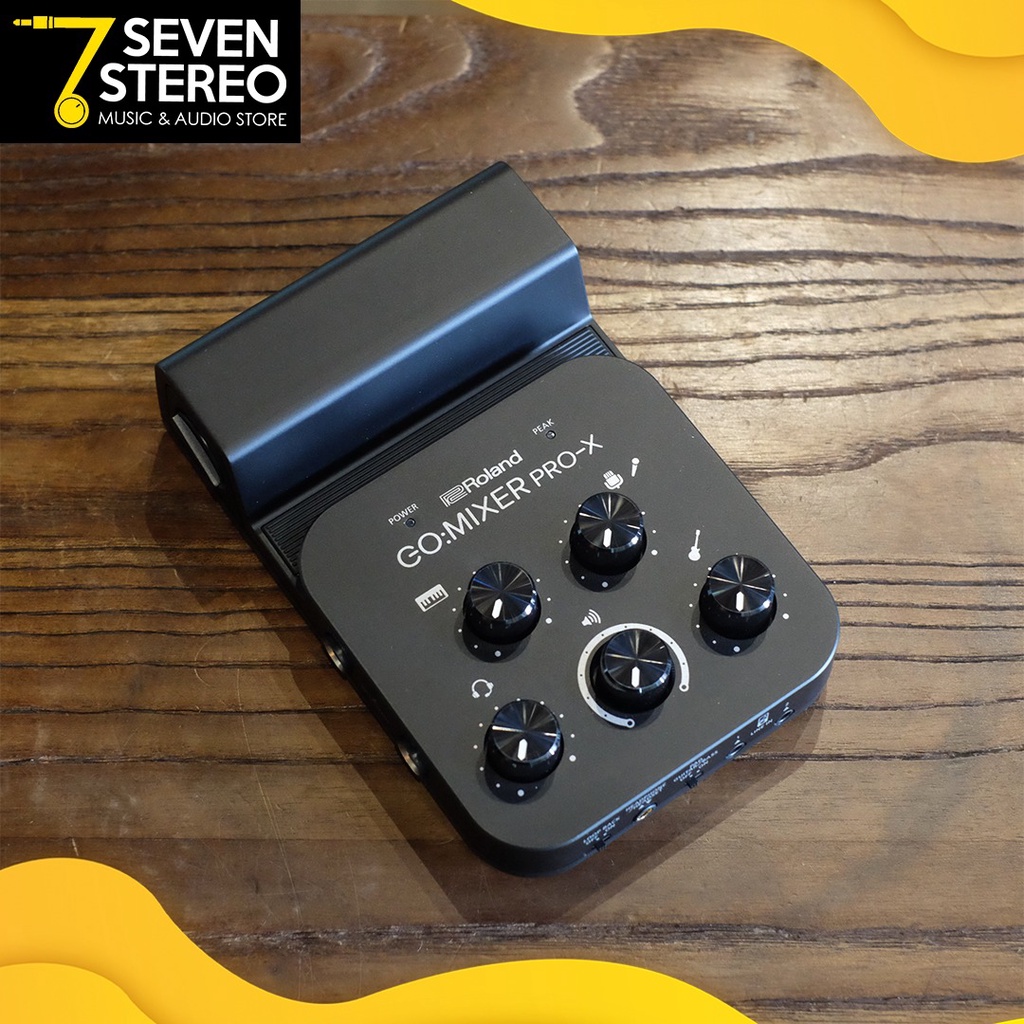

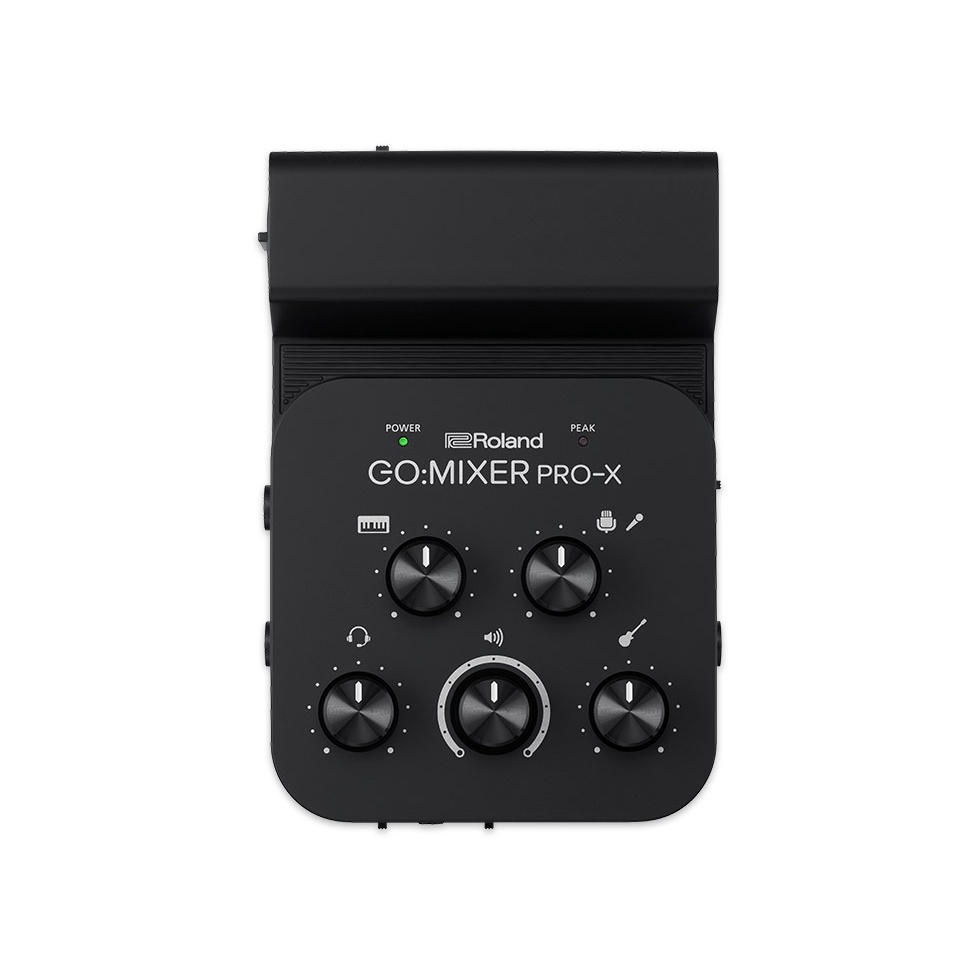

Roland GOMIXER Go MIxer Pro X Audio Mixer Smartphone

Detail Roland GOMIXER Go MIxer Pro X Audio Mixer Smartphone

SPECIFICATIONSNumber of Audio ChannelsInput: 11 channels
Output: 3 channelsConnectorsINSTRUMENT (L/MONO, R) jacks: 1/4-inch phone type
LINE IN 1 jack: Stereo miniature phone type
LINE IN 2 jack: Stereo miniature phone type
GUITAR/BASS jack: 1/4-inch phone type (supports high impedance)
SMARTPHONE IN/OUT jack: Stereo Miniature phone type (Stereo, CTIA)
MIC jack: Combo type (XLR, 1/4-inch TRS phone, phantom power DC 48 V, 6 mA max.)
HEADPHONE/HEADSET jack: Stereo Miniature phone type (Stereo, CTIA)
USB port: USB Micro-B typeControllerINSTRUMENT knob
GUITAR/BASS knob
MIC knob
HEADSET MIC knob
HEADPHONE/SMARTPHONE OUT knob
LOOP BACK switch
PAD GUITAR/BASS switch
PHANTOM POWER switch
BATTERY switchIndicatorPOWER indicator
PEAK indicatorPower SupplyUSB Bus Power
Alkaline battery (AAA, LR03) x 4
Rechargeable Ni-MH battery (AAA, HR03) x 4Current Draw170 mABattery life for continuous useAlkaline battery: Approximately 4 hours
* When setting the [BATTERY] switch to the "ON" position.
* Differs depending on the conditions of use.AccessoriesLeaflet "Downloading the Owners Manual"
Leaflet "USING THE UNIT SAFELY"
Lightning to USB Micro-B type cable
USB Type-C(TM) to USB Micro-B type cable
3.5mm TRRS Audio cableCompatible ProductPlease check the URL for the latest compatible information.
