Detail ROBOTDYN UNO WIFI R3 ESP8266 32MB FLASH ARDUINO UNO WIFI
SPESIFIKASI :* Microcontroller : ATmega328
* IC Wi-Fi : ESP8266
* USB-TTL converter : CH340G
* Power Out : 5V-800mA
* Power IN. USB : 5V (500mA max.)
* Power IN. VIN/DC Jack : 9-24V
* Power Consumption : 5V 800mA
* Logic Level : 5V
* Wifi : Wi-Fi 802.11 b/g/n 2.4 GHz
* USB : Micro USB
* Clock Frequency : 16MHz
* Operating Supply Voltage : 5V
* Digital I/O : 14
* Analog I/O : 6
* Memory Size : 32Mb
* Interface Type : serial\OTA
* Operating temperature : 40/+125
* LengthWidth : 53.3468.58mm
* Antenna : Buil-in\external antenna
KELENGKAPAN :
* 1pcs UNO+WiFi R3 ATmega328P+ESP8266, 32Mb flash, USB-TTL CH340G, Micro-USB

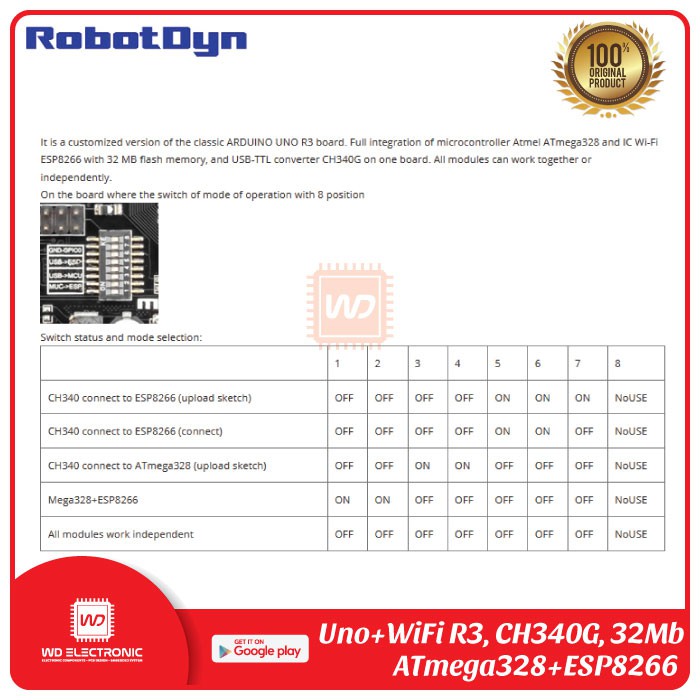

Gambar produk
