ROBOTDYN SHIELD CONTACT RELAY FOR WIFI D1 MINI RELAY WEMOS D1 MINI
Deskripsi singkat
Komputer & Aksesoris > Proyektor & Aksesoris > Pointer > ROBOTDYN SHIELD CONTACT RELAY FOR WIFI D1 MINI RELAY WEMOS D1 MINI
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail ROBOTDYN SHIELD CONTACT RELAY FOR WIFI D1 MINI RELAY WEMOS D1 MINI

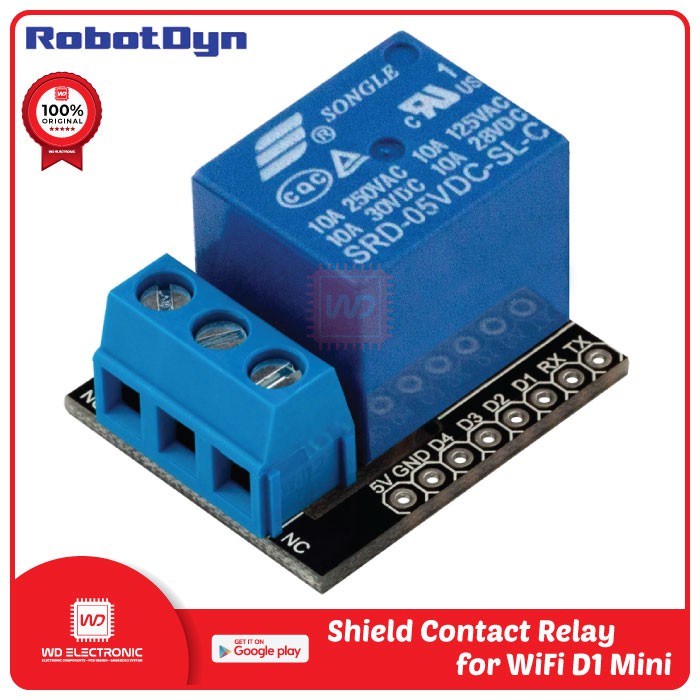

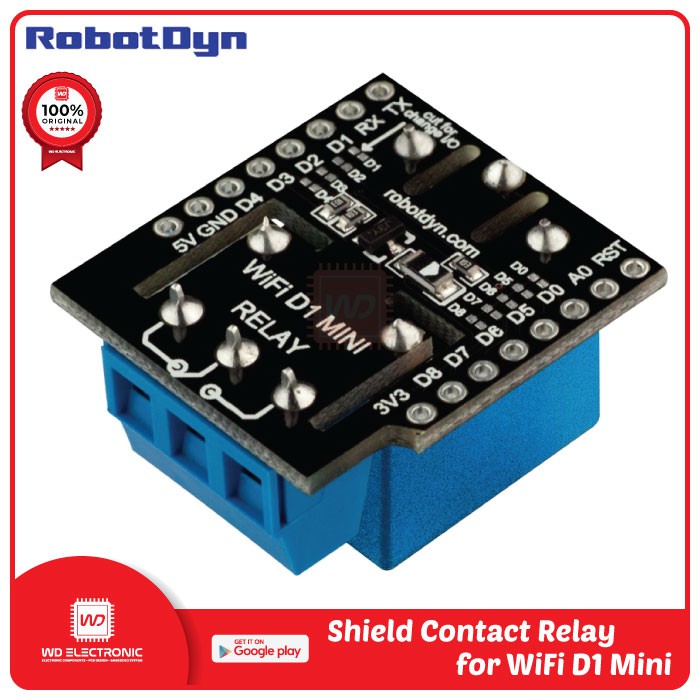

A very common Contact Relay to control the AC (light, home equipment, etc.) or DC load using WeMos / WiFi D1 mini PRO board. Control pin of Relay is connected to the D1 I/O port on the D1 mini. If you wish to use another I/O port, just cut off of the connection to D1 and solder it to another pad, as needed.SPESIFIKASI :
- Control circuit voltage: 5V DC
- Load circuit maximum voltage: 110/220V AC or 30V DC
- Load circuit maximum current: 10A

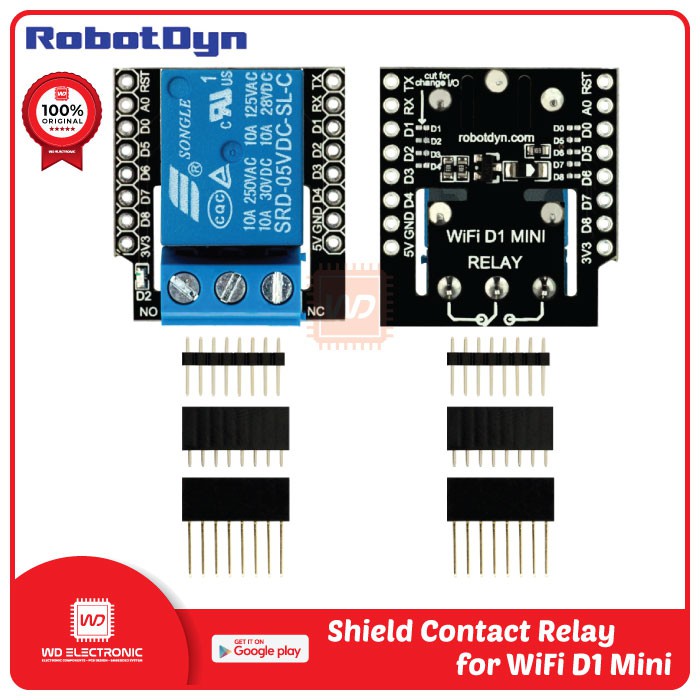

KELENGKAPAN :
- Relay Module Shield - 1pc
- Male Pin Header 1x8pins - 2pcs
- Female Pin Header - BLACK 1x8pins - 2pcs
- Stackable Header - BLACK 1x8pins - 2pcs
Gambar produk
