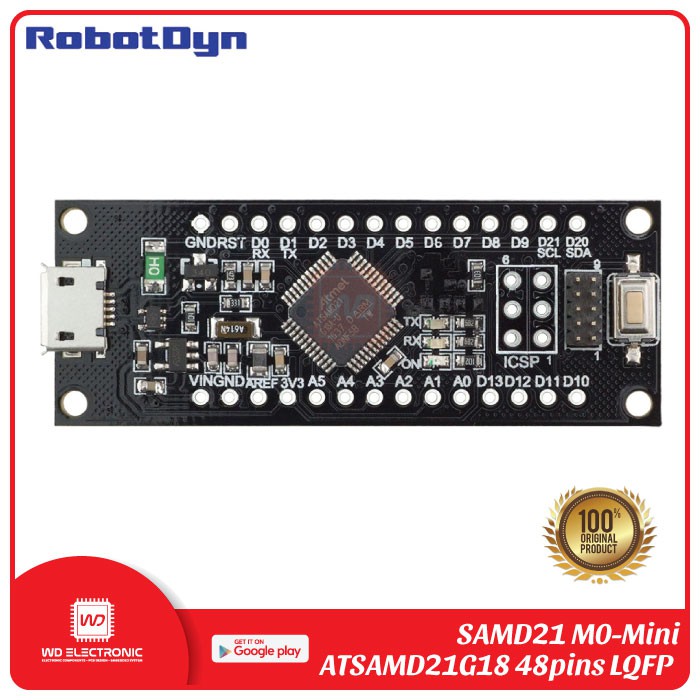

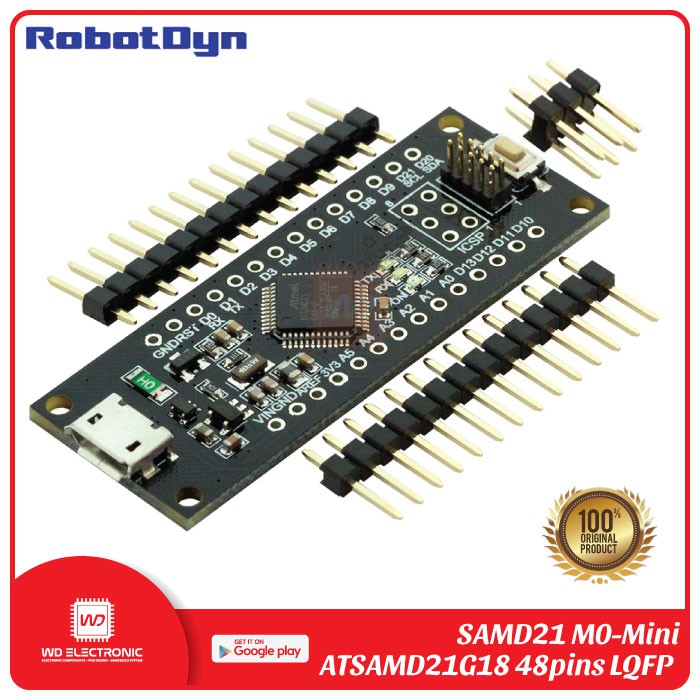

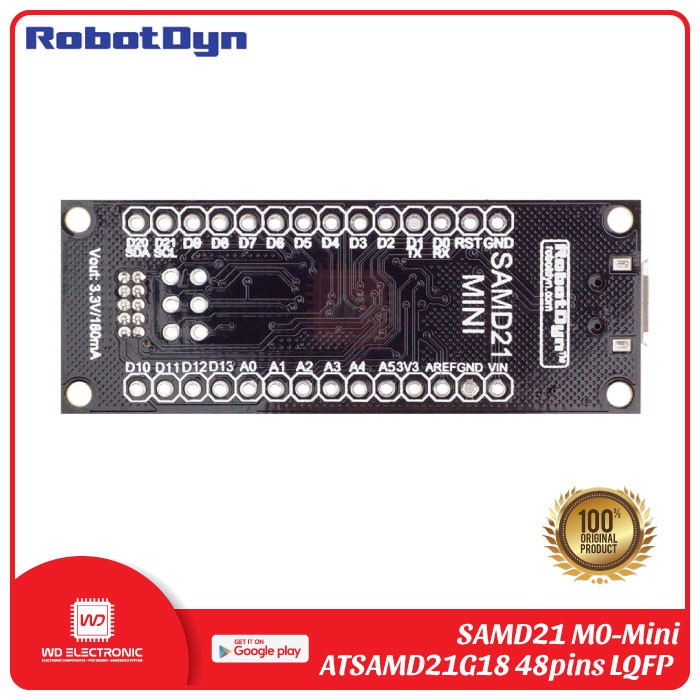

ROBOTDYN SAMD21 M0 MINI ORIGINAL SAMD21 MCU

Detail ROBOTDYN SAMD21 M0 MINI ORIGINAL SAMD21 MCU

The RobotDyn SAMD21 M0 represents a powerful, 32-bit extension of the Arduino UNO platform. The board is powered by Atmel’s SAMD21 MCU, featuring a 32-bit ARM Cortex® M0 core.
Compatible with Arduino M0.
The SAMD21 M0 board expands the family by providing increased performance, enabling a variety of project opportunities for devices, and acts as a great educational tool for learning about 32-bit application development.
The Zero applications span from smart IoT devices, wearable technology, high-tech automation, to crazy robotics. The board is powered by Atmel’s SAMD21 MCU, which features a 32-bit ARM Cortex® M0+ core.

SPESIFIKASI :
- Microcontroller ATSAMD21G18 48pins LQFP
- Power Out 3.3V-800mA
- Power IN. USB 5V
- Power IN. VIN/DC Jack 5V
- Power Consumption 3.3V 220mA
- Logic Level 3.3V
- USB Micro USB
- Clock Frequency 48MHz
- Operating Supply Voltage 3.3V

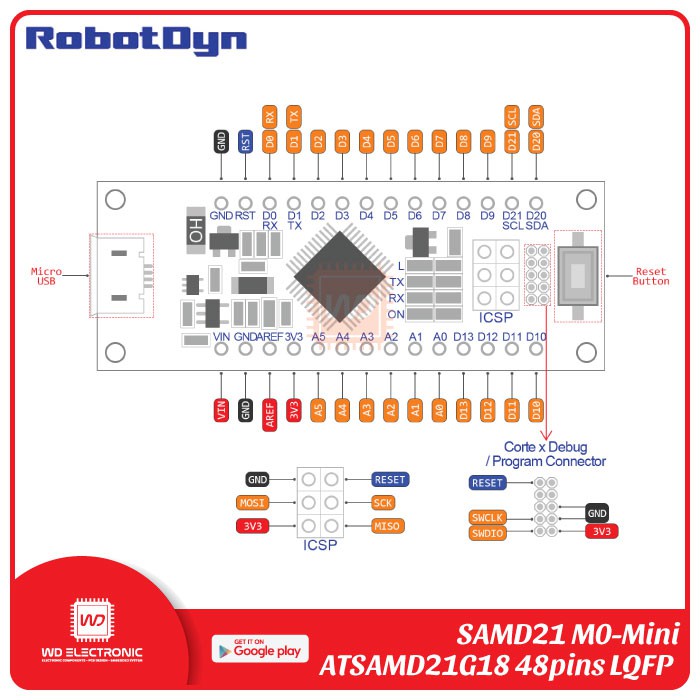

- GPIO 25
- Digital I/O 19(12-PWM)
- Analog I/O 6
- Data RAM Type/Size 32Kb
- Data ROM Type/Size 256Kb
- Interface Type ISP
- Operating temperature −40С°/+85С°

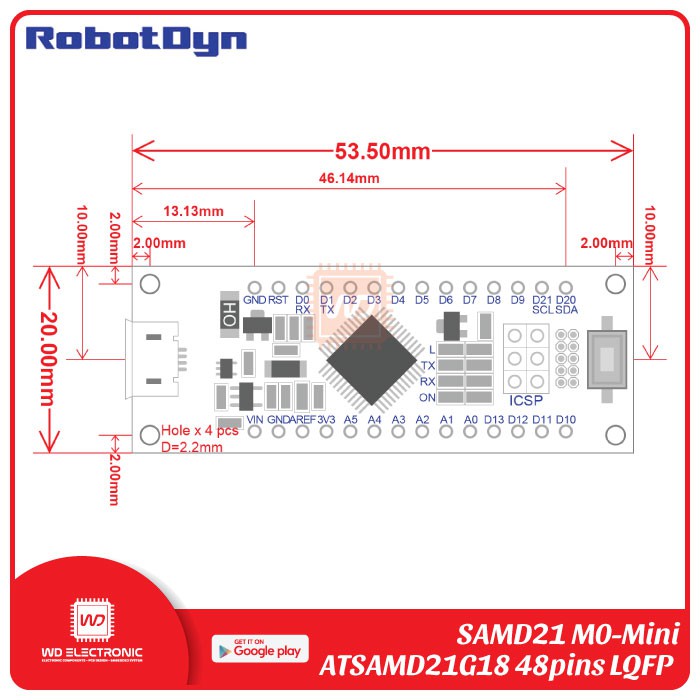

- Length×Width 56.5×18mm

KELENGKAPAN :
- 1pcs RobotDyn SAMD21 M0 Mini

Gambar produk
