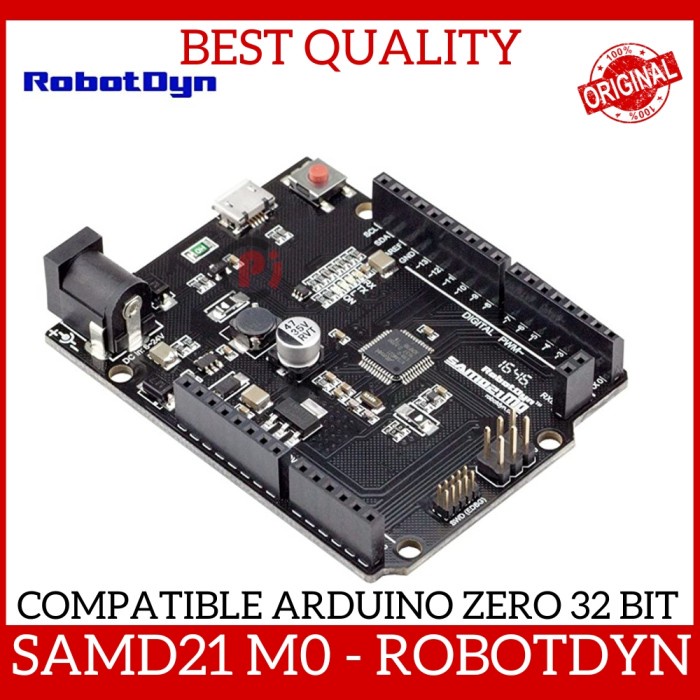

ROBOTDYN SAMD21 M0 Compatible Arduino Zero 32 Bit Micro Python Board

Detail ROBOTDYN SAMD21 M0 Compatible Arduino Zero 32 Bit Micro Python Board

Harga 1 Pcs

Microcontroller : ATSAMD21G18, 48pins LQFP
Operating Voltage : 3.3V
Clock Speed : 48 MHz
Input Voltage : 6-24V, USB 5V (recommended 7-9V)
Vout Digital Pin : 3.3V/800mA
Digital I/O Pins : 20
PWM Pins : All but pins 2 and 7
Analog In Pins : 6 (12-bit ADC channels)
Analog Out Pins : 1 (10-bit DAC)
External Interrupts : All pins except pin 4

The RobotDyn SAMD21 M0 represents a powerful, 32-bit extension of the Arduino
UNO platform. The board is powered by Atmels SAMD21 MCU, featuring a 32-bit ARM
Cortex M0 core.
Compatible with Arduino Zero and Arduino M0.
The SAMD21 M0 board expands the family by providing increased performance,
enabling a variety of project opportunities for devices, and acts as a great
educational tool for learning about 32-bit application development.
The Zero applications span from smart IoT devices, wearable technology,
high-tech automation, to crazy robotics. The board is powered by Atmels SAMD21
MCU, which features a 32-bit ARM Cortex M0+ core. One of its most important
features is Atmels Embedded Debugger (EDBG), which provides a full debug
interface without the need for additional hardware, significantly increasing the
ease-of-use for software debugging. EDBG also supports a virtual COM port that
can be used for device and bootloader programming.
