RobotDyn Relay SSR Wifi IoT ESP01 SSR Relay Module AC 4A-600V (NO ESP)

Detail RobotDyn Relay SSR Wifi IoT ESP01 SSR Relay Module AC 4A-600V (NO ESP)

**Selamat datang di EasyWare Electronics**
Mohon dibaca terlebih dahulu!
- Sebaiknya tanyakan stok terlebih dahulu
- Pengiriman via Gosend atau Grab sebaiknya dikomunikasikan terlebih dahulu
- Biasakan baca catatan toko dan deskripsi
- Kunjungi toko kami dan cek barang-barang keren lainnya

Relay module dari RobotDyn. Barang ini original 100% dan merupakan produk terbaru dari RobotDyn. Sebelum membeli, jangan lupa pilih variannya terlebih dahulu yah gan/sist❤️. Terima kasih

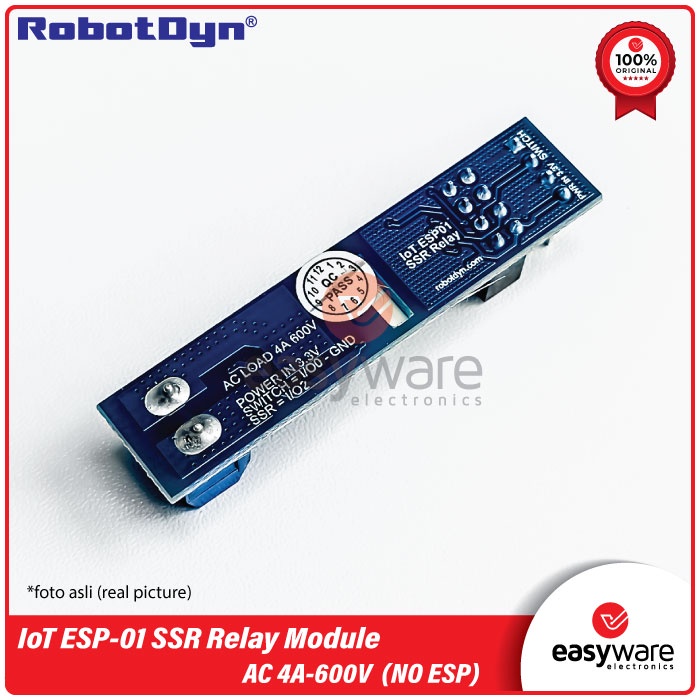

IoT ESP-01 SSR Relay module AC 4A - 600V ( Without ESp01 )
This ESP01 WiFi IoT SSR relay is based on and controls the WIFI module of the ESP-01 ESP8266 microcontroller.
It is designed for smart home, Internet stuff and other DIY projects. With this ESP01 SSR module,
you will easily self-commend you to control any device via phone, voice assistant or any other device via internet.

For 3.3V DC power usage with low consumption ~ 10mA
Also can connect wall switch or button for external function.
With this module can control AC load to max 4A 600V.

Specification and Feature :
- V AC :AC MAX 600V/4A
- Operating Voltage :3.3V
- Signal level :10mA
- Thyristor BT136 :600B
- optoisolator :MOC3042
- Switch on :dry contact
-Operating temperature : 20 to 80°C (-5 to 175°F)
- Isolation : V/s of 2000 V/μs typical, 1000 V/μs guaranteed
- On/off time : 20ms, ac; 05 cycle

Safety and regulatory approvals for Components:
-UL1577, 4,170 VACRMS for 1 minute
-DIN EN/IEC60747-5-5

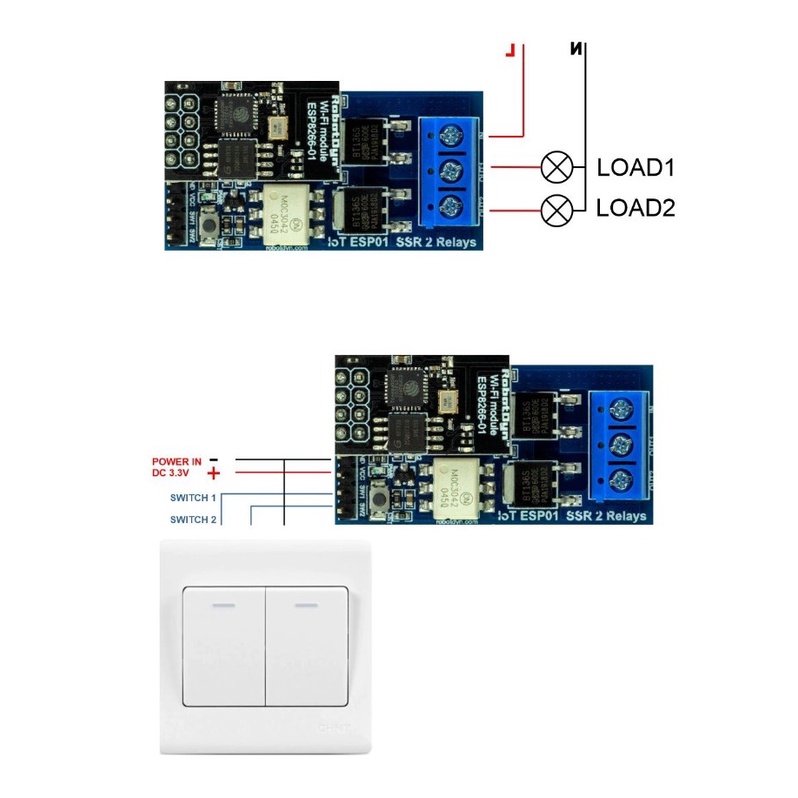

Connection of 1 line module:
- SSR = ESP01 - GPI/O1 (HIGH - ON)
- Intake switch = GPI/O0 + GND (low-level push switch)


Package :
1 x RobotDyn Relay SSR Wifi IoT ESP01 SSR Relay Module AC 4A-600V

Gambar produk
