*** Bismillah ...

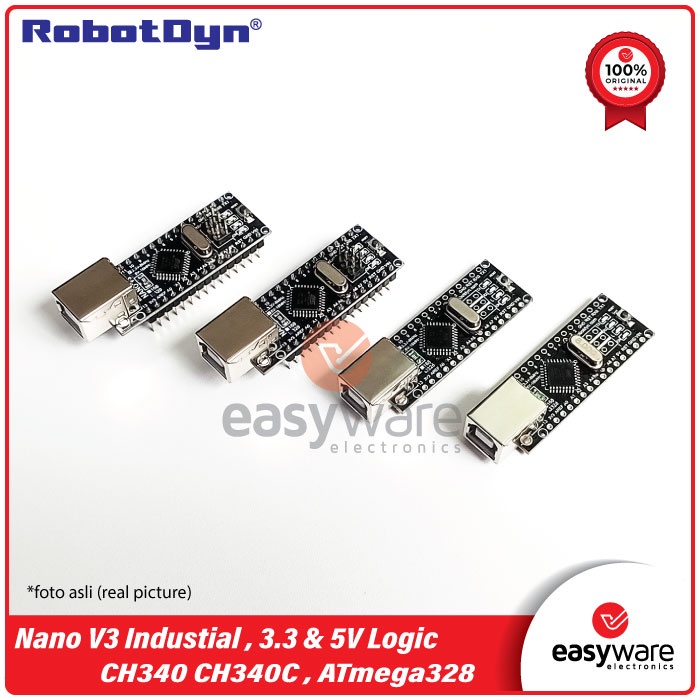

Sebelum order silakan pilih variannya terlebih dahulu, jika memilih varian SOLDERED itu berarti sudah ada pin headernya dan tersolder.
Jika UNSOLDERED itu tidak ada pin headernya (NO PIN HEADER)
Terima kasih ... ***

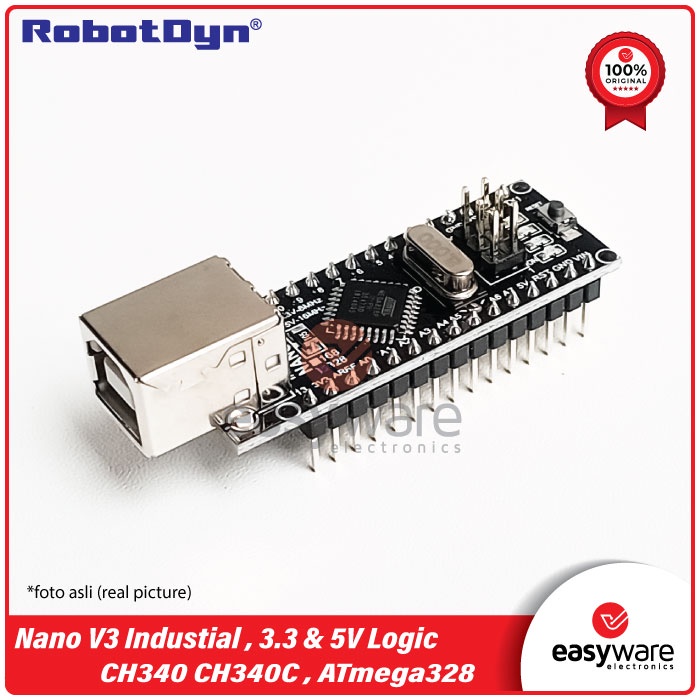

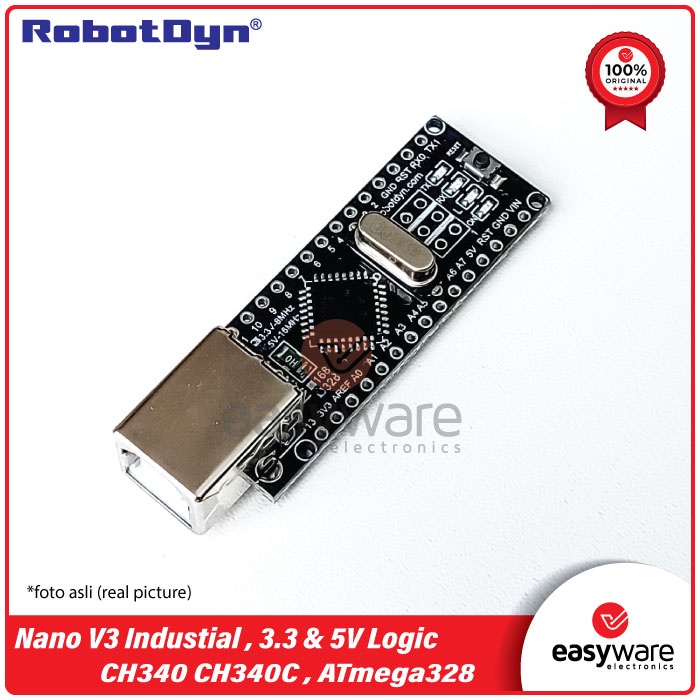

Industrial version of the well-known NANO V3. While still based on an ATmega328, it features a more powerful voltage regulator (up to 800mA) and a USB Type B socket. Also this board brings a user-selectable logic level (3.3V/5V). More robust, more reliable and suited for industrial applications!

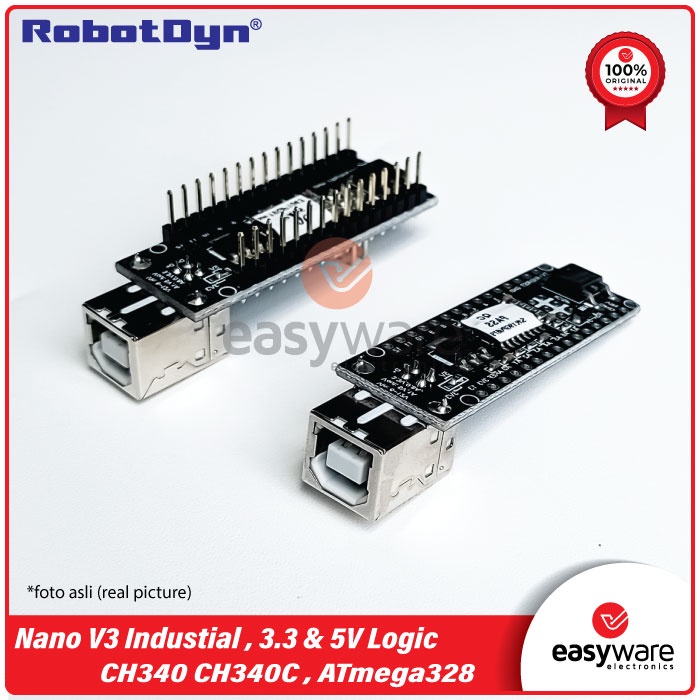

It is fully compatible with our classical Nano, also offering additional Analog ports (A6, A7). To reduce the size, components are mounted on both sides of the PCB. The board uses a CH340C UART-USB converter.
NANO V3 can be powered via microUSB-port (up to 500mA) or via an external power supply (6-9V, up to 12V input with sufficient cooling).

FITUR DAN SPESIFIKASI :

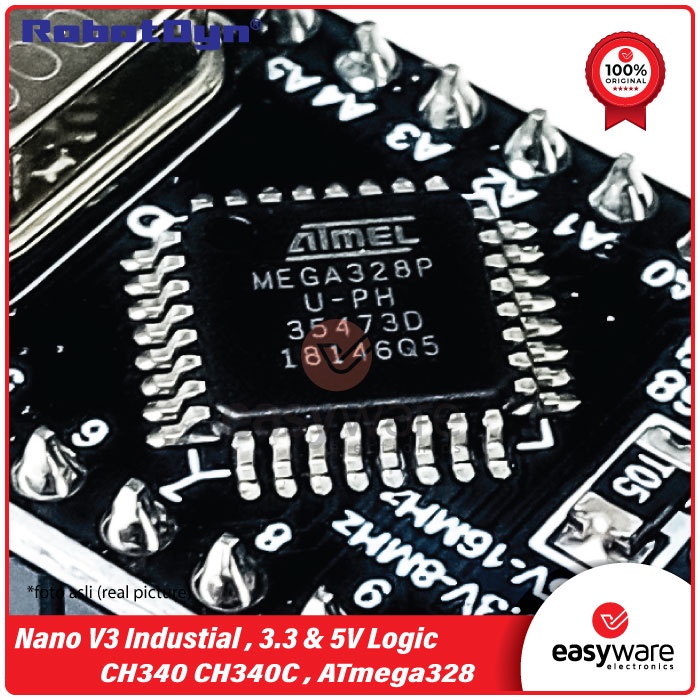

- Microcontroller: ATMega328
- USB-TTL converter: CH340C
- Power Out: 5V-800mA and 3.3V-800mA
- Power IN. USB: 5V (500mA max.)
- Power IN. VIN/DC Jack: 5
- Power Consumption: 20mA
- Logic Level: 5V

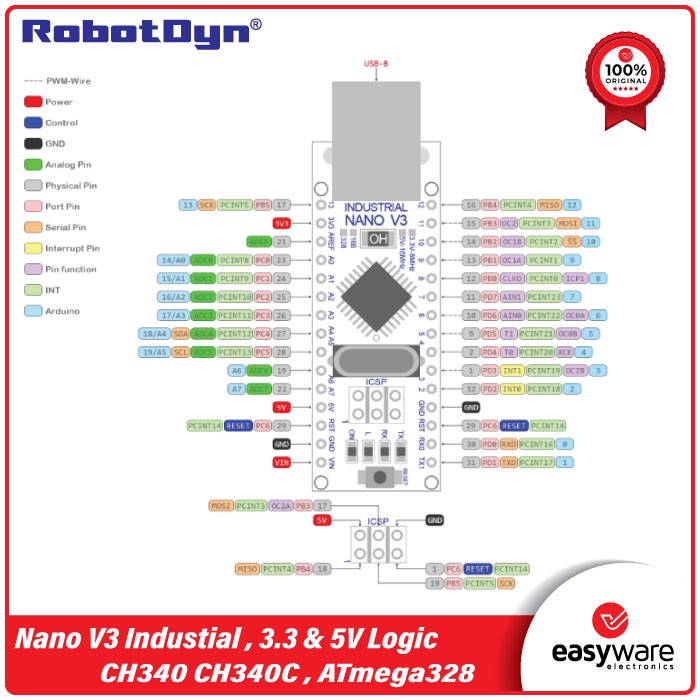

- PinOut V: 3.0
- USB: USB-B
- Clock Frequency: 8MHz/20MHz
- Operating Supply Voltage: 3.3V & 5V
- Digital I/O: 14(6-PWM)
- Analog I/O: 8
- Memory Size: 16Kb/32 Kb
- Data RAM Type/Size: 1Kb/2Kb
- Data ROM Type/Size: 512b/1Kb
- Interface Type: ISP
- Operating temperature: −40С°/+85С°
- Length×Width: 56,5×17mm


KELENGKAPAN :
- 1pcs NANO V3 Industrial, USB-B, 3.3V/5V logic
