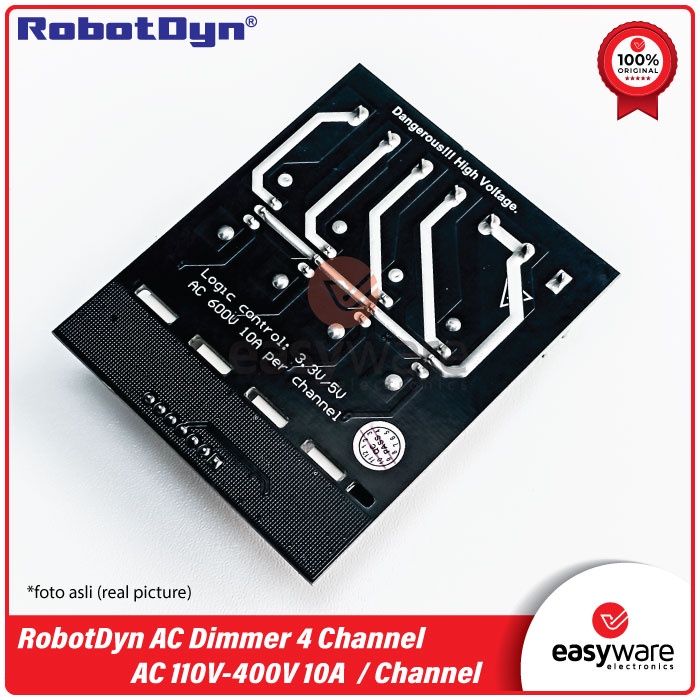

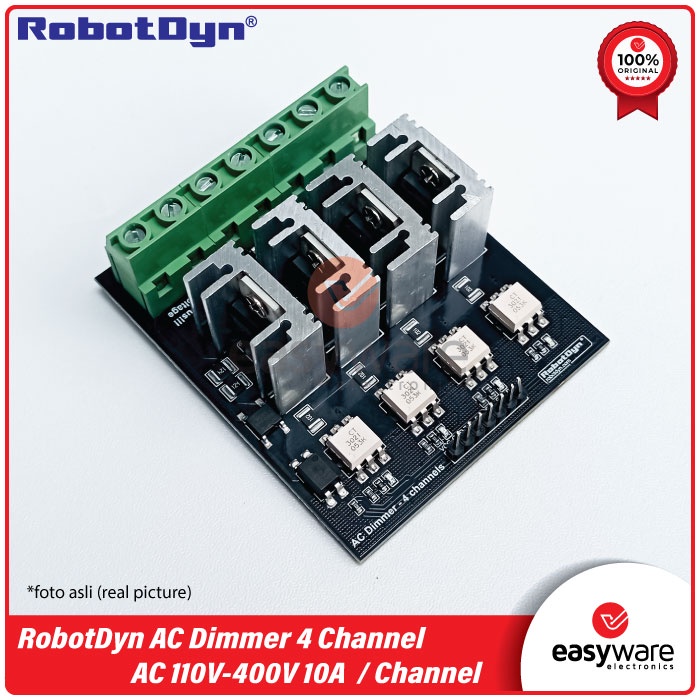

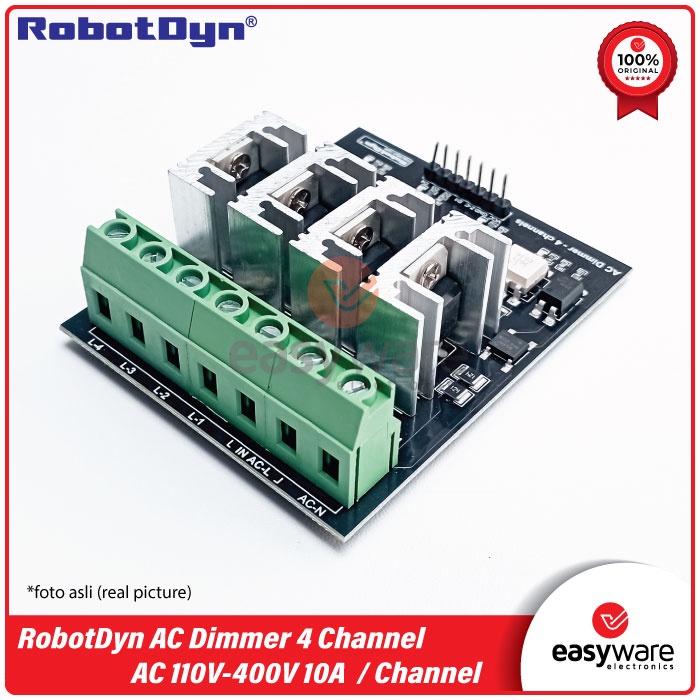

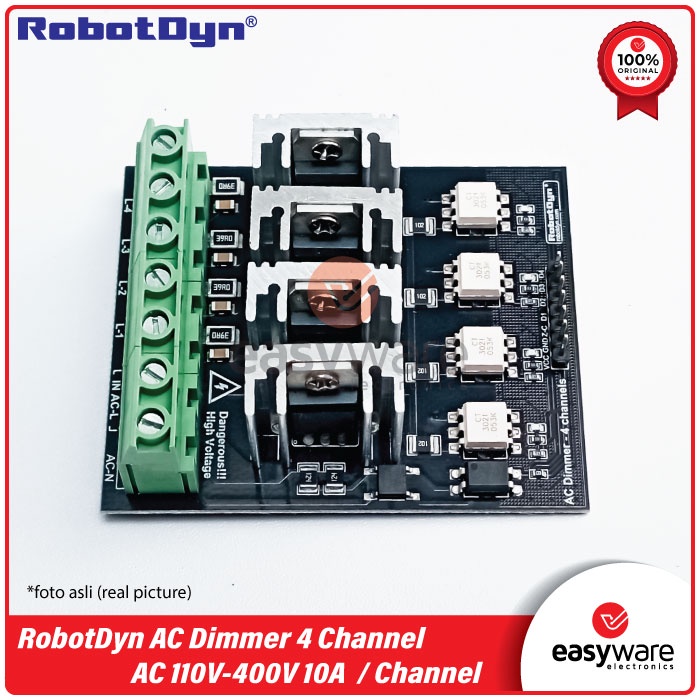

RobotDyn AC Dimmer Module 4 Channel AC 110V~400V 10A per channel

Detail RobotDyn AC Dimmer Module 4 Channel AC 110V~400V 10A per channel

**Selamat datang di EasyWare Electronics**
Mohon dibaca terlebih dahulu!
- Sebaiknya tanyakan stok terlebih dahulu
- Pengiriman via Gosend atau Grab sebaiknya dikomunikasikan terlebih dahulu
- Biasakan baca catatan toko dan deskripsi
- Kunjungi toko kami dan cek barang-barang keren lainnya

******BISMILLAH******
NEW VERSI AC LIGHT DIMMER MODULE

This is the good old AC Dimmer, but with 4 channels. This one also can control the alternating current voltage in the same way. It can be used with lamps, elements, fans, pumps, air cleaners etc. So it’s the same thing, but twice bigger.

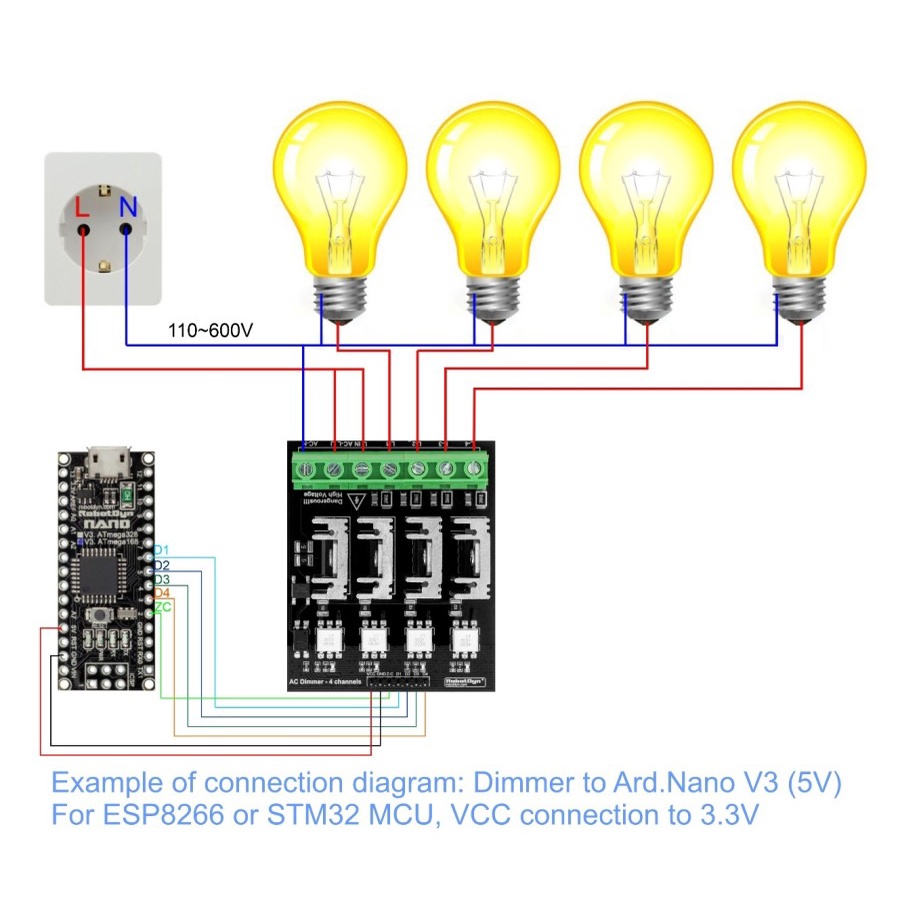

In the tutorial, you can see a simple example of what can be done with it.

Specification :
- Power :400V - 4x 10A
- AC frequency :50/60 Hz
- TRIAC :BTA16 - 600B
- Isolation :Optocoupler
- Logic level :3.3V/5V
- Zero point :Logic level
- Modulation (PWM with trigger) : logic level ON/OFF TRIAC
- Signal current : >10mA
-Environment : *For indoor and outdoor use
*Operating temperatures: -20°C to 80°C
- Operating humidity :Dry environment only
- ROHS3 : Compliant


Package :
1x RobotDyn AC Dimmer Module 4 Channel AC 110V~400V 10A per channel
