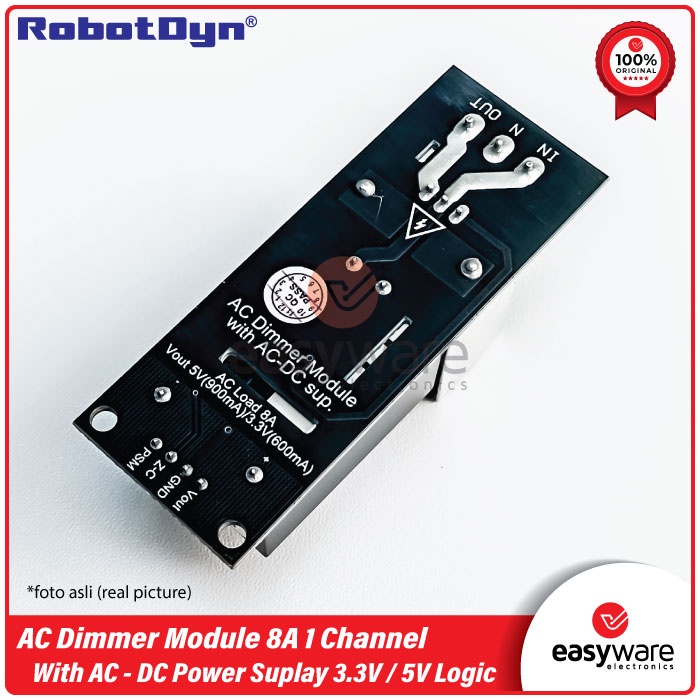

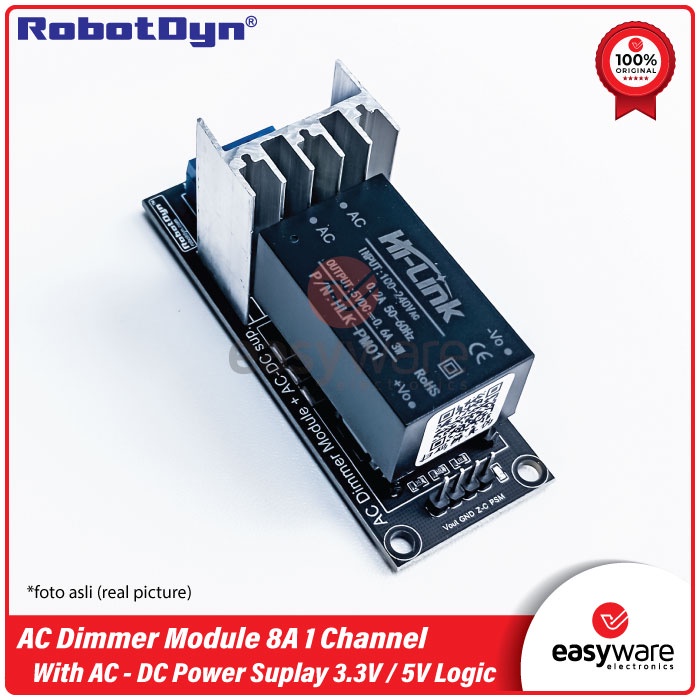

RobotDyn AC Dimmer 8A AC-DC power supply 1 CH 3.3V 5V AC 110~240V 8A

Detail RobotDyn AC Dimmer 8A AC-DC power supply 1 CH 3.3V 5V AC 110~240V 8A

**Selamat datang di EasyWare Electronics**
Mohon dibaca terlebih dahulu!
- Sebaiknya tanyakan stok terlebih dahulu
- Pengiriman via Gosend atau Grab sebaiknya dikomunikasikan terlebih dahulu
- Biasakan baca catatan toko dan deskripsi
- Kunjungi toko kami dan cek barang-barang keren lainnya

Relay module dari RobotDyn. Barang ini original 100% dan merupakan produk terbaru dari RobotDyn. Sebelum membeli, jangan lupa pilih variannya terlebih dahulu yah gan/sist❤️. Terima kasih

*****Bismillah*****

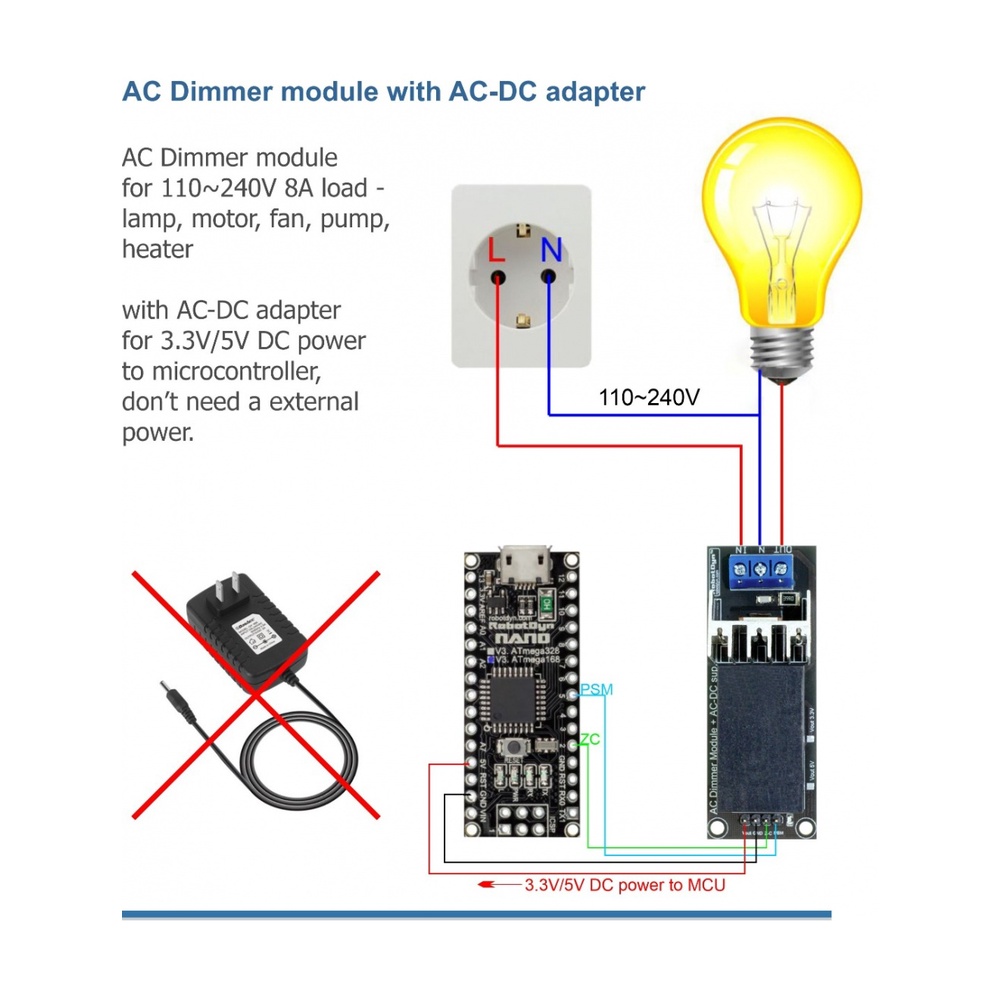

New Dimmer Module With AC-DC power adapter.

With this dimmer module don't need external power supplier for your project.
Do powering your microcontroller and circuit from this dimmer module.
For Volt out DC 3.3V (0.9A) or 5V(0.6A).
The AC Dimmer is designed to control the alternating current voltage, which can transfer current 8A and 110~240V.
In most cases, Dimmer is used to turning power ON/OFF for lamps or heating elements,
it can also be used in fans, pumps, air cleaners, e.t.c.


Specification
- Power :110~240V
- AC frequency :50/60 Hz
- TRIAC :BTA16 — 600B
- Isolation :Optocoupler
- Volt out :VDC 3.3V/5V
- Zero point :Logic level
- Modulation (DIM/PSM) :logic level ON/OFF TRIAC
- Signal current :>10mA

- Environment : *For indoor and outdoor use
*Operating temperatures: −20°C to 80°C
*Operating humidity: Dry environment only
- ROHS3 :Compliant

Package :
1x RobotDyn AC Dimmer 8A + AC-DC power supply 1 CH 3.3V 5V AC 110~240V 8A
