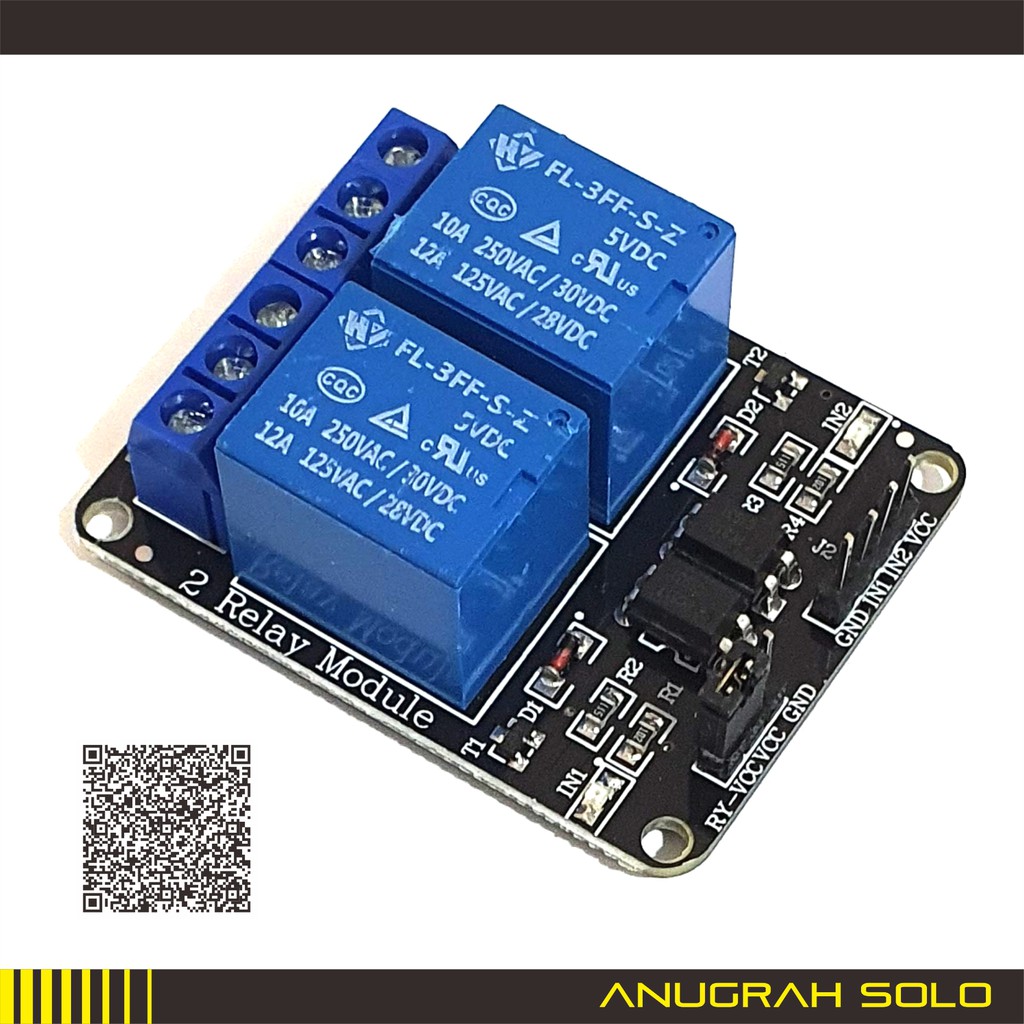

Detail RL-03 2 Channel 5V Relay Module (Lo-Level Trigger)

2 Channel Lo Trigger 5V Relay with OptoCoupler Protection
Microcontroller Development Board Accessories

Relay Capacity : AC 250V 10A / DC 30V 10A
Transistor Driven
Operating Voltage : 5V
Dimension : 4.5 x 4.6 x 1.8cm
Power Indicator : Green
Relay Indicator : Red

3-pin connector on the left
1, JD-VC supply voltage relay
2, VCC supply voltage module
3, GND Module ground

4-pin connector on the right
1, VCC 5V supply voltage module
2, 1N1-1N2 relay control interface connected to the microcontroller IO port
3, GND Module ground
