RKC REX C-100 Multi Sensor PT100 DIGITAL PID TEMPERATURE CONTROLLER

Detail RKC REX C-100 Multi Sensor PT100 DIGITAL PID TEMPERATURE CONTROLLER

RKC REX C 100FK02-M*AN merupakan upgrade tipe sebelumnya.

TIDAK ADA LABEL RKC

tpe ini memiliki filtur Multi sensor berupa
1.Input sensor default berupa RTD PT100
2.sensor thermocouple tipe K,J,R,S,B,E,N,T
3,Sensor arus dan hambatan

kita dapat merubah progam sensor pada unit controller sesuai kebutuhan yang di inginkan.

Ouput : Relay (jadi langsung dihubungkan ke beban karena sudah ada RELAY di unit controller)
maksimal :3A
Features :
Measuring accuracy : 0.5%FS
Cold-end compensation tolerance : 2 can be modified by software in 0~50
Resolution : 14 bit
Sampling cycle : 0.5 Sec
Power : AC 220V 50/60HZ
Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by : LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
output : relay
Alarm function output : 2 way
Proportional band (P) : 0~full range (ON/OFF control when set to 0)
Detective temperature range : 0 to 1820 (tergantung jesnis thermocouplenyan dan setting SLH / default SLH=400)
Insulation resistance : >50M ohm(500V DC)
Insulation resistance : 1500V AC/min
Insulation resistance : Power Consumption < 10 VA
Service environment : 0~50
Environment with no corrosive gas 30~85% RH

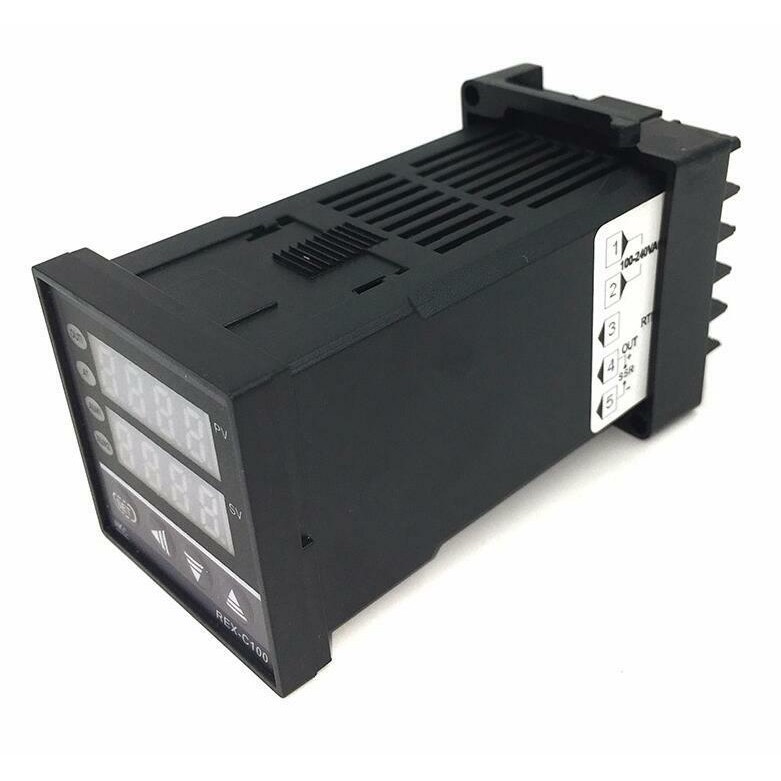

Gambar produk
