RIG YAESU FT 2900R 75 Watt Singleband VHF HT mobil mobile radio FT-2900R/E FT 2900 R E Cina Jepang

Detail RIG YAESU FT 2900R 75 Watt Singleband VHF HT mobil mobile radio FT-2900R/E FT 2900 R E Cina Jepang

GARANSI 1 TAHUN SERVIS

FREE DOUBLE BOX PACKING
QC SEBELUM KIRIM

FT-2900R menyediakan empat pilihan daya output: 75/25/10/5 Watts. Pemilihan listrik dapat disimpan ke dalam memori, memungkinkan Anda untuk menghemat daya ketika menggunakan repeater lokal yang kuat.

FITUR
- 75 Watts Power Output
- Large LCD Display
- Loud Audio with Internal Speaker
- Excellent Receiver Performance
- CTCSS and DCS Ene/Dee Built In
- Extensive Memory System
- Alpha-Numeric Channel Display
- WIRES Internet Linking Access Feature
- WX Channels with

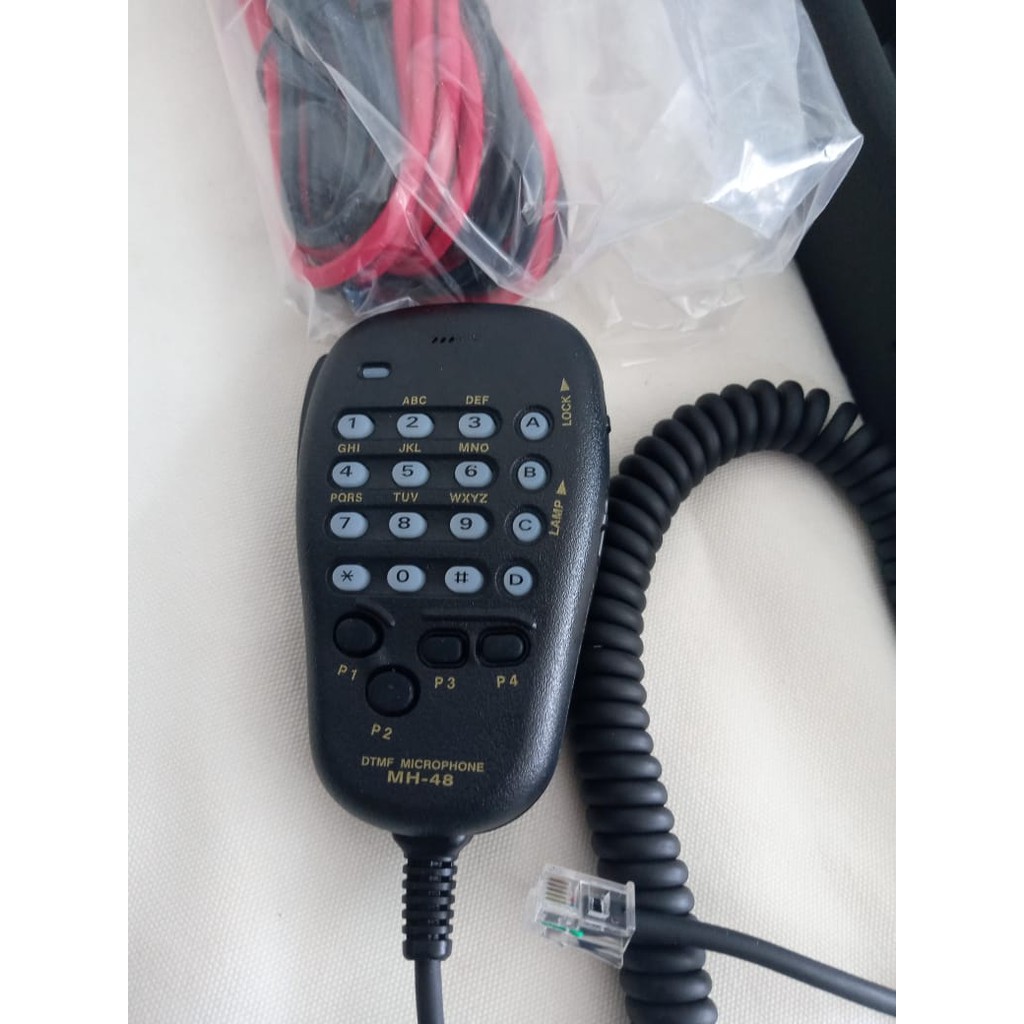

- MH-48A6J DTMF Direct Access Microphone

SPESIFIKASI

Frequency Range : 136-174 MHz.
Channel Steps: 5/10/12.5/15/20/25/50/100 kHz
Frequency Stability: Better than ±10 ppm (-20°C to +60°C)
Mode of Emission: F2D, F3E
Antenna Impedance: 50 Ohm, Unbalanced
Operating temp range: -4° to +140°F (-20°C to +60°C)
Supply Voltage: DC 13.8V ±10%, Negative Ground
Current Consumption (typical): 0
RX: Less than 0.7A (max. audio)
Less than 0.3A (Squelched)
TX: 15A (75W) / 9A (30W) / 5A (10W) / 4A (5W)
Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
Case Size: 6.3 x 2.0 x 7.3 inches (w/o knobs)
160(W) x 50(H) x 185(D) mm

TRANSMITTER
RF Power Output: 75/30/10/5 Watts
Modulation Type: Variable Reactance
Maximum Deviation: ±5 kHz / ±2.5 kHz
Spurious Radiation: Better than -60dB
Microphone Impedance: 2 K Ohm

RECEIVER
Circuit Type: Double-Conversion Superheterodyne
Intermediate Frequencies: 21.7 MHz and 450 kHz
Sensitivity (12dB SINAD): Better than 0.4uV
Selectivity Wide: (-6/-60 dB): 12 kHz/28 kHz
Selectivity Narrow: (-6/-60 dB): 9 kHz/22 kHz
IF Rejection: Better than 70 dB
Image Rejection: Better than 70 dB
Maximum AF Output: 3 W into 4 Ohm @ 10% THD

Gambar produk
