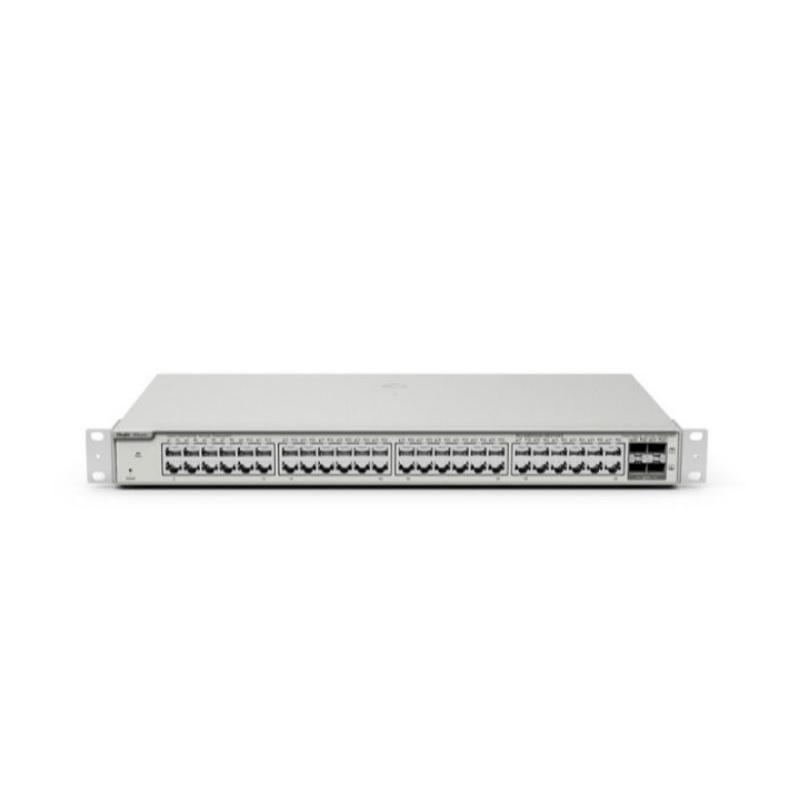

RG-NBS3200-48GT4XS Series L2 10G Uplink Cloud Managed Switch

Detail RG-NBS3200-48GT4XS Series L2 10G Uplink Cloud Managed Switch

Ruijie RG-NBS3200 Series Switches are the next-generation high-performance, high-security and multi-service Layer 2 Ethernet switches with gigabit and 10-gigabit ports. Adopting an efficient hardware architecture design and equipped with Ruijie's OpenWRT operating system, this switch series provides larger MAC address table size, faster hardware processing performance, and more convenient operating experience.

RG-NBS3200 series provides gigabit and 10-gigabit uplink ports. Every switch of this series offers 4 fixed 10G fiber ports with high-performance uplink capability.

RG-NBS3200 series switches provide comprehensive end-to-end QoS as well as flexible and rich security settings for small and medium-sized networks at an extremely high price-performance ratio to meet the needs of high-speed, secure and smart enterprise networks.

Fixed ports : 48 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply
Switching capacity : 336Gbps
Packet forwarding rate : 132Mpps
MAC address : Support static MAC address, MAC address filtering
MAC address table size : 16K
Number of VLANs : 4094
Link aggregation : Support
Port mirroring : Many-to-one mirroring
Spanning tree : STP, RSTP
LLDP : Support
IP routing : N/A
ACL : IP standard ACL, MAC extended ACL, IP extended ACL, Port ACL for Layer 2 ports (physical port / AP)
QoS : Port-based speed limit (ingress/egress)
Security : Port protection, Hardware CPP
Management : Web management, Ruijie Cloud or Ruijie Cloud app management
DHCP : DHCP snooping
EEE : Support
Dimensions : 440×267.5×43.6mm
PoE : 24/48 Base-T ports (support PoE and PoE+), Maximum PoE / PoE+ output power per switch: 370W, Maximum output power per port: 30W
Operating temperature: 0 c ~ 50 c
Storage temperature: -40 c ~ 70 c
Operating humidity: 10% ~ 90% RH
Storage humidity: 5% ~ 90% RH
