Detail RFID RC522 Reader Writer Module Card Keychain RC-522 MFRC-522 Arduino
RFID RC522 Reader Writer Module Card Keychain RC-522 MFRC-522 Arduino
*** Minimal Pemesanan Adalah Rp.20.000, Belum Termasuk Ongkir (Bisa di gabung dengan barang lain). ***
Barang sama/sesuai dengan foto diatas.
Spesifikasi:
- Operating current :13-26mA/DC 3.3V
- Idle current :10-13mA/DC 3.3V
- Sleep current: 80uA
- Peak current: 30mA
- Operating Frequency: 13.56MHz
- Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire
- Product physical characteristics: size: 40mm60mm
- Environmental Operating temperature: -20-80 degrees Celsius
- Environmental Storage Temperature: -40-85 degrees Celsius
- Relative humidity: relative humidity 5% -95%

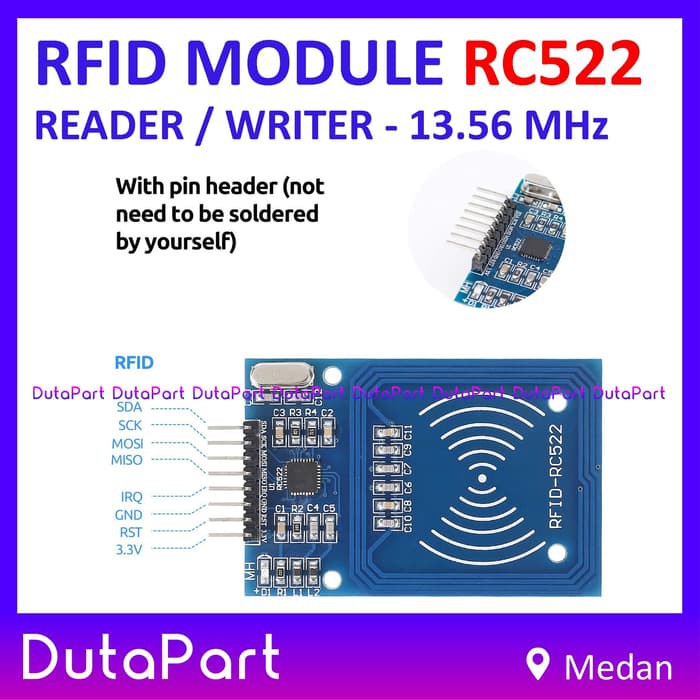

Module interfaces SPI Parameter
- Data transfer rate: maximum 10Mbit/s

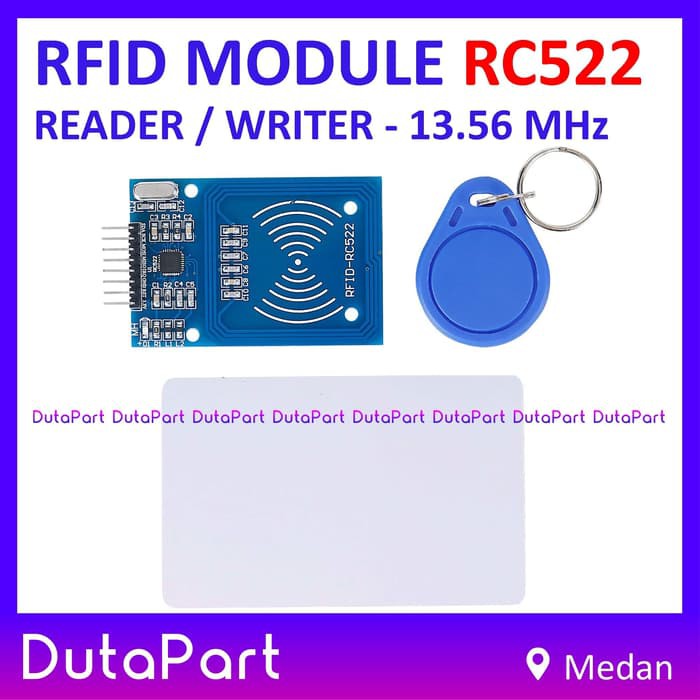

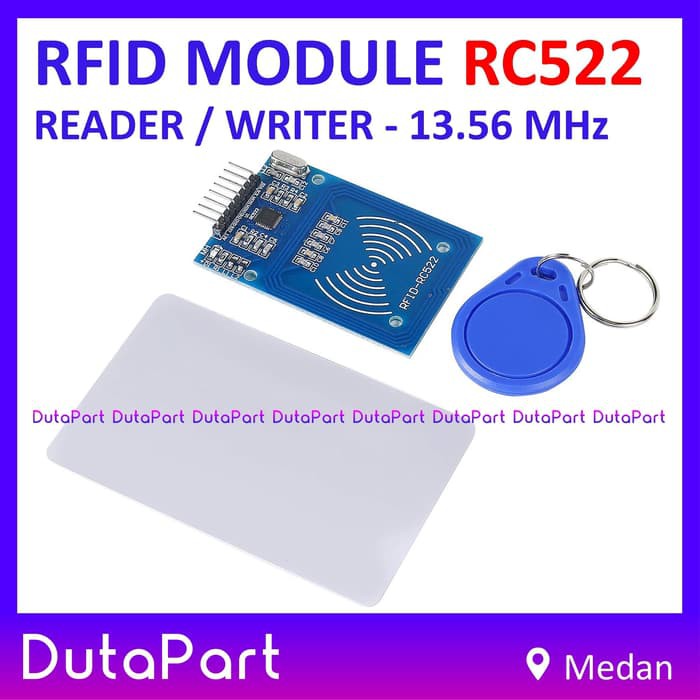

Isi Paket:
- RFID-RC522 module = 1
- Tag RFID S50 kartu putih = 1
- Tag RFID S50 gantungan kunci = 1
Untuk info seputar hal teknis dan lainnya, Hubungi kami
Gambar produk
