RFID Kit MFRC-522 RC522 IC Card Reader Writer Module for Arduino

Komputer & Aksesoris > Aksesoris Desktop & Laptop > USB HUB & Card Reader > RFID Kit MFRC-522 RC522 IC Card Reader Writer Module for Arduino
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail RFID Kit MFRC-522 RC522 IC Card Reader Writer Module for Arduino

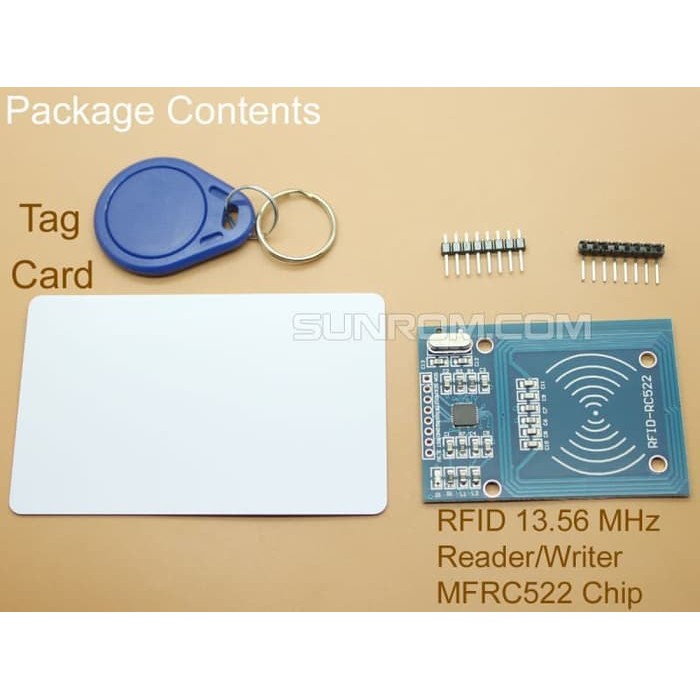

modul terdiri dari:
1 x Modul RFID MF-RC522 Reader/Writer
1 x S50 Standard Blank Card
1 x S50 Keychain
1 x 8 pin header lurus
1 x 8 pin header bengkok


Modul MFRC-522 dapat diaplikasikan untuk banyak project DIY contohnya: Pengunci pintu otomatis, Palang pintu (portal) otomatis, Mesin absensi kehadiran, dsb

Operating current :13-26mA/DC 3.3V
Idle current :10-13mA/DC 3.3V
Sleep current: <80uA
Peak current: <30mA
Operating Frequency: 13.56MHz
Supported card types: For mifare1 S50,For mifare1 S70 For Ultralight, For Pro, For DESFire
Product physical characteristics: size: 40mm×60mm
Environmental Operating temperature: -20-80 degrees Celsius
Environmental Storage Temperature: -40-85 degrees Celsius
Relative humidity: relative humidity 5% -95%
Module interfaces SPI Parameter
Data transfer rate: maximum 10Mbit/s
