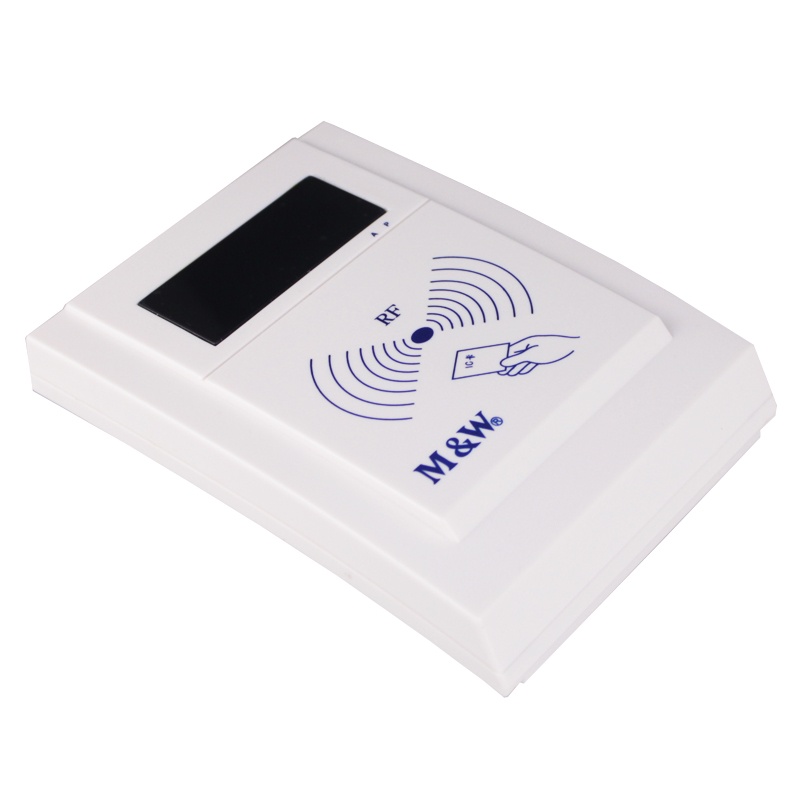

RF IC Card Reader RF-35LT Read&Write

Detail RF IC Card Reader RF-35LT Read&Write

SmartCard RFID IC Card Reader RF-35LT Read&Write merupakan reader / pembaca yang berguna untuk membaca data di smart card / kartu pintar yang dapat terhubung ke PC dengan teknologi 13,56 MHz (RFID). Sesuai dengan standar ISO/IEC18092 untuk Near Field Communication (NFC), yang bisa mensupport tidak hanya dengan teknologi Kartu Mifare® dan ISO 14443 A dan B, namun juga mensupport untuk semua jenis tag SmartCard RFID IC Card Reader RF-35LT Read&Write yang cocok dengan kedua komunikasi yaitu CCID dan PC / SC. Dengan interface USB yang bisa plug and paly dengan sistem operasi windows sehingga dapat terintegritas dengan perangkat maupun aplikasi yang berbeda.Perangkat USB yang plug-and-play memungkinkan interoperabilitas dengan perangkat dan aplikasi yang berbeda.

SmartCard RFID IC Card Reader RF-35LT Read&Write sangat cocok di aplikasikan di berbagi keperluan yang berupa verifikasi identitas pribadi dan sistem online transaksi micro payment. Termasuk akses kontrol, e-payment, e-tiket untuk acara dan transit massa, pengumpulan tarif tol jalan, otentikasi jaringan dan juga bisa akses parkir.



Feature：

Equipment Specifications：143 x 110 x 28 mm
Digital display: can display card number, time, date and other digital information. Can also expand the LCD.
Powerful features: In addition to the original contactless cards features, with a large deck to support the common-contact IC card or a dual interface card.
Expandable features: can extra a small deck according to users need .

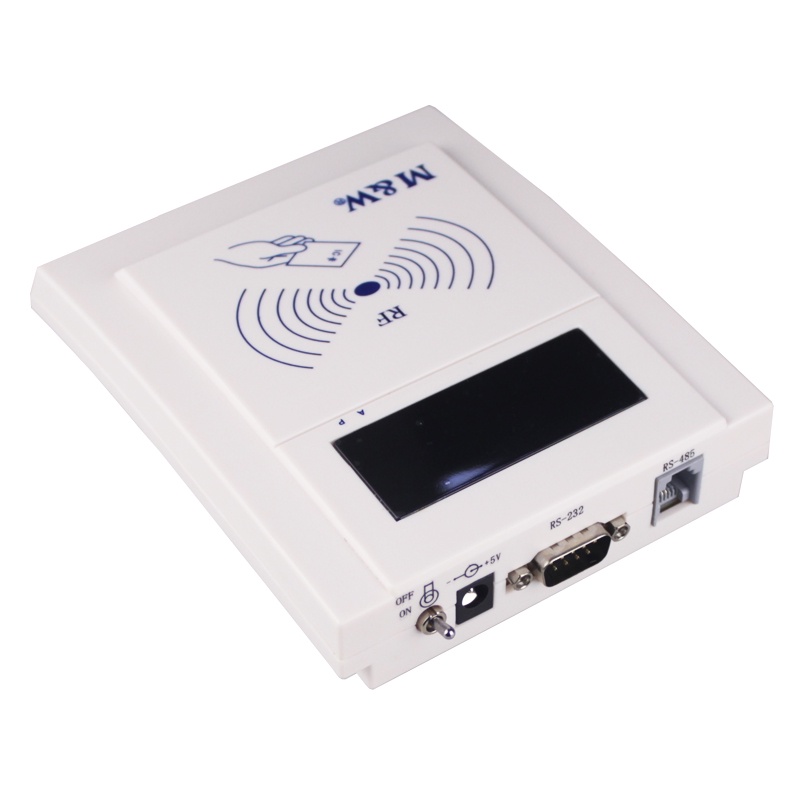

Communication Interface：RS232 interface、USB interface、RS485 interface optional.

Function Description：

It uses the encryption algorithms for the data transmission between reader and radio frequency card. It uses two-way authentication betweem cards and equipment, automatic detection of communication errors.
Anti-collision mechanism, can handle more than one radio card
With full function of reading and writing
Real-time clock display
With buzzer
Can support the operation of contact IC card, easily to plug,meet the read and write of the dual interface card.
Provides a wealth of secondary development interface functions and examples

System Support：

Windows 9X 、 NT、2000、XP、WinMe etc.

Support Card Type：

1.Can read and write the RF Card which meet the ISO14443 standard : PHILIPS company TYPEA MF1ICS50 (1K card), MF1ICS70 (4K card), MF1ICL10, MIFAREPRO, MIFAREDES, MF Ultralight, DESFire, SIEMENS company TYPEA, Shanghai Hua Hongs
2.The CPU card and SAM card which consistent with T = 0 and T = 1 protocol.

3.Can support contact IC card.：SLE4442、SLE4428、AT24CXX、AT88SC102( card type can be expanded)。

Typical applications：

This is a combo reading and writing device of contact and contactless.Can be used:

1.The applications which contact and contactless card use at the same time

2. The transition of products from contact card to contactless card.

3 .Can be used as dual-interface card reader device,
