Detail REX C-100 Temperature Controller OUT RELAY TANPA THERMOCOUPLE Thermostat Digital 220V
REX-C100 220V Digital PID Temperature Controller Kit (0 ~ 1820 derajat Celcius tergantung tergantung jenis thermocouplenya dan setting SL1 dan SLH)
Brand : tergantung stok yg ada
Ouput : Relay (jadi langsung dihubungkan ke beban karena sudah ada RELAY di unit controller) maksimal :3A Features : Measuring accuracy : 0.5%FS Cold-end compensation tolerance : 2 can be modified by software in 0~50 Resolution : 14 bit Sampling cycle : 0.5 Sec Power : AC 220V 50/60HZ Process value (PV), Setting value (SV) Output, alarm and self-tuning can be indicated by : LED PIN control (including ON/OFF, step-type PID and continuous PID) Self-tuning control output : relay Alarm function output : 2 way Proportional band (P) : 0~full range (ON/OFF control when set to 0) Detective temperature range : 0 to 1820 (tergantung jesnis thermocouplenyan dan setting SLH / default SLH=400) Insulation resistance : >50M ohm(500V DC) Insulation resistance : 1500V AC/min Insulation resistance : Power Consumption < 10 VA Service environment : 0~50 Environment with no corrosive gas 30~85% RH
Package included : 1 x PID Temperature Controller
Hasil Test : Dengan Thermocouple 1400 Derajat Celcius di tungku keramik dapat mendeteksi

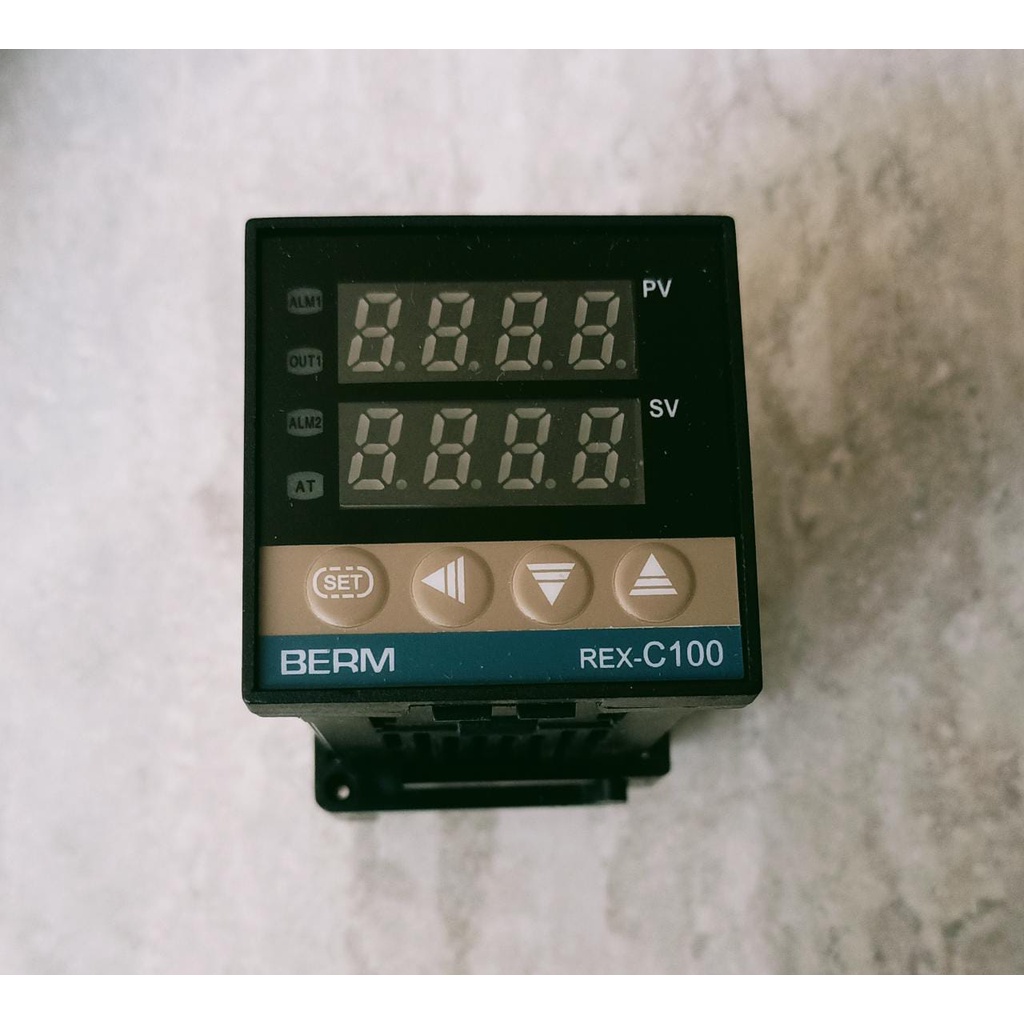

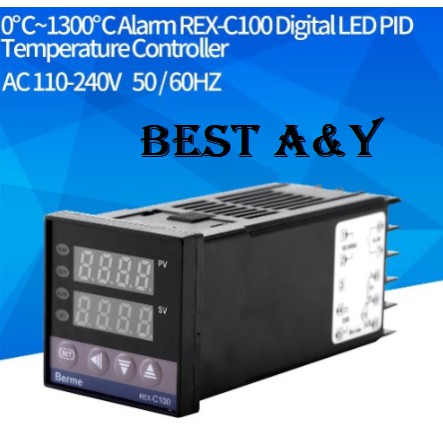

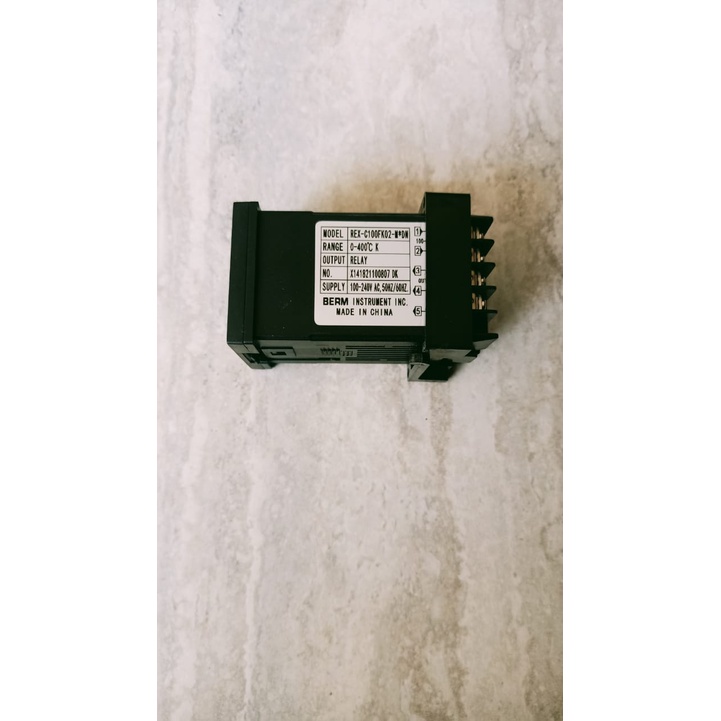

Gambar produk
