REX C-100 DIGITAL PID TEMPERATURE CONTROLLER (Out Relay)

Detail REX C-100 DIGITAL PID TEMPERATURE CONTROLLER (Out Relay)

Description :
REX-C100 220V Digital PID Temperature Controller Kit (0 ~ 1820 derajat Celcius tergantung tergantung jesnis thermocouplenya dan setting SL1 dan SLH)

Ouput : Relay (jadi langsung dihubungkan ke beban karena sudah ada RELAY di unit controller)
maksimal :3A
Features :
Measuring accuracy : 0.5%FS
Cold-end compensation tolerance : 2 can be modified by software in 0~50
Resolution : 14 bit
Sampling cycle : 0.5 Sec
Power : AC 220V 50/60HZ
Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by : LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
output : relay
Alarm function output : 2 way
Proportional band (P) : 0~full range (ON/OFF control when set to 0)
Detective temperature range : 0 to 1820 (tergantung jesnis thermocouplenyan dan setting SLH / default SLH=400)
Insulation resistance : >50M ohm(500V DC)
Insulation resistance : 1500V AC/min
Insulation resistance : Power Consumption < 10 VA
Service environment : 0~50
Environment with no corrosive gas 30~85% RH

K Thermocouple Probe Cable
Length : 2M
Sensor diameter : 4.5mm
Temperature rang : 0-400 (bisa diganti dengan thermocouple yang lain / yang rangenya lebih tinggi dan disertai dengan setting SLH)
Internal Insulation : Fiberglass
External Shielding : Insulated Shielding


Package included :
1 x PID Temperature Controller
1 x K Type Probe Sensor

Hasil Test :
Dengan Thermocouple 1400 Derajat Celcius di tungku keramik dapat mendeteksi

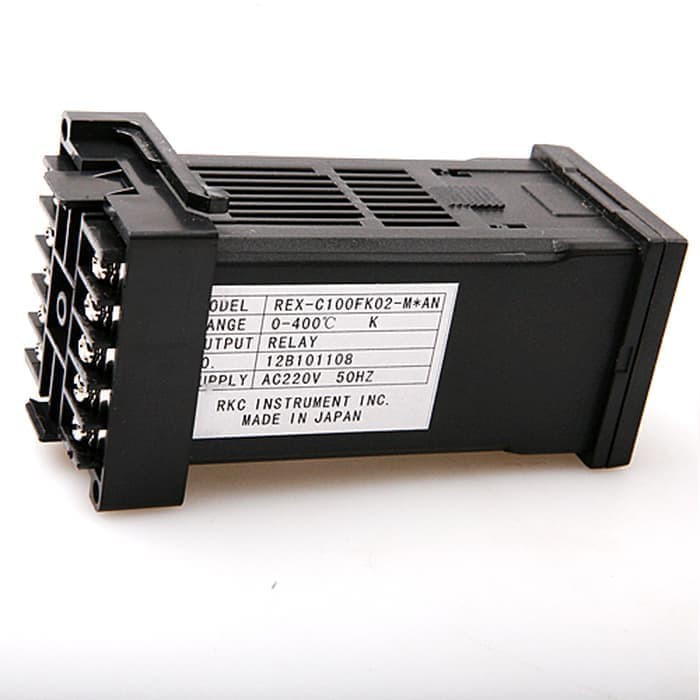

Gambar produk
