Repeater TP-Link CPE510 5GHz 300Mbps 13dBI Outdoor Original

Detail Repeater TP-Link CPE510 5GHz 300Mbps 13dBI Outdoor Original

TP-Link CPE510 5GHz 300Mbps 13dBI Outdoor CPE 510 Tplink

Built-in 13dBi 2 x 2 dual-terpolarisasi directional MIMO antena, Daya transmisi dapat disesuaikan dari 0 27dBm/500mw, Tingkat sistem optimasi selama lebih dari 15km transmisi nirkabel jarak jauh, TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) teknologimeningkatkan kinerja produk throughput, kapasitas dan latensi kinerja, idealuntuk aplikasi PTMP, Sistem manajemen terpusat-kontrol Pharos, AP / klien / Repeater / AP Router / modus operasi AP Client Router (gumpalan), Pasif PoE Adapter mendukung hingga 60 meter (200 kaki) Power over Ethernetpenyebaran dan memungkinkan perangkat diatur ulang jarak jauh.

Spesifikasi :
- Processor : Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
- Tampilan :

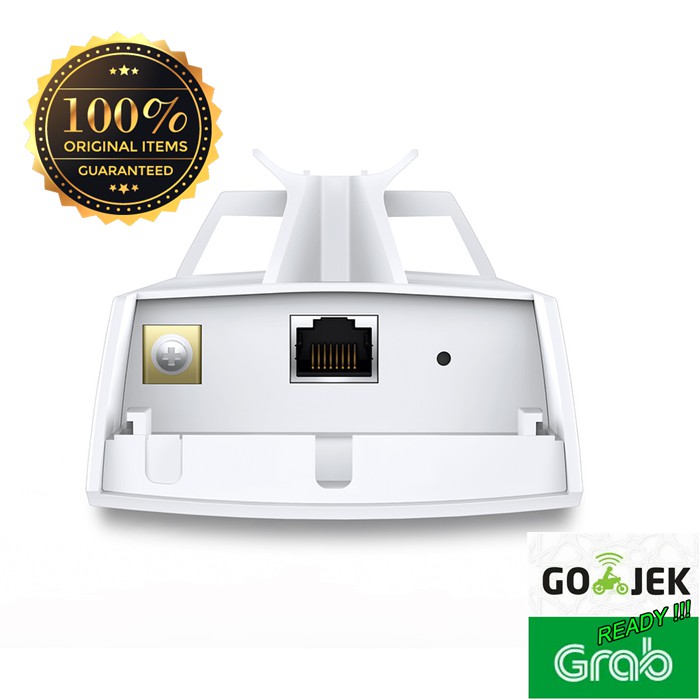

1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button
- Catu Daya : Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins), Voltage range: 16-27VDC
- Dimensi ( W x D x H ) : 224 x 79 x 60 mm
- Tipe Antena :
Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45 (H-Plane) / 30 (E-Plane)
Note: For more details, please refer to datasheet
- Memory : 64MB DDR2 RAM, 8MB Flash
- Proteksi : 15KV ESD Protection, 6000V Lightning Protection
- Konsumsi Daya : 13 Watts Max, Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
- Enclosure :
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
- Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled)
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
- Button : Remote Reset Button
- Isi Paket : Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord

Gambar produk
