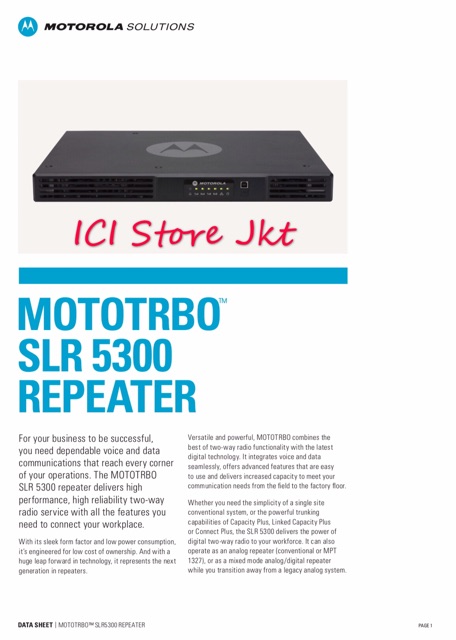

Repeater Motorola MOTOTRBO SLR 5300

Detail Repeater Motorola MOTOTRBO SLR 5300

Repeater Motorola MOTOTRBO SLR 5300 Repeater terbaru dari motorola dengan frek Analog dan Digital. Repeater ini memiliki body yang ramping dan konsumsi daya yang rendah, Seri MOTOTRBO SLR 5300 ini merupakan generasi berikutnya dalam repeater sebagai landasan sistem radio dua arah MOTOTRBO profesional.
Apakah Anda memerlukan kesederhanaan sistem konvensional satu situs, atau kemampuan trunking yang kuat dari Capacity Plus, Linked Capacity Plus atau Connect Plus, Seri SLR 5300 memberikan kekuatan radio dua arah digital ke tenaga kerja Anda.

SLR 5300 GENERAL SPECIFICATIONS
RECEIVER
Frequency Range VHF 136-174 MHz
UHF 350-400 MHz
UHF 400-470 MHz
( Frek harus memilih VHF , UHF Low atau UHF High )
Channel Spacing 25*/ 12.5 kHz
Frequency Stability 0.5 ppm
Sensitivity, 12dB SINAD 0.22 uV
Sensitivity, 5% BER 0.22 uV
Selectivity (TIA603D), 25* / 12.5 kHz 83 / 55 dB 80 / 55 dB
Selectivity (TIA603), 25* / 12.5 kHz 83 / 68 dB 80 / 68 dB
Selectivity (ETSI), 25*/ 12.5 kHz 70 / 63 dB
Intermodulation Rejection (TIA603D/ETSI) 82 / 73 dB
Spurious Rejection (TIA603D/ETSI) 95 / 90 dB
Audio Distortion 1 GHz
Modulation Fidelity (4FSK) FSK Error 5%, FSK Magnitude 1%
Audio Response TIA603D
Audio Distortion faisal*roni82@gmail*com / mitrageologi@gmail

Features :
- Analog / Digital mode (2chn dalam 1 frek)
- Dual Capacity Direct Mode
- Digital Mobile Radio Standards compliant
- Alpha-Numeric Display
- IP54 Rated

Spesifikasi
Frequency Range VHF 136-174 MHz
UHF 350-400 MHz
UHF 400-470 MHz
( Frek harus memilih VHF , UHF Low atau UHF High )
Channel Capacity : 64 Channel
RF Output Power : 1-50W
Dimensions : 44 x 483 x 370mm
Weight : 8.6kg (19.lbs)
Input Voltage (AC) : 100-240Vac, 47-63Hz
- Current (Standby) : 0.18/0.25A
- Current (Transmitting) : 1.5/0.9A
Input Voltage (DC) : 11.0-14.4Vdc
- Current (Standby) : 0.7A
- Current (Transmitting) : 0.5A
Operating Temperature Range : -22 to +140 F (-30 to +60C)
Battery Charger Capacity : 12V, 3A

Receiver :
Channel Spacing : 12.5/20/25kHz
Frequency Stability : +/- 0.5ppm
Sensitivity :
- 12dB SINAD : 0.22uV
- 5% BER : 0.22uV
Selectivity :
- (TIA603D) 12.5/20/25kHz : 55/80/80dB
- (TIA603) 12.5/20/25kHz : 68/80/80dB
- (ETSI) 12.5/20/25kHz : 63/70/70dB
Intermodulation : 82/73dB
Spurious Rejection : 95/90dB
Audio Distortion : 1%
Hum and Noise : -45dB(12.5kHz), -45dB(20kHz), -50dB(25kHz)

Transmitter :
RF Output Power : 1-50W
Max Duty Cycle : 100%
Channel Spacing : 12.5/20/25kHz
Frequency Stability : +/- 0.5ppm
Intermodulation Attenuation : 40dB
Adjacent Channel Power :
- (TIA603D) 25/12.5kHz : 62/78/78dB
- (ETSI) 25/12.5kHz : 62/78/78dB
Conducted Spurious Emission : 36dBm 1GHz, -30dBM 1GHz
Audio Distortion : 1%
Hum & Noise : -45dB (12.5KHz), -45dB (20KHz), -45dB (25KHz)
Rated System Deviation : 12.5/20/25kHz : +/-2.5 / +/-4.0 / +/-5.0kHz

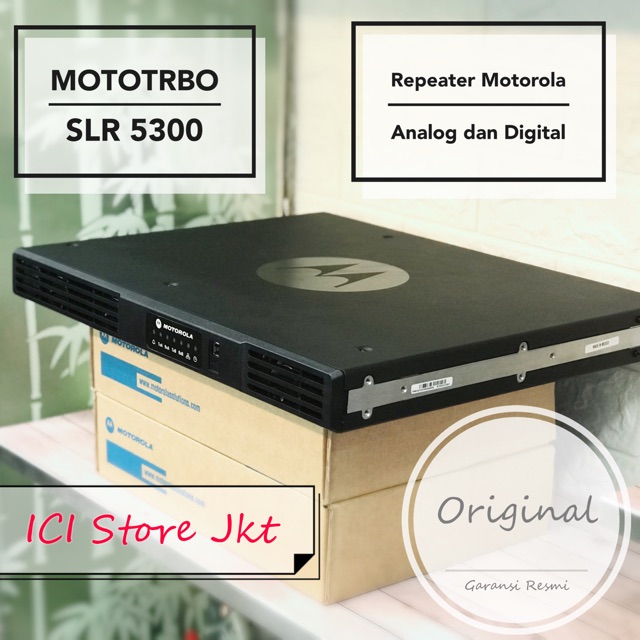

Gambar produk
