REPEATER ICOM IC-FR5200H FR5200H NEW GARANSI RESMI

Detail REPEATER ICOM IC-FR5200H FR5200H NEW GARANSI RESMI

PERINGATAN!!
* sudah dicek kondisi fisik bagus (tidak pecah, rusak, patah, dll). Kerusakan yg terjadi dalam perjalanan (Ekspedisi) bukan tanggung jawab penjual.
*packaging dan berubah sewaktu waktu tanpa ada pemberitahuan terlebih dahulu , packaging menyesuaikan supplier


SPECIFICATIONS

IC-FR5200H
GENERAL

Frequency coverage 136–174 MHz
Number of channels Max. 32 channels
Channel spacing 6.25/12.5/20/25 kHz
Type of emission 16K0F3E, 14K0F3E, 8K50F3E,
4K00F1E/F1D/F3E
Frequency stability ±0.5 ppm
Antenna impedance 50 Ω (Type-N × 2)
Operating temperature range –30˚C to +60˚C; –22˚F to +140˚F
Power supply voltage 13.2 V DC
Current drain TX 50 W
(at 13.6 V DC) RX Max. audio
Stand-by
11 A
1.2 A
550 mA typ. (at LCD backlight OFF)
Dimensions (W × H × D) 483 × 88 × 360 mm
Weight 10 kg (approx.)

TRANSMITTER
Output power 50 W (adjustable to 5 W)
100% duty cycle (at 20–35˚C, 24 hours)
Max. frequency deviation ±5.0/±4.0/±2.5 kHz (W/M/N)
Spurious emissions 0.25 μW (≤1 GHz), 1.0 μW (>1 GHz)
Audio harmonic distortion 1% typ. (40% deviation)
Intermodulation attenuation 40 dB min.
Digital FSK error 5% Max.
Microphone impedance 600 Ω (8-pin modular)

RECEIVER
Sensitivity Analog
Digital
–10 dBμV max. (12 dB SINAD)
0 dBμV emf. max. (1% BER)
Adjacent channel (W/M/N)
selectivity (Digital)
86/83/75 dB typ.
67 dB typ
Spurious (W/M/N)
response (Digital)
80 dB
90 dBμV emf
Intermodulation (W/M/N)
rejection (Digital)
75/75/73 dB typ.
76 dBμV emf typ.
Audio output power 3.5 W min. (5% distortion, 4 Ω load)
External speaker connector 2-conductor 3.5 (d) mm (1⁄8ʺ)/4 Ω

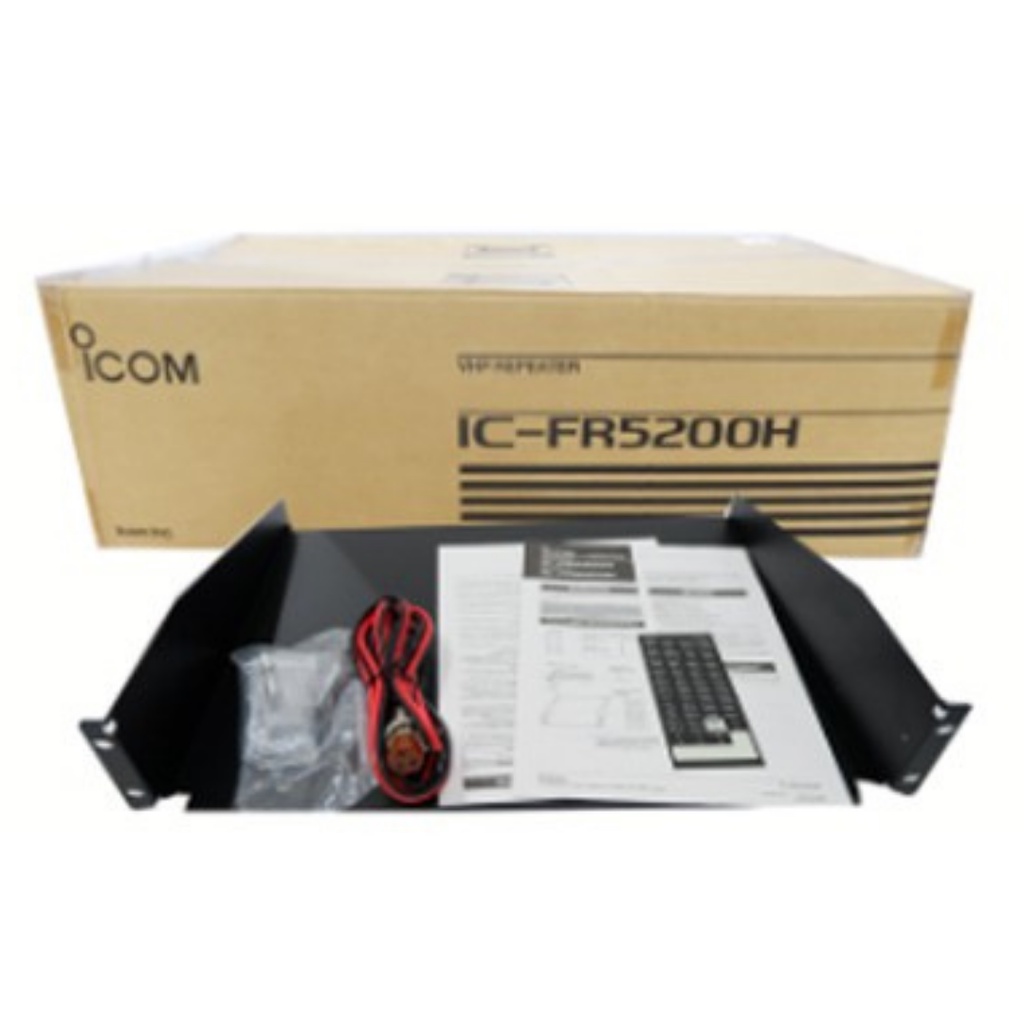

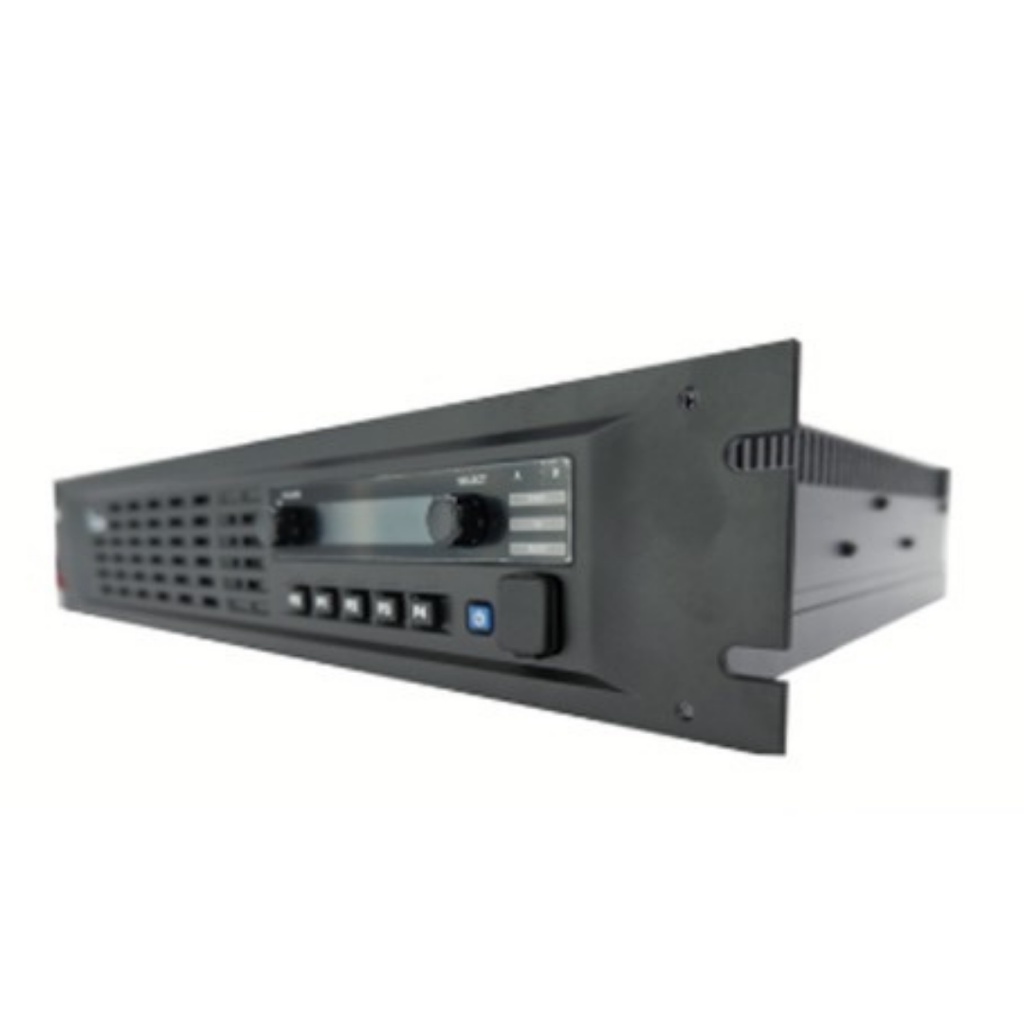

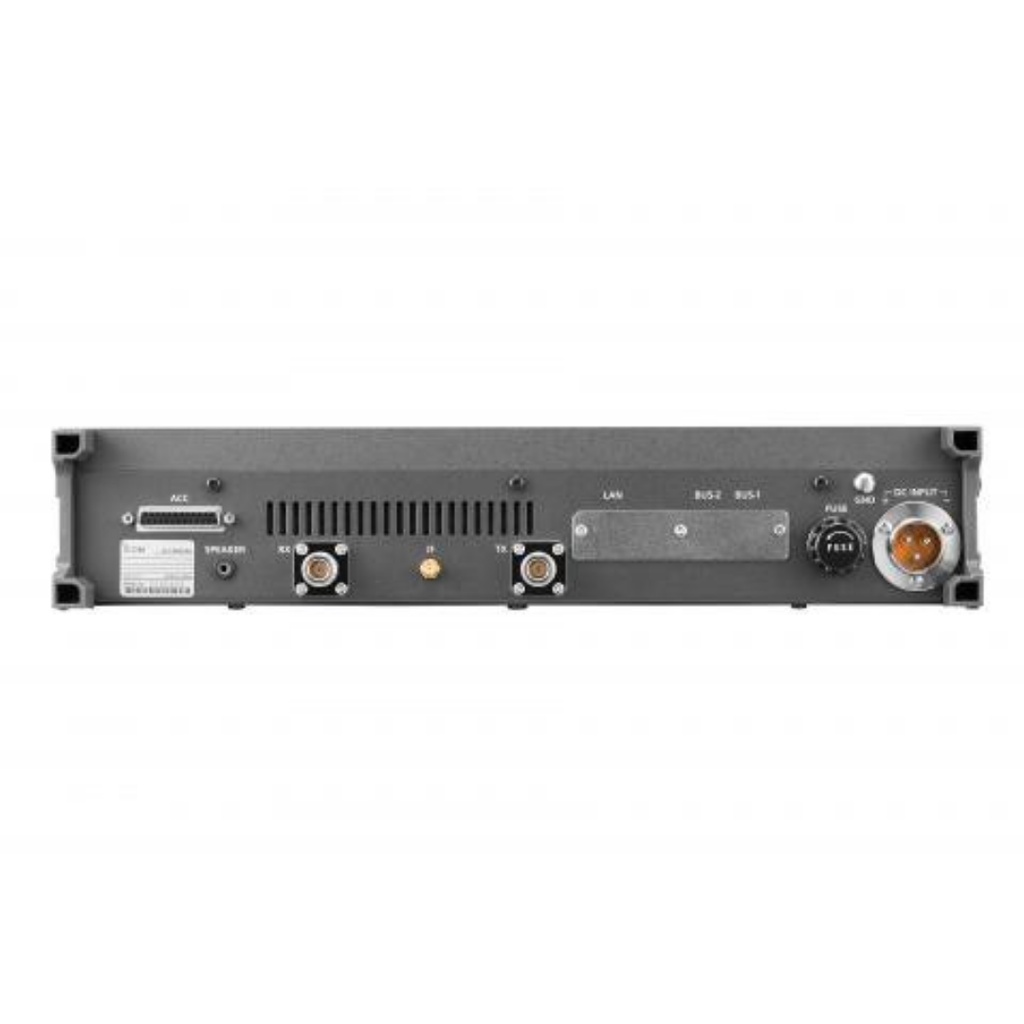

Gambar produk
