REMOTE 4 CHANNEL RF TRANSMITTER AND RECEIVER 433MHz 5V CONTROL ARDUINO

Detail REMOTE 4 CHANNEL RF TRANSMITTER AND RECEIVER 433MHz 5V CONTROL ARDUINO

P/N : NET-0028
============

Hallo..!! Slamat datang lagi di lapak kita gan, Kali ini kita punya lagi barang yang keren ini, setelah sekian lama menghilang di lapak kita, hehe,,

dengan 4 CHANNEL RF REMOTE TRANSMITTER AND RECEIVER memungkinkan kita untuk mengontrol empat perangkat dari jarak jauh. Remote Control RF menyediakan 4 output digital yang dapat disambungkan ke relai dan mengontrol peralatan rumah, lampu, motor, lampu, perangkat robot, mobil RC, komputer, dll.

Remote ini bisa menjangkau hingga 50m -100m loh. dengan satu tombol dan satu output tentu sangat mudah dalam memodifikasi si remote ini baik dengan menggunakan mikrokontroler maupun dengan IC tambahan lain.

Specifications :
=================================
4 Momentary Outputs
========================
- 50-100m Transmission Range
- Rock-solid oscillator provides reliable operation
- Valid transmission LED status through VT connection
- High noise immunity
- Standard header connection (breadboard compatible)
- Selection of custom address codes allows to operate more than one unit in the same area or controlling the same receiver with multiple remotes

RF Transmitter Specifications
========================
- Voltage Supply: 12V (Included 27A Alkaline Battery)
- Transmission Frequency: 433MHz
- Transmission Range: 15m
- Dimensions: 62 mm x 38 mm x 14 mm

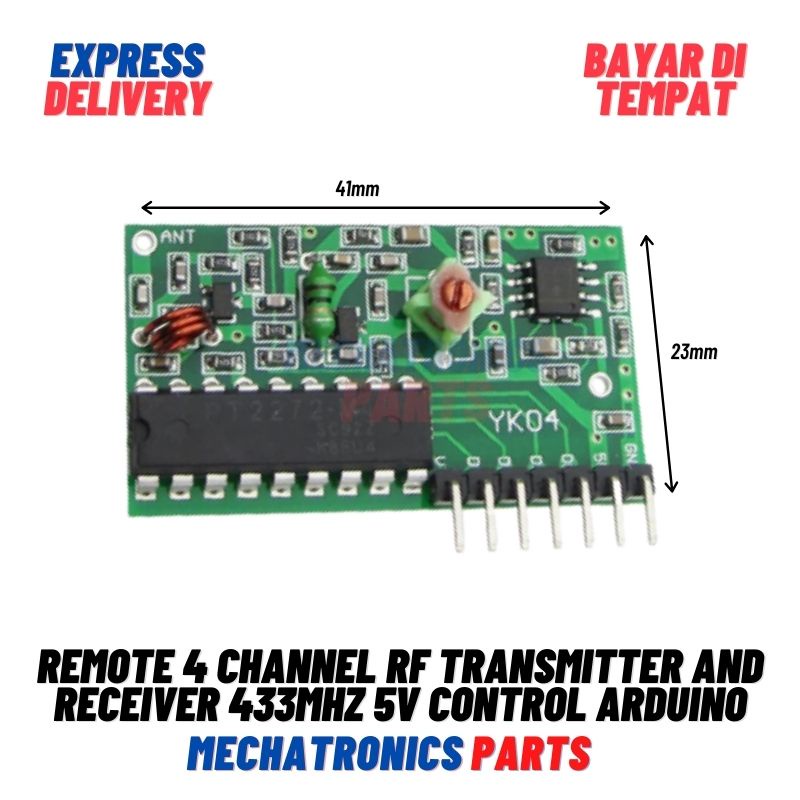

- RF Receiver Specifications

Voltage Supply: 5V
========================
- Transmission Frequency: 433MHz
- Output Mode: Momentary
- Power Consumption: 5 mA
- Receiving Sensitivity: -101 dbm
- Output PINs: GND, 5V, D0, D1, D2, D3, VT (Status LED)
- Dimensions: 41 mm x 22 mm x 6 mm

Aplikasi :
=================================
- Kontrol peralatan elektronik
- Smart Home
- Remote kunci
- Robotic/RC

Paket :

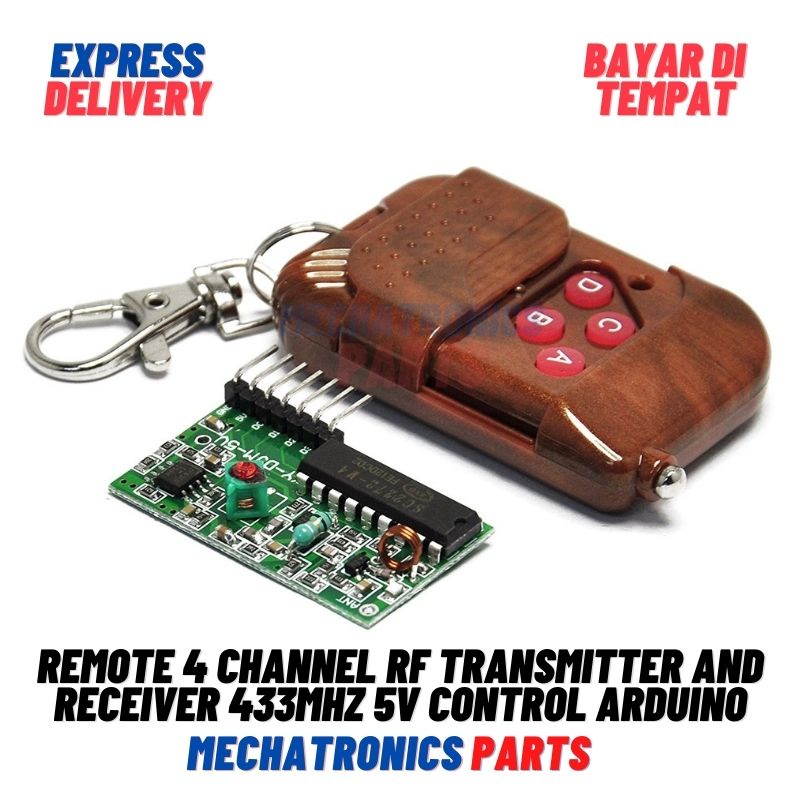

1x1 Pcs RF Transmitter (remote) module pemancar (include batrai dan gantungan)
1x1 4 Momentary Outputs (modul penerima)

Gambar produk
